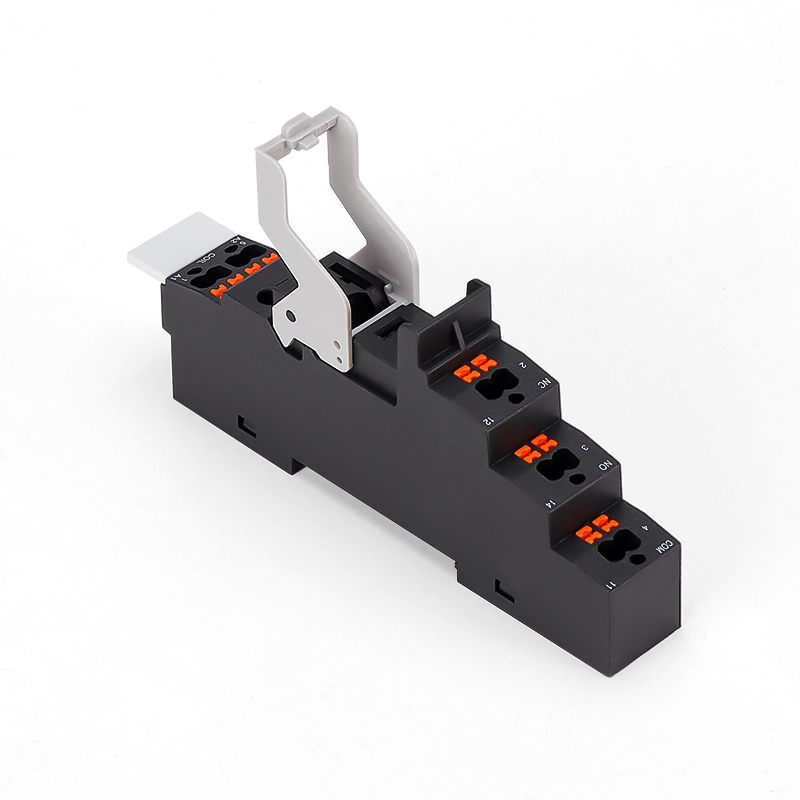

RG05P / RG08P / RGZE05P / RGZE08P
Push-in relay sockets
Screwless spring-terminal sockets for RJ1S/RJ2S and compatible relay families, mounted on a 35 mm DIN rail. ZE versions include an accessory module interface; the RG05P and RG08P versions are the basic sockets without that interface.
Request a quote ↗TECHNICAL DATA / RG05P / RG08P / RGZE05P / RGZE08P
Specifications & selection.
- Push-in wiring with a tool-operated release.
- Separate coil and contact terminal areas.
- Replace the plug-in relay without removing the installed wires.
- Optional indication and surge-suppression modules on ZE versions.
| Model | Pins | Listed socket rating | Module interface | Compatible relay families |
|---|---|---|---|---|
| RG05P | 5 | 10 A / 250 VAC | No | RJ1S(E), RXG11, GK |
| RG08P | 8 | 8 A / 250 VAC | No | RJ2S(E), RXG21 |
| RGZE05P | 5 | 10 A / 250 VAC | Yes | RJ1S(E), RXG11, GK |
| RGZE08P | 8 | 5 A / 250 VAC | Yes | RJ2S(E), RXG21 |
| Field | Meaning |
|---|---|
| R | Relay socket |
| G | RJ / RXG / compatible GK family |
| ZE | Accessory module interface; omitted on basic versions |
| 05 / 08 | 5 / 8 pins |
| P | Spring push-in terminals |
| Model | Application |
|---|---|
| RZM033VL | Indication + surge suppression; DC 5–24 V |
| RZM480VL | Indication + surge suppression; AC 110–220 V |
| Parameter | Specification |
|---|---|
| Mounting | 35 mm DIN rail |
| Wiring | Screwless spring push-in |
| Coil terminals | A1 / A2; follow printed diagram |
| Overall dimensions and weight | Not specified in the source table; request latest drawing |
| Conductor size and stripping length | Use product marking and technical document; no universal value supplied |
Selection & installation notes
- RG08P and RGZE08P have different ratings in the source image (8 A and 5 A respectively). Do not transfer one rating to the other.
- Socket ratings are not a guarantee of the complete relay assembly rating; check both socket and relay.
- Check the supply type before fitting an RZM module. AC and DC modules are not interchangeable.
- Insert the prepared conductor fully and verify retention with a light pull. Press the release with the appropriate tool before withdrawing the wire.
- Confirm the rail latch and relay retention hook are engaged. Verify the exact pin layout and marking for the selected relay.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
English relay product selection brochure · YZ26I10
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
