RLS-05K

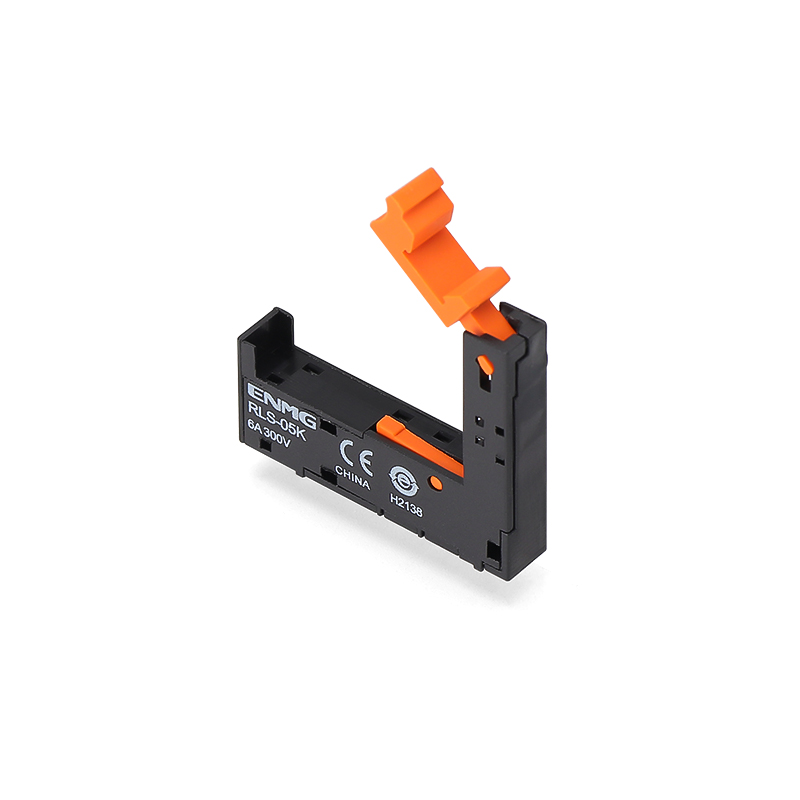

Ultra-slim PCB relay socket with release lever
5-pin PCB socket for replaceable slim interface relays, with an orange locking and release lever.
Request a quote ↗TECHNICAL DATA / RLS-05K
Specifications & selection.
- 6.3 mm thickness stated in the official page.
- 5-pin interface for compatible SPDT relays and SSL solid-state variants.
- 6 A / 300 V marking visible on the product.
| Parameter | Value |
|---|---|
| Rated current / voltage | 6 A / 300 VAC in the technical text |
| Pins / mounting | 5 / through-hole PCB soldering |
| Housing | Black nylon (PA) |
| Outline in text | 33.5 × 6.3 × 31.8 mm; excludes raised lever |
| Mass | Not specified |
| Relay | Coil |
|---|---|
| G41F-5-ZS | 5 VDC |
| G41F-6-ZS | 6 VDC |
| G41F-9-ZS | 9 VDC |
| G41F-12-ZS | 12 VDC |
| G41F-18-ZS | 18 VDC |
| G41F-24-ZS | 24 VDC |
| G41F-48-ZS | 48 VDC |
| G41F-60-ZS | 60 VDC |
| Model | Output rating / type |
|---|---|
| SSL2A2032 | 2 A / 240 VAC; zero-cross |
| SSL2A2132 | 2 A / 240 VAC; random |
| SSL2D6132 | 2 A / 60 VDC |
| SSL6D6132 | 6 A / 60 VDC |
Selection & installation notes
- The page derives pin metal/plating and ambient limits from compatible relays rather than a socket specification. These are not confirmed socket ratings and are not transferred here.
- The outline is given in the page text, but a complete dimensioned PCB footprint is not included in the retrieved image. Request the drilling drawing and socket soldering limits before manufacture.
- Isolate circuits, raise the release lever before removing a relay and let solder joints cool before inserting it. Match polarity, pinout and the lower of relay/socket load limits.
- The source claims CE conformity; obtain the applicable declaration rather than treating a printed mark as a certification document.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG relays — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
