RPHE11S

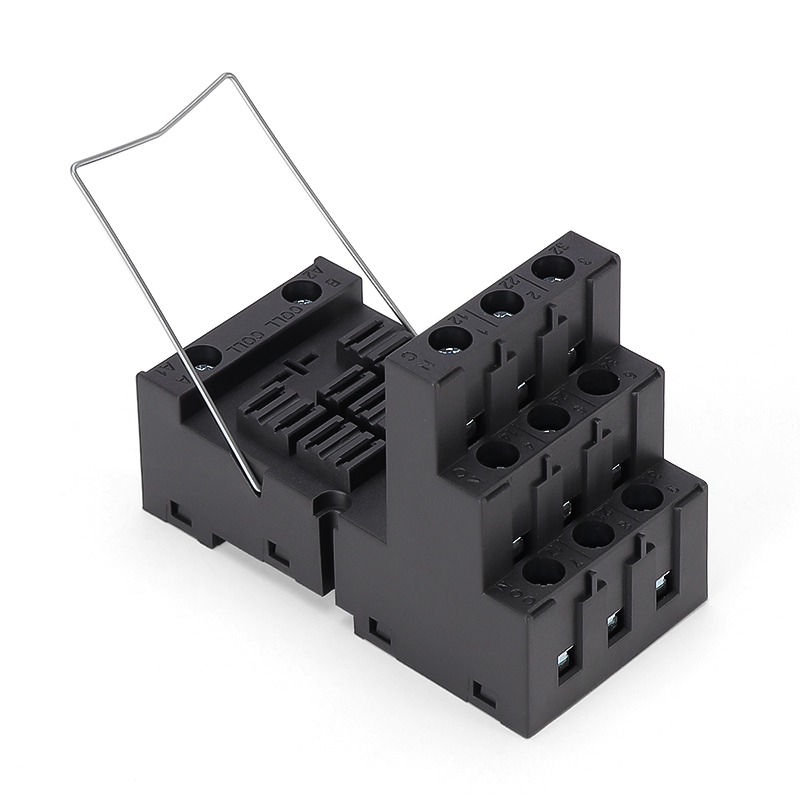

40 A cage-clamp socket for G38F relays
An 11-pin power-relay socket with separated coil and contact wiring, for compatible G38F three-pole changeover relays.
Request a quote ↗TECHNICAL DATA / RPHE11S
Specifications & selection.
- 40 A socket rating; 500 V rated insulation voltage.
- 6.35 mm relay blade interface and cage-clamp field terminals.
- DIN-rail or surface mounting with retaining clip.
| Relay | Arrangement | Mounting variant in source |
|---|---|---|
| G38F-3C | 3PDT | Base flange |
| G38F-S3C | 3PDT | Plug-in |
| Parameter | Published specification |
|---|---|
| Pins / arrangement | 11; separated 3+1 coil/contact structure |
| Rated insulation voltage Ui / current Ie | 500 V / 40 A |
| Relay / field terminals | #250 6.35 mm blades / M4-14 cage-clamp screws |
| Solid conductors | 0.5–4 mm²; source also gives 20–11 AWG—confirm equivalent |
| Stranded conductors | 0.5–3.5 mm² with ferrules; source also gives 20–12 AWG |
| Dielectric / insulation | ≥3000 VAC, 50/60 Hz, 1 minute / 100 MΩ at 500 VDC |
| Housing / clip | PA66-G30, V-0 material designation / stainless spring wire |
| Protection / mounting | IP20 / 35 mm DIN rail or surface screws |
| Operation / storage | −45 to +70 °C / −45 to +120 °C |
| Humidity | ≤90% RH; no condensation or icing |
| Outline | W49.5 × H95.5 × D70.6 mm, ±0.5 mm |
| Fixing holes | 45 mm pitch, Ø3.6 mm |
| Assembled depth with G38F | 97 mm in source |
| Mass / terminal torque | Not supplied |
Selection & installation notes
- Confirm the exact G38F footprint. Rear-lug G38F-B3C and sealed PCB G38F-Y3C variants are excluded by the source.
- Socket insulation voltage and current are not relay switching ratings. Confirm conductor ampacity, load type and all-pole thermal conditions for a 40 A application.
- Wire-size unit equivalents in the text need confirmation. Obtain the terminal torque and current drawing before installation.
- Seat the relay fully, engage the retaining clip and verify coil/contact numbering. Isolate power before wiring or relay replacement.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
