ENMG / RELAY SOCKETS
RPLE08S / RPLE11S

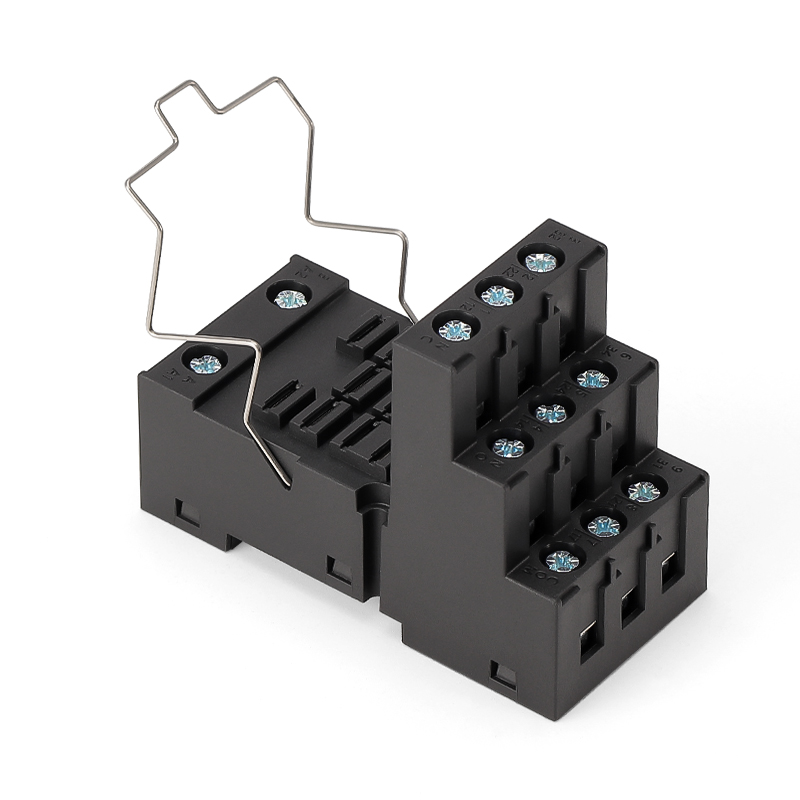

Separated cage-terminal sockets for G30F power relays
DIN-rail and surface-mount sockets with separated coil and load wiring levels, cage terminals and a spring-wire retaining hook.
Request a quote ↗TECHNICAL DATA / RPLE08S / RPLE11S
Specifications & selection.
- 8-pin DPDT and 11-pin 3PDT socket options.
- 6.35 mm #250 relay blade interface.
- IP20 designation and PA66-G30 flame-retardant nylon housing in the official text.
| Socket | Pins | Basic / LED / DC diode / AC varistor |
|---|---|---|
| RPLE08S | 8 | G30F-2Z-A / -2ZL-A / -2ZLD-A / -2ZLV-A |
| RPLE11S | 11 | G30F-3Z-A / -3ZL-A / -3ZLD-A / -3ZLV-A |
| Parameter | Specification |
|---|---|
| Insulation voltage Ui | 500 V; not a relay switching rating |
| Current | Text: Ie 40 A; RPLE11S image: 30 A / 500 VAC — confirm |
| Dielectric withstand | ≥3000 VAC, 50/60 Hz, 1 minute |
| Insulation resistance | 100 MΩ at 500 VDC |
| Wire-side terminal | M4-14 cage screw terminal |
| Solid conductor | 20–5 AWG / 0.5–16 mm² in source |
| Stranded conductor | 20–7 AWG / 0.5–10 mm² with ferrule |
| Mounting | 35 mm DIN or surface screws |
| Operation / storage | −45 to +70 °C / −45 to +120 °C; no condensation or icing |
| Humidity | ≤90% RH |
| Dimensions / mass / torque | Not supplied |
Selection & installation notes
- The 30 A image and 40 A prose conflict is unresolved. Confirm the ordered socket current; the compatible relay is separately listed at 30 A, 250 VAC / 30 VDC.
- The source first says socket heights differ and later says outlines are identical. Obtain the exact 8-pin or 11-pin drawing instead of assuming interchangeability.
- Do not use G30F-P PCB or G30F-K mounting-ear models in this socket. Align all blades and engage the retaining hook after isolating supplies.
- Fit ferrules to stranded conductors, observe the exact terminal torque and allow adequate bend radius for large conductors. Verify AWG and metric conductor acceptance for the supplied terminals.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
