ENMG / RELAY SOCKETS
RPME08S / RPME11S

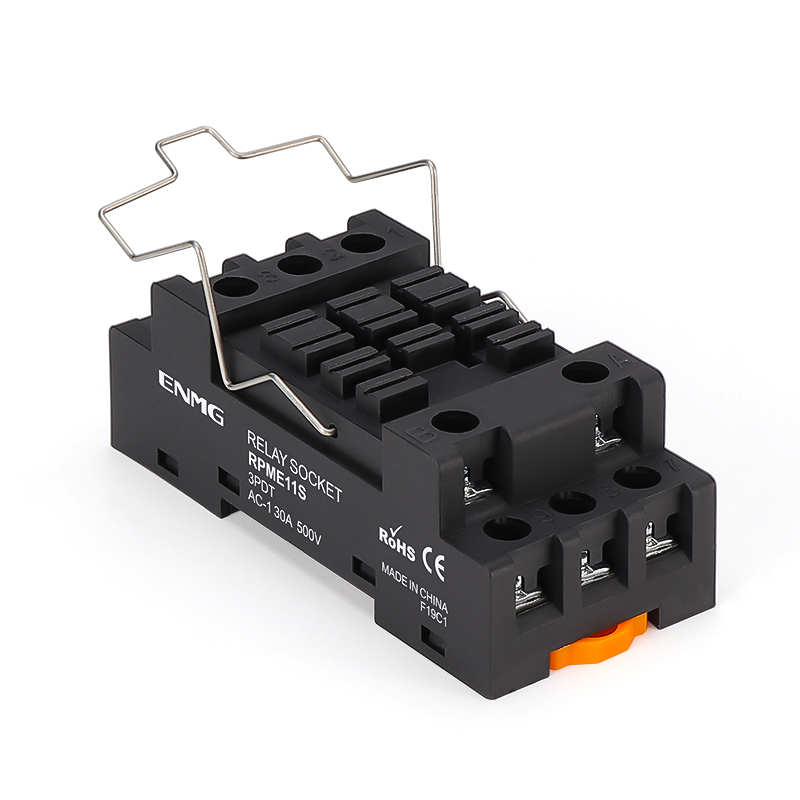

Barrier-terminal sockets for G30F power relays
Touch-protected barrier-terminal relay sockets for G30F plug-in power relays, with DIN-rail and panel mounting.
Request a quote ↗TECHNICAL DATA / RPME08S / RPME11S
Specifications & selection.
- 8-pin DPDT and 11-pin 3PDT versions.
- 30 A socket current rating and 500 V rated insulation voltage.
- Stainless-steel spring-wire retaining clip.
| Socket | Pins | Compatible plug-in models |
|---|---|---|
| RPME08S | 8 | G30F-2Z-A / -2ZL-A / -2ZLD-A / -2ZLV-A |
| RPME11S | 11 | G30F-3Z-A / -3ZL-A / -3ZLD-A / -3ZLV-A |
| Parameter | Published specification |
|---|---|
| Rated insulation voltage Ui / current Ie | 500 V / 30 A |
| Relay interface | #250, 6.35 mm blades |
| Field terminals | M4-14 barrier screw terminals |
| Conductor sizes in text | Solid 0.5–2.5 mm²; stranded 0.5–1.5 mm² with ferrules; confirm AWG equivalents |
| Dielectric strength | ≥3000 VAC, 50/60 Hz, 1 minute |
| Insulation resistance | 100 MΩ at 500 VDC |
| Housing | PA66-G30 reinforced nylon; V-0 material designation in source |
| Protection | IP20 |
| Mounting | 35 mm DIN rail or surface screws |
| Operation / storage | −45 to +70 °C / −45 to +120 °C |
| Humidity | ≤90% RH; no condensation or icing |
| Outline in dimensional table | W39 × H88 × D31.5 mm, ±0.5 mm; includes DIN clip projection |
| Mass / tightening torque | Not supplied |
Selection & installation notes
- The introductory text says the two sockets differ in height, while the dimensional section says their outlines are identical. Obtain a confirmed drawing for the chosen pin count.
- Ui is an insulation rating, not an allowable load-switching voltage. Confirm relay, socket, conductor ampacity and thermal derating together.
- G30F PCB (-P) and rear-lug (-K) variants are not the plug-in versions specified for these sockets. Match relay and coil suppression option.
- Align the relay blades, seat fully and secure the clip. Isolate power before removal; tighten field connections to the manufacturer-specified torque.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG relays — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
