ENMG / RELAY SOCKETS

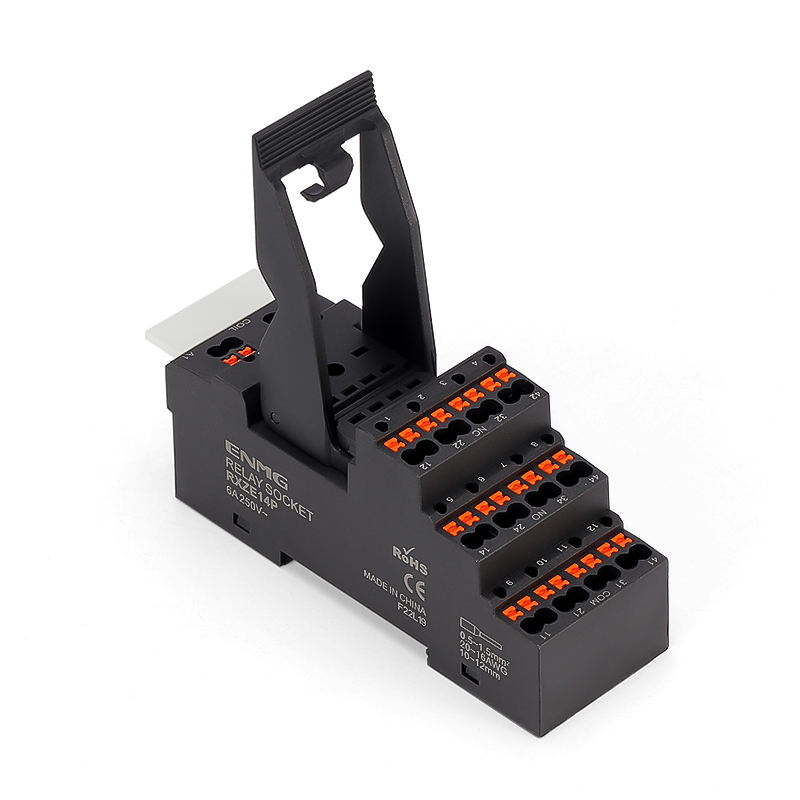

RPZE08P / RXZE08P / RXZE14P
Push-in sockets for intermediate relays
Spring-terminal DIN-rail sockets for compatible intermediate relays, with a plug-in interface for optional coil indication and suppression.
Request a quote ↗TECHNICAL DATA / RPZE08P / RXZE08P / RXZE14P
Specifications & selection.
- 8-pin and 14-pin versions.
- Separate coil and contact terminal groups.
- Relay replacement without removing field wiring.
| Model | Pins | Compatibility in text | Rating in image |
|---|---|---|---|
| RXZE08P | 8 | GMY2 / RXM2 / SM / GM | 12 A / 250 VAC |
| RXZE14P | 14 | GMY4 / RXM4 | 6 A / 250 VAC |
| RPZE08P | 8 | GLY2 | Image uses RPZ08P: 10 A / 300 VAC; confirm equivalence |
| Parameter | Published specification |
|---|---|
| Mounting | 35 mm DIN rail |
| Terminals | Push-in spring with tool-operated wire release |
| RZM033VL accessory | 5–24 VDC coil indication / suppression |
| RZM480VL accessory | 110–220 VAC coil indication / suppression |
| Dimensions / mass | Not supplied |
| Wire range / strip length / ambient | Confirm from exact socket markings and datasheet |
Selection & installation notes
- The page title includes RPZE11P, but its selection tables provide no specification for that model. No 11-pin order option is inferred.
- The image uses RPZ08P while the text uses RPZE08P. Confirm the complete code, module interface and rating before ordering.
- Match the relay footprint and pin numbering, coil accessory voltage and busbar capacity. Relay contact ratings do not override socket ratings.
- Prepare stranded wires as specified, verify retention after insertion and use the release tool for removal. Isolate supplies before plugging or unplugging a relay.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG relays — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
