Slim push-in relay interface terminals
6.5 mm relay interface slices with push-in terminals, a release latch and optional common bridging for compact control-cabinet wiring.
Request a quote ↗TECHNICAL DATA / RSA-DRP
Specifications & selection.
- Single normally-open electromechanical or solid-state outputs.
- RSA08Y common bridging accessory.
- 35 mm DIN-rail installation.
| Relay with RSA-DRP024 | Relay output rating | Control selection |
|---|---|---|
| APAN3112 / APAN3124 | 1 NO, silver alloy; 5 A at 250 VAC / 30 VDC | 12 / 24 VDC relay coil by exact model |
| APAN3124(E) | 1 NO; 5 A at 250 VAC / 30 VDC | 24 VDC relay coil |
| EQG22024 | TRIAC, 2 A at 75–264 VAC, 45–65 Hz | 24 VDC relay input |
| EQZ102D | MOSFET, 3.6 A at 0–60 VDC | 24 VDC relay input |
| EQZ202D | MOSFET, 2.7 A at 0–60 VAC/DC, source rating | 24 VDC relay input; confirm AC waveform/frequency |
| Parameter | Value |
|---|---|
| Assembly designation | RSA-DRP024 |
| Terminal input range | 12–24 VAC/DC; verify fitted relay compatibility |
| Base marked load ceiling | 6 A / 250 V; fitted relay may have lower limits |

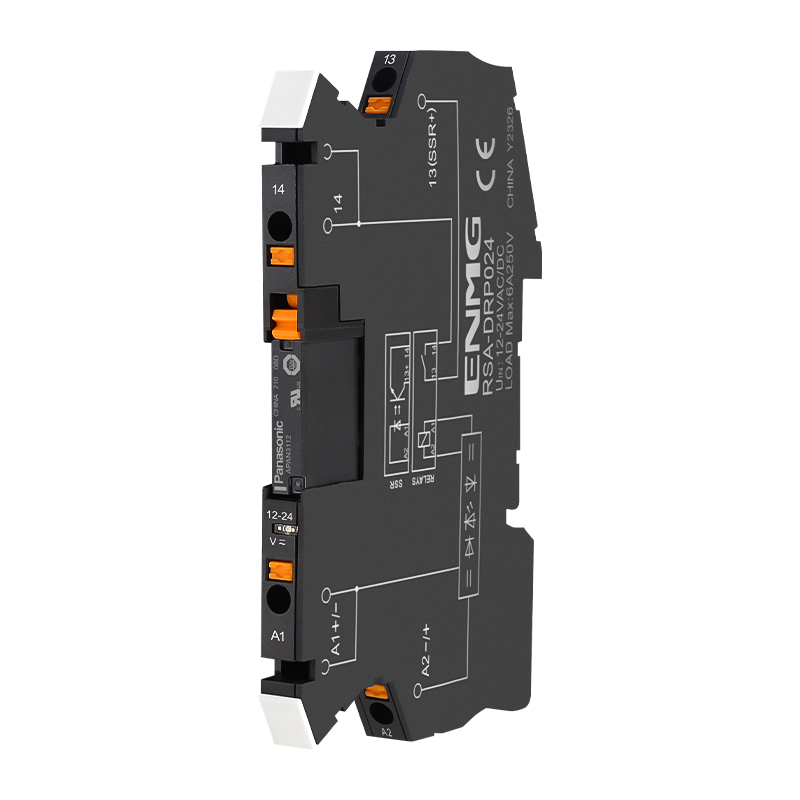

| Outline from original photo | 6.5 mm slice width × 92 mm × 59.5 mm |
| Five slices | 32.5 mm total slice width, excluding accessories |
| Connections | Push-in spring terminals, release buttons |
| Accessories | RSA08Y bridge, jumper links and marking plate |
| Mass / wire range / torque | Not specified in the available product record |
Selection & installation notes
- The prose lists an additional 46.5 mm depth and inconsistent axis descriptions; the original dimensioned photo shows 6.5 × 92 × 59.5 mm. Obtain the exact outline for enclosure clearances.
- The base input range is not the bare relay coil rating. Confirm the complete relay-and-base combination and never apply mains voltage to a 12/24 V coil.
- Use the lower rating of relay, base, bridge and wiring. Apply thermal derating when many slices operate together.
- Bridge only terminals intended to share the same potential. De-energize both control and load circuits before releasing the relay or wiring.
- Solid-state outputs have leakage and are not isolating contacts; select the AC or DC output technology for the actual load.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
