RSL-DRG

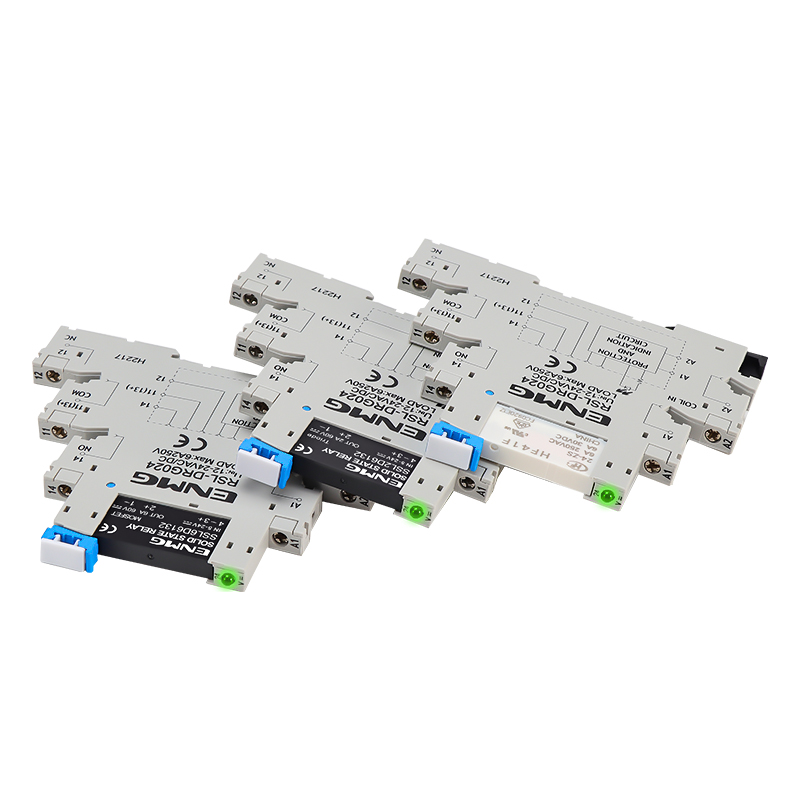

Slim interface relay terminal — cage screw terminals
RSL-DRG is a 6.35 mm-wide interface relay terminal for modular 35 mm DIN-rail assemblies. It accepts compatible HF41F electromagnetic relays or SSL solid-state relays and provides replaceable relay connections.
Request a quote ↗TECHNICAL DATA / RSL-DRG
Specifications & selection.
- Relay insertion/removal aid for maintenance.
- Optional plug-in cross-connectors for common-potential wiring.
- Input-circuit LED indication, overvoltage protection and non-polarized input as described in the source.
- Select the complete terminal-and-relay combination for the operating voltage and load.
| Parameter | Specification |
|---|---|
| Terminal type | Cage screw terminals |
| Width | 6.35 mm |
| Mounting | 35 mm DIN rail |
| Compatible relay families | HF41F electromagnetic; SSL solid-state |
| Overall dimensions / weight | Not specified on this source page; request the selected assembly drawing |
| Terminal | Operating supply | Compatible relay | Contact / listed load rating |
|---|---|---|---|
| RSL-DRG024 | 12–24 VAC/DC | HF41F-12-ZS / HF41F-24-ZS | SPDT / 1C; 6 A at 250 VAC or 30 VDC |
| RSL-DRG230 | 220–240 VAC/DC | HF41F-60-ZS | SPDT / 1C; 6 A at 250 VAC or 30 VDC |
| Terminal | Operating supply | Relay | Output | Listed load rating |
|---|---|---|---|---|
| RSL-DRG024 | 5–24 VAC/DC | SSL2A2032 | AC, zero-cross | 2 A / 240 VAC |
| RSL-DRG024 | 5–24 VAC/DC | SSL2A2132 | AC, random turn-on | 2 A / 240 VAC |
| RSL-DRG024 | 5–24 VAC/DC | SSL2D6132 | DC | 2 A / 60 VDC |
| RSL-DRG024 | 5–24 VAC/DC | SSL6D6132 | DC | 6 A / 60 VDC |
| Source code | Description |
|---|---|
| RSL Z3 | White separator plate |
| RSL Z3K | Black separator plate |
| RSL Z2B | 20-position busbar, blue |
| RSL Z2K | 20-position busbar, black |
| RSL Z2R | 20-position busbar, red |
Selection & installation notes
- The electromagnetic and solid-state tables have different operating supply ranges. The terminal designation alone does not determine the complete assembly rating.
- The source pairs the 220–240 VAC/DC terminal assembly with an HF41F-60-ZS relay through its input circuit; do not apply the assembly supply directly to the bare relay coil.
- Confirm conductor size, stripping length and screw torque where applicable from the product marking; these values are not stated on the source page.
- Check the selected relay wiring diagram before installation. On the photographed electromagnetic assembly A1/A2 identify the input and 11/12/14 identify COM/NC/NO.
- Load ratings belong to the listed combinations; confirm the actual load type, inrush and ambient conditions before ordering.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
English relay product selection brochure · YZ26I10
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
