RSL-DRP
Slim spring-terminal relay interfaces

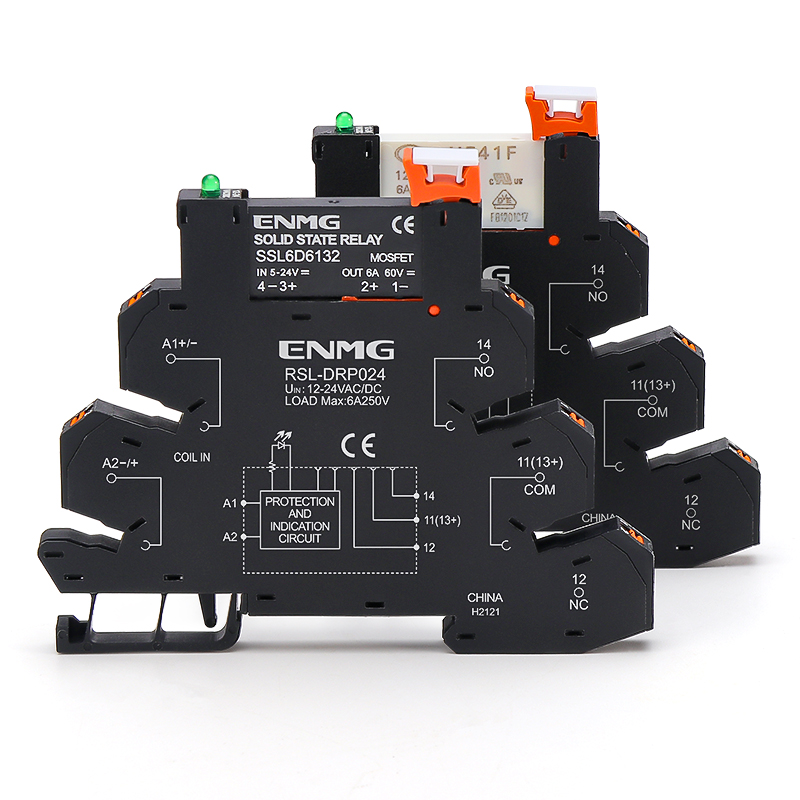

6.35 mm-wide DIN-rail relay terminals with spring connections, status indication and a relay insertion/removal lever.
Request a quote ↗TECHNICAL DATA / RSL-DRP
Specifications & selection.
- Mechanical HF41F or compatible SSL solid-state relay options.
- 024 and 230 input assembly classes.
- Optional spacers and 20-position common bridges.
| Terminal | Assembly input | Relay reference | Contact class |
|---|---|---|---|
| RSL-DRP024 | 12–24 VAC/DC | HF41F-12-ZS or -24-ZS; matched assembly required | 1 CO, 6 A at 250 VAC / 30 VDC |
| RSL-DRP230 | 220–240 VAC/DC | HF41F-60-ZS; socket conditions its input | 1 CO, 6 A at 250 VAC / 30 VDC |
| Relay | Output | Control reference |
|---|---|---|
| SSL2A2032 | 2 A / 240 VAC, zero-cross | 5–24 VAC/DC assembly in source |
| SSL2A2132 | 2 A / 240 VAC, random | 5–24 VAC/DC assembly in source |
| SSL2D6132 | 2 A / 60 VDC | 5–24 VAC/DC assembly in source |
| SSL6D6132 | 6 A / 60 VDC | 5–24 VAC/DC assembly in source |
| Parameter | Value |
|---|---|
| Width / mounting | 6.35 mm / 35 mm DIN rail |
| Input design | Non-polarized assembly with LED and overvoltage protection |
| Relay service | Insertion/removal lever; field wires remain connected |
| Spacer | RSL Z3 white / RSLZ3K black |
| 20-position bridges | RSL Z2B blue / Z2K black / Z2R red |
| Height, depth, mass and wiring limits | Exact terminal and relay drawing required |
Selection & installation notes
- Assembly input voltage is not bare relay coil voltage. The source incorrectly calls the HF41F-60 coil 220–240 VAC/DC; do not apply mains directly to that bare coil. Match the exact socket and relay combination.
- The 024 mechanical-relay table and SSL table have different input ranges. Confirm the complete supplied assembly, including any indicator and protection circuit.
- Solid-state variants have leakage, minimum-load and thermal constraints and are not equivalent to an isolated mechanical contact. Confirm AC/DC output type and socket current limits.
- Provide thermal spacing and verify total bridge current; 6 A per relay does not establish unlimited current across a common bridge.
- Use the spring release as specified for the conductor type, fully seat the wire, and isolate input and load circuits before changing relays or jumpers.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG relays — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
