RSL-DRS
Slim screw-terminal relay interfaces

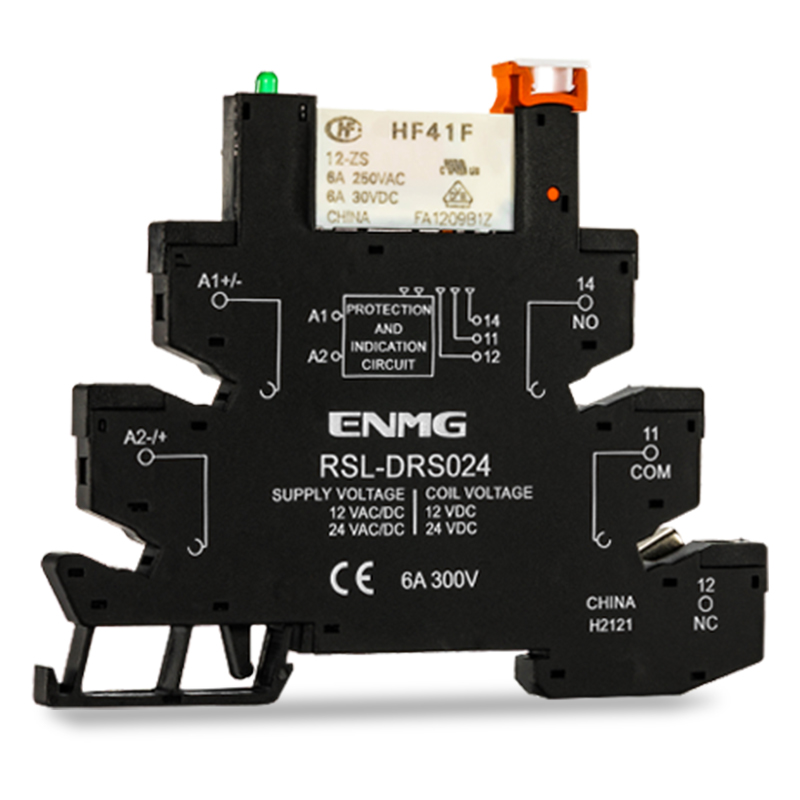

6.35 mm-wide DIN-rail interface terminals for compatible HF41F electromagnetic or SSL solid-state relays, with an extraction lever and input indication.
Request a quote ↗TECHNICAL DATA / RSL-DRS
Specifications & selection.
- Cage-clamp screw terminals.
- Input indication, protection and non-polarized input described in the source.
- Optional cross-connection busbars and separator plates.
| Interface | Input in chart | Compatible relay | Contact rating |
|---|---|---|---|
| RSL-DRS024 | 12–24 VAC/DC | HF41F-12-ZS / HF41F-24-ZS | SPDT, 6 A at 250 VAC / 30 VDC |
| RSL-DRS230 | 220–240 VAC/DC | HF41F-60-ZS | SPDT, 6 A at 250 VAC / 30 VDC |
| Input in chart | Relay | Output |
|---|---|---|
| 5–24 VAC/DC | SSL2A2032 | 2 A, 240 VAC, zero-cross |
| 5–24 VAC/DC | SSL2A2132 | 2 A, 240 VAC, random |
| 5–24 VAC/DC | SSL2D6132 | 2 A, 60 VDC |
| 5–24 VAC/DC | SSL6D6132 | 6 A, 60 VDC |
| Code | Description |
|---|---|
| RSL Z3 | White separator |
| RSL Z3K | Black separator |
| RSL Z2B | 20-position blue busbar |
| RSL Z2K | 20-position black busbar |
| RSL Z2R | 20-position red busbar |
| Parameter | Published specification |
|---|---|
| Width / mounting | 6.35 mm / 35 mm DIN rail |
| Representative terminal marks | A1 / A2 input; 11 common, 12 NC, 14 NO for electromagnetic relay |
| Socket marking in photograph | 6 A / 300 V; not a 300 V relay switching rating |
| Other dimensions / mass / wiring limits | Not supplied; request exact assembly drawing and datasheet |
Selection & installation notes
- Input range depends on the inserted relay and interface circuit. The representative label maps 12 V supply to a 12 VDC relay and 24 V supply to a 24 VDC relay; do not assume arbitrary interchangeability.
- The 230 interface uses a specified lower-voltage relay with its conditioning circuit. Do not connect the relay coil directly to the interface supply.
- SSR versions have normally open semiconductor outputs, leakage and different load limits; they do not inherit the electromagnetic SPDT rating.
- Confirm wire size, strip length, torque, busbar rating and thermal derating. Isolate supplies before operating the extraction lever.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG relays — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
