RSLZ2

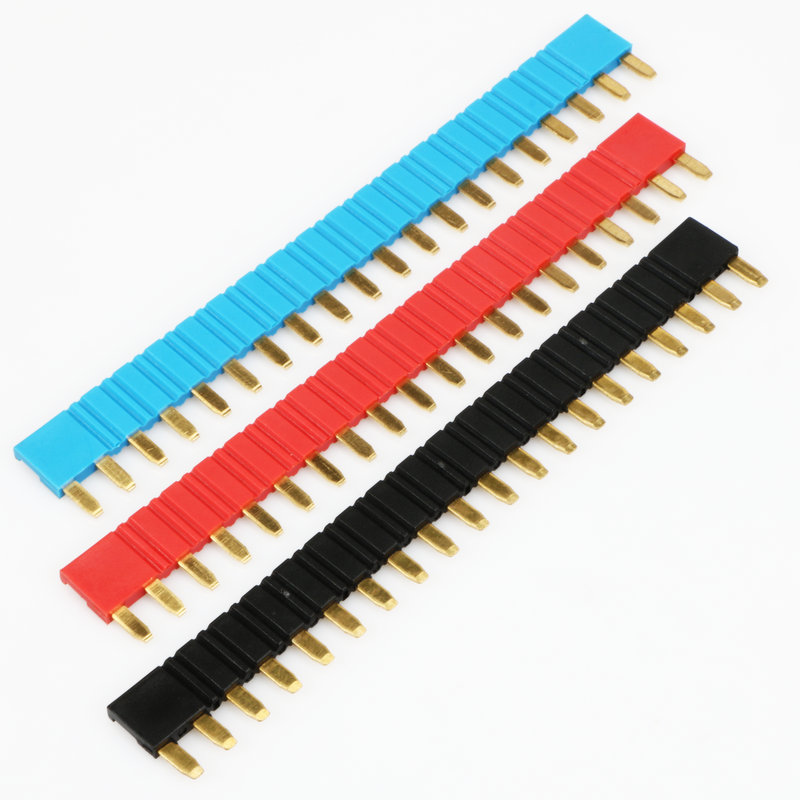

20-position relay socket jumper bars
Moulded flat-pin jumper bars for distributing a common potential across compatible RSL slim relay sockets.
Request a quote ↗TECHNICAL DATA / RSLZ2
Specifications & selection.
- 20 positions at 6.2 mm pitch.
- Blue, black and red options for circuit identification.
- Designed specifically for matching RSL slim relay sockets.
| Model | Positions | Pitch | Colour |
|---|---|---|---|
| RSLZ2B | 20 | 6.2 mm | Blue |
| RSLZ2K | 20 | 6.2 mm | Black |
| RSLZ2R | 20 | 6.2 mm | Red |
| Item | Specification |
|---|---|
| Total current marking | 36 A maximum across the jumper bar, not per position |
| Voltage marking | 250 V maximum; observe the compatible socket-system rating |
| Contact form | Flat pins |
| Insulation construction | Injection moulded |
| Compatibility | RSL slim relay socket family |
Selection & installation notes
- Check socket type, 6.2 mm pitch and required bridged positions before selecting. Total circuit current must remain within both jumper and socket-system limits.
- Isolate and verify absence of voltage before insertion or removal. Fully seat the bar and check retention before energizing.
- Do not cut, bend or modify the jumper bar. Record the original bridging arrangement before changes.
- Colours identify circuits and do not change ratings. Store dry and away from corrosive gases.
- Resistance, dielectric and material tables for RSN/RSY/RSK on the source page do not establish RSLZ2 ratings. Request an RSLZ2-specific drawing for additional dimensions and test data.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG electrical accessories — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
