ENMG / RELAY ACCESSORIES
RSN 16 mm

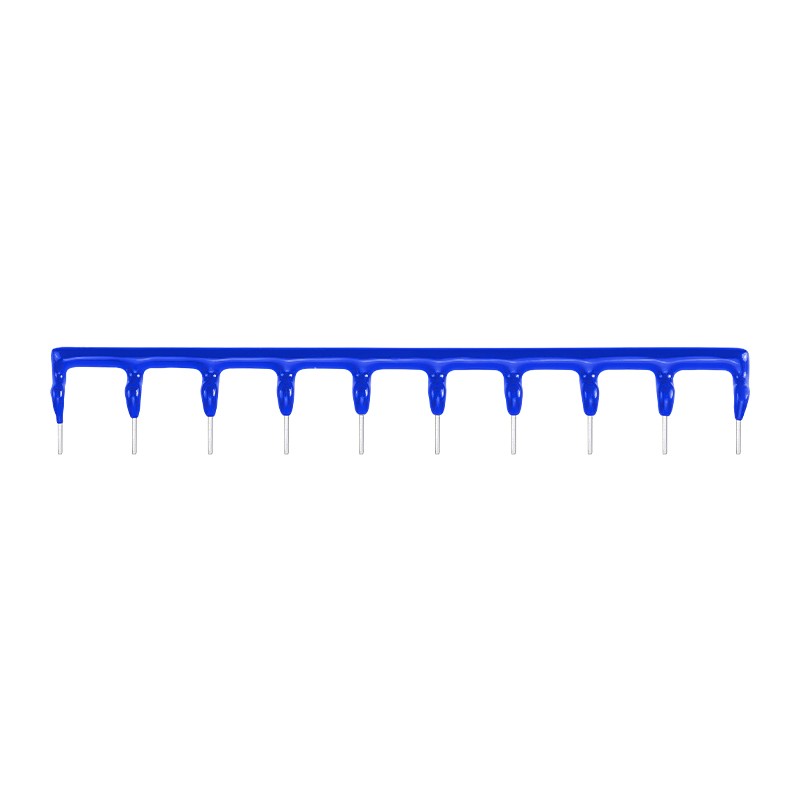

16 mm pitch pin jumper bars
Ten-position pin jumper bars for compatible relay sockets, with color variants for circuit identification.
Request a quote ↗Email insteadPRODUCT PHOTOS
RSN 16 mm gallery
Select a thumbnail to enlarge. Confirm the exact model and supplied accessories when ordering.
TECHNICAL DATA / RSN 16 mm
Specifications & selection.
- Ten-position pin jumper bars for compatible relay sockets, with color variants for circuit identification.
| Parameter | Specification |
|---|---|
| Pitch | 16 mm |
| Positions | 10 |
| Blue / green / black / yellow | RSN10B / RSN10G / RSN10K / RSN10Y |
| Red | Local photo identifies RSN10R; brochure repeats RSN10G in the red row. Confirm the ordering code. |
Selection & installation notes
- Confirm compatibility with the terminal geometry and pitch; do not interchange pin and fork jumpers.
- Current rating, insulation voltage, conductor material and permissible cutting are not specified on this brochure page; request the exact specification.
Based on the ENMG Relays brochure YZ26I10 — page 42 ↗. Checked 2026-09-17. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
English product-family brochure YZ26I10. See page 42 for this series.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
