ENMG / RELAY SOCKETS

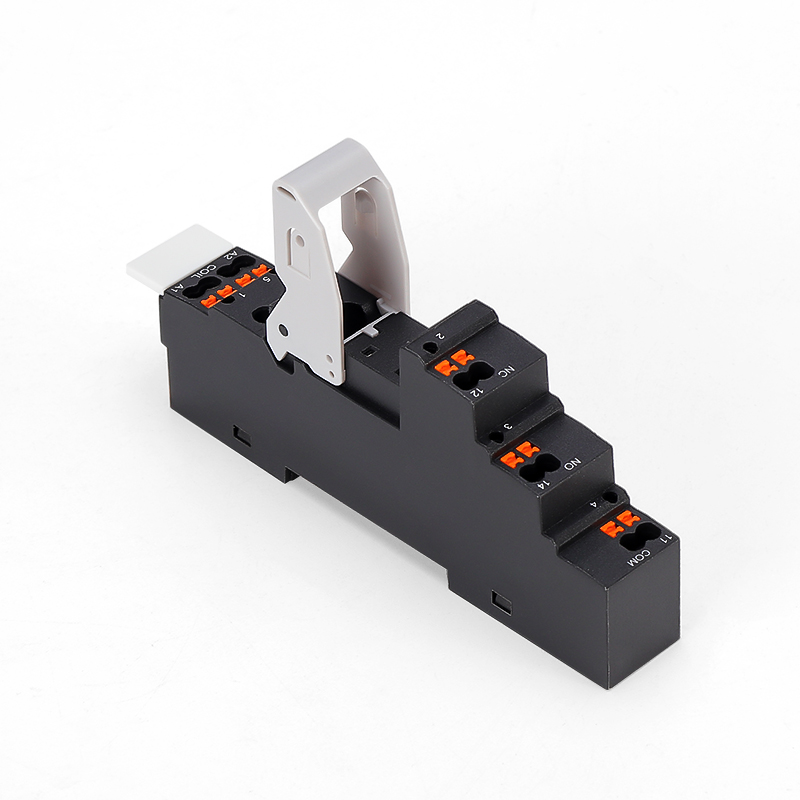

RSZE05P / RSZE08P
Push-in relay sockets for G2R and G2RL families
Spring-terminal interface relay sockets with interchangeable high or low retaining clips for the appropriate relay family.
Request a quote ↗TECHNICAL DATA / RSZE05P / RSZE08P
Specifications & selection.
- 5-pin and 8-pin versions.
- High clip for G2R; low clip for G2RL.
- 35 mm DIN-rail mounting with optional RZM modules.
| Model | Pins | Chart rating | Compatibility listed in page text |
|---|---|---|---|
| RSZE05P | 5 | 12 A / 250 VAC | G2R-1, G2RL-1; SSK4A / SSK3D / SSK4D |
| RSZE08P | 8 | 10 A / 250 VAC | G2R-2 / G2R-1-E; G2RL-2 / G2RL-1-E; SSK10D / SSK4K |
| Item | Specification |
|---|---|
| High retaining clip | G2R family |
| Low retaining clip | G2RL family |
| RZM033VL | Indication / suppression, 5–24 VDC |
| RZM480VL | Indication / suppression, 110–220 VAC |
| ZE interface | Socket supports compatible plug-in modules |
| Parameter | Published specification |
|---|---|
| Terminals | Separated spring push-in connections |
| Mounting | 35 mm DIN rail |
| Wire size / strip length | Not numerically supplied; follow socket markings |
| Dimensions / mass / environment | Not supplied; request current drawing and datasheet |
Selection & installation notes
- The later compatibility table additionally lists G2RL-1A-E for RSZE08P, while the main table does not. Confirm its footprint and terminal assignment before ordering.
- Do not use the inserted relay contact rating as the socket rating: the published socket limits are 12 A and 10 A. Confirm load type, derating and busbar capacity.
- For stranded conductors, follow the specified ferrule preparation. Insert fully and verify retention; use the terminal release tool to remove wires.
- Match the clip height and AC/DC accessory voltage, verify coil/contact numbering, and isolate supplies before replacing a relay.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
