ENMG / RELAY SOCKETS
RSZE2M35M / RSZE2M48M
Cage-screw sockets for G2R, G2RL and SSK relays
DIN-rail sockets with separated coil and contact terminals and an interface for optional indicator and suppression modules.
Request a quote ↗TECHNICAL DATA / RSZE2M35M / RSZE2M48M
Specifications & selection.
- 5-pin and 8-pin arrangements.
- 35 mm DIN-rail mounting.
- Relay replacement without removing field wiring.
| Socket | Pins | Relay options |
|---|---|---|
| RSZE2M35M | 5 | G2R-1 / G2RL-1; SSK4A / SSK3D / SSK4D |
| RSZE2M48M | 8 | G2R-2 / G2R-1-E / G2RL-2 / G2RL-1-E; SSK10D / SSK4K |
| Item | Observed value |
|---|---|

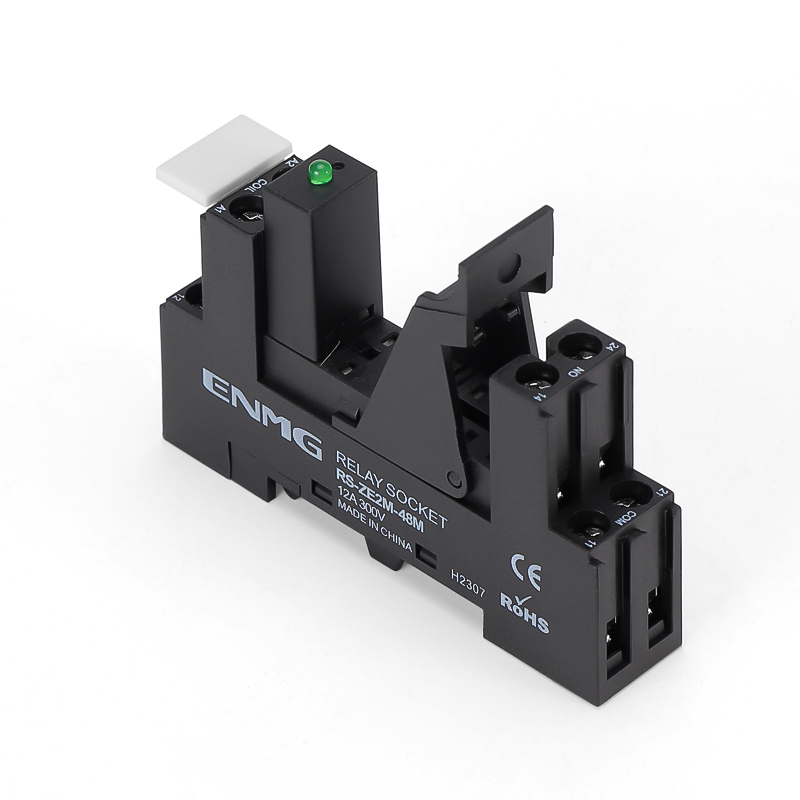

| Photographed model | RS-ZE2M-48M |
| Socket marking | 12 A / 300 VAC |
| Other spelling on page | RSZE2M48M |
| Module | Published coil supply range |
|---|---|
| RZM033VL | 5–24 VDC |
| RZM480VL | 110–220 VAC |
Selection & installation notes
- Socket and relay ratings must both suit the circuit. Confirm wire range, strip length, tightening torque, environmental limits and full outline; these values are not specified for these models on the page.
- Isolate supplies before wiring or replacing a relay. Engage the 35 mm DIN clip, tighten terminals to the product marking and tug-check conductors.
- Keep A1/A2 coil wiring separate from contacts. Select optional RZM modules for the actual coil voltage and polarity; DC and AC modules are not interchangeable.
- Ensure any commoning busbar and its feed conductor can carry the combined current.
- The shared selection image labels RSZE1S35M / RSZE1S48M as a different terminal configuration. Do not apply that row to RSZE2M models. The 12 A / 300 VAC value above is taken only from the photographed 48M socket.
- The text additionally lists G2RL-1A-E, but does not resolve its pin arrangement here. Confirm compatibility against its exact footprint before ordering.
- The photo includes an accessory module; confirm which accessories are included in the quotation.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG relays — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
