ENMG / RELAY INTERFACE MODULES
RT-G
ENMG G2R relay interface modules
Multi-channel relay interface modules with ENMG G2R relays for control-panel integration. Select 2 to 16 channels, screw or spring terminals, and SPDT fused or DPDT configurations.
Request a quote ↗Email insteadPRODUCT PHOTOS
RT-G gallery

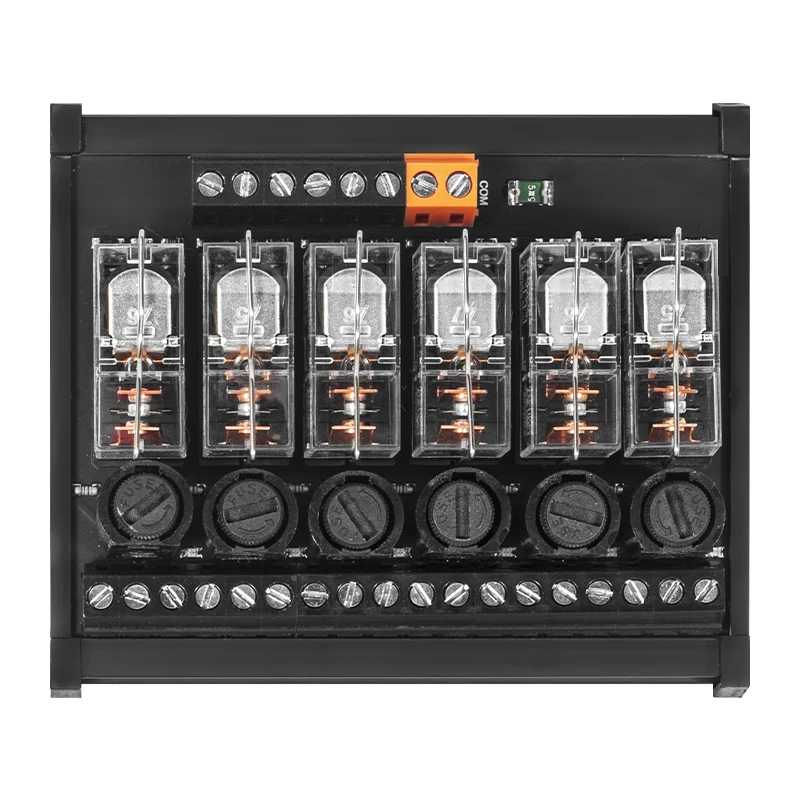

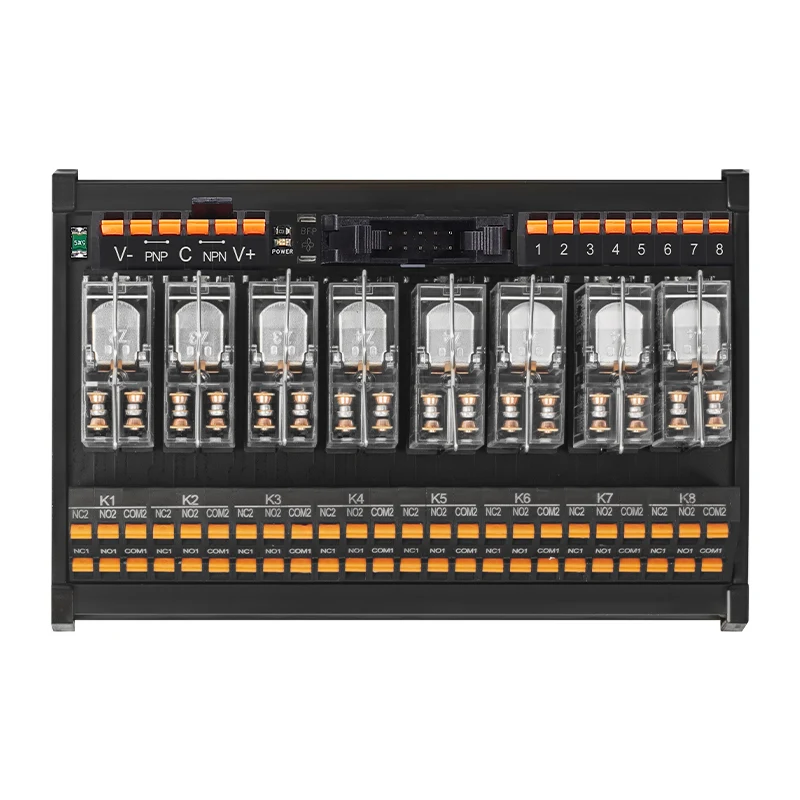

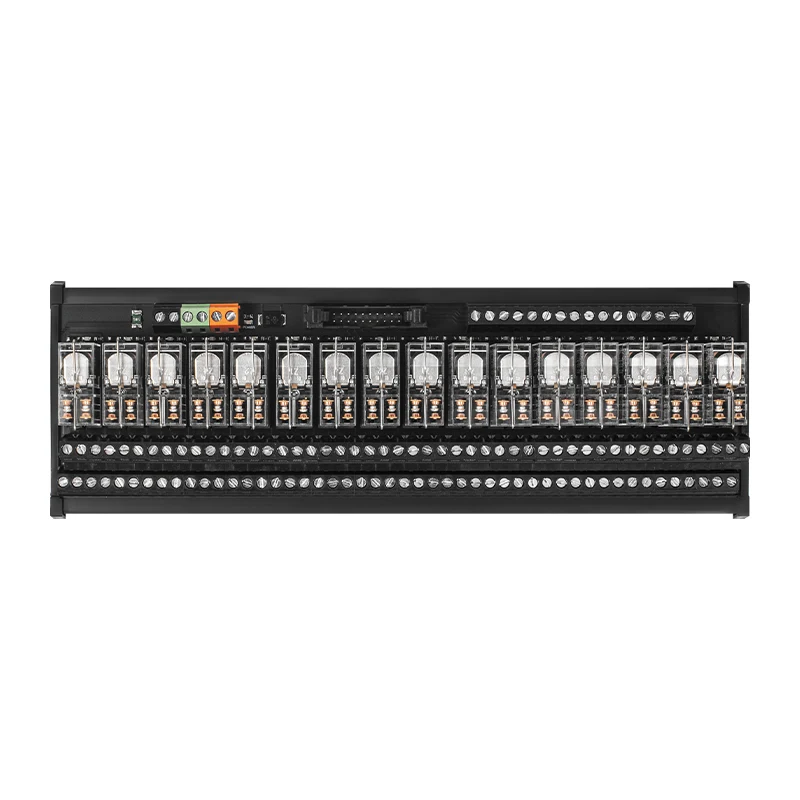

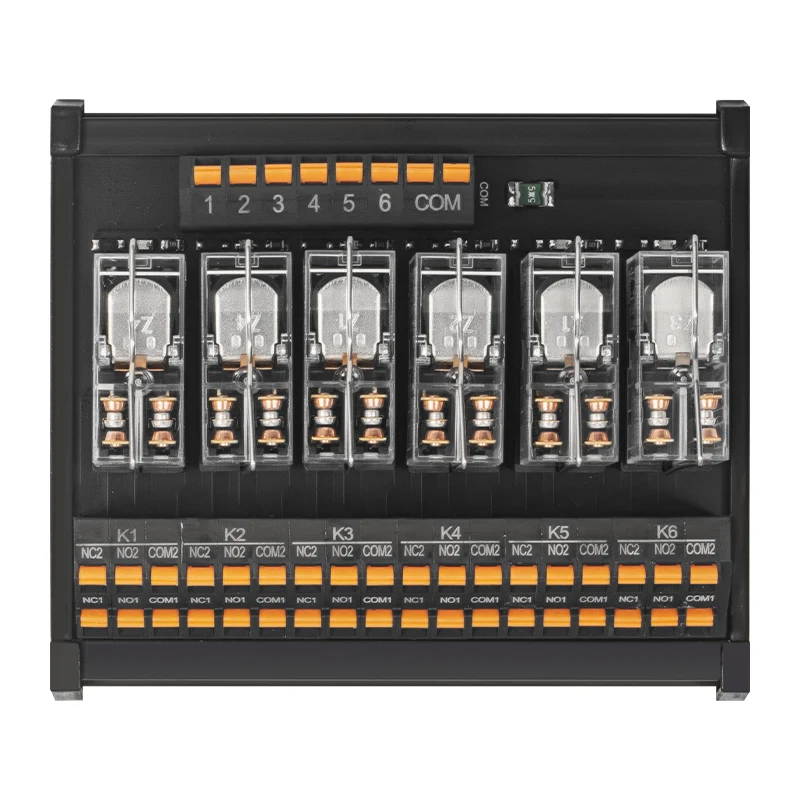

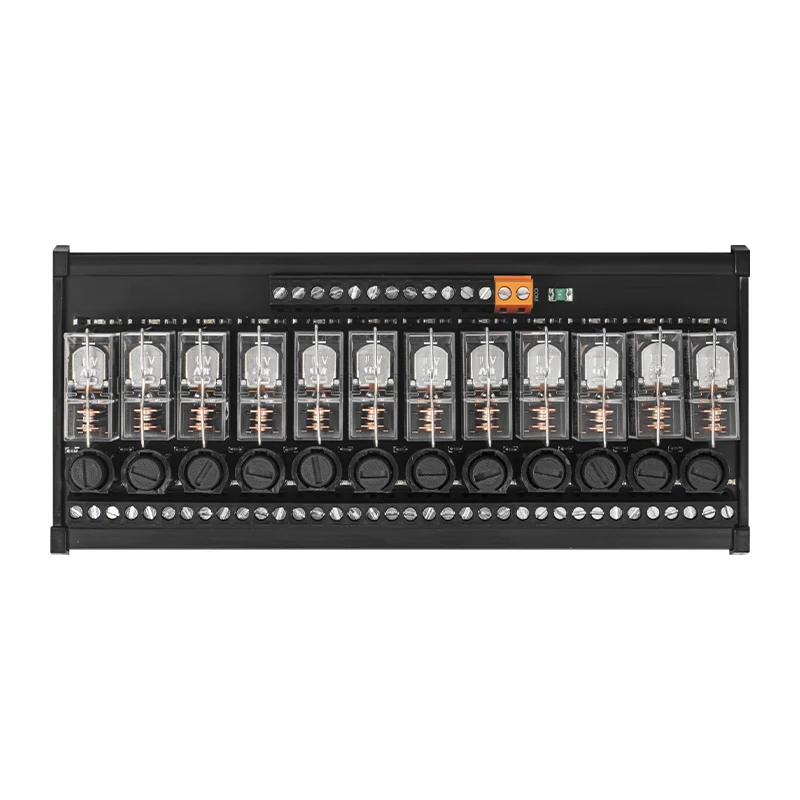

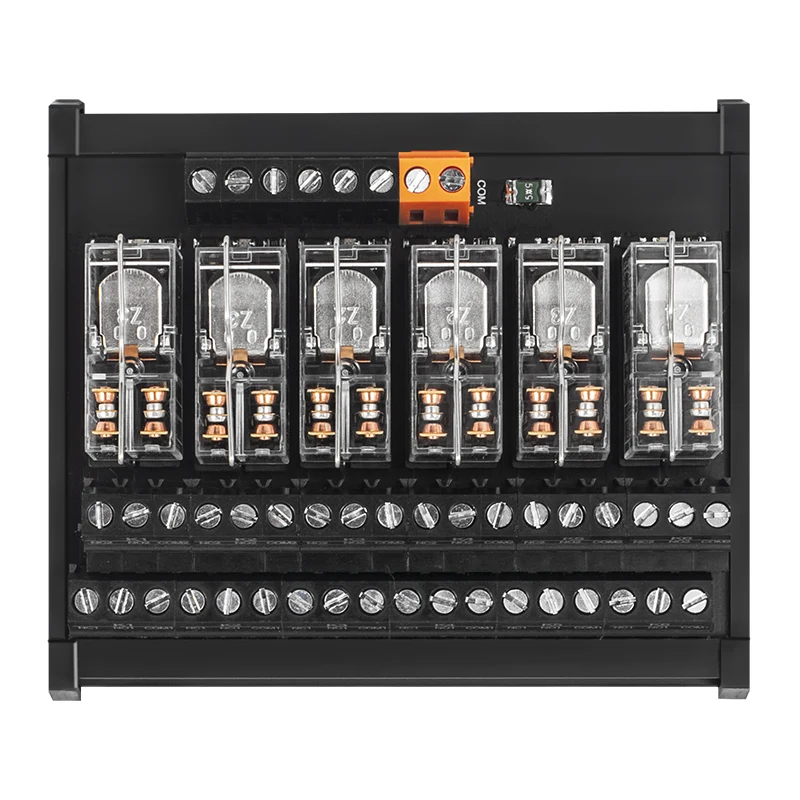

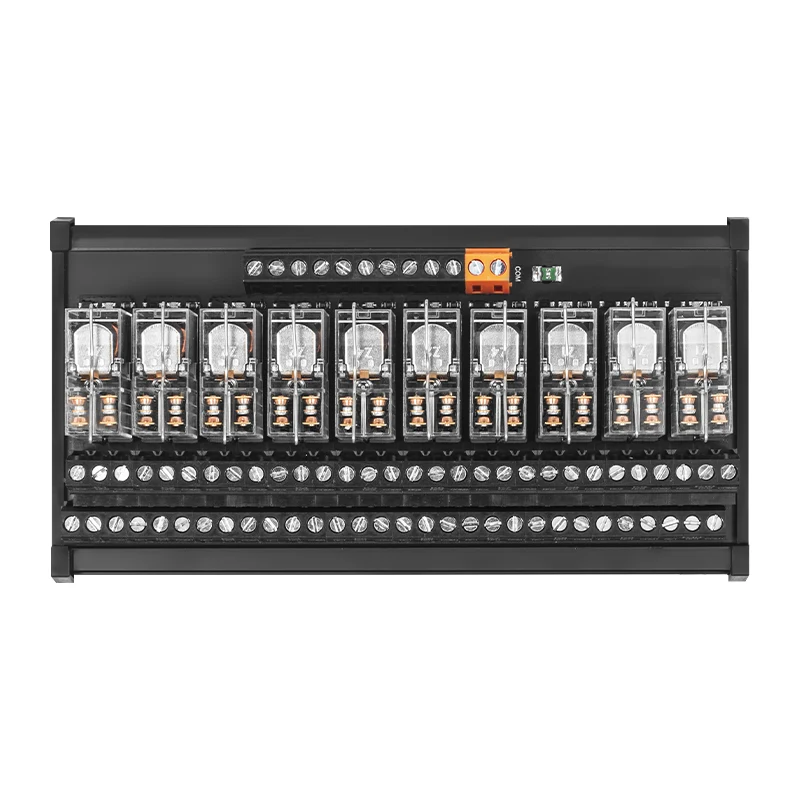

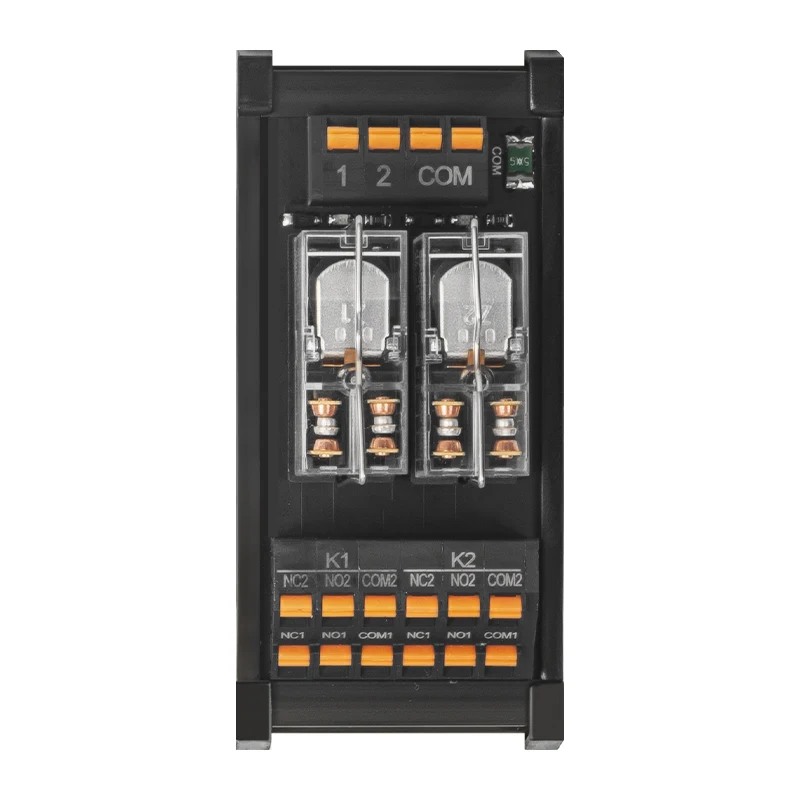

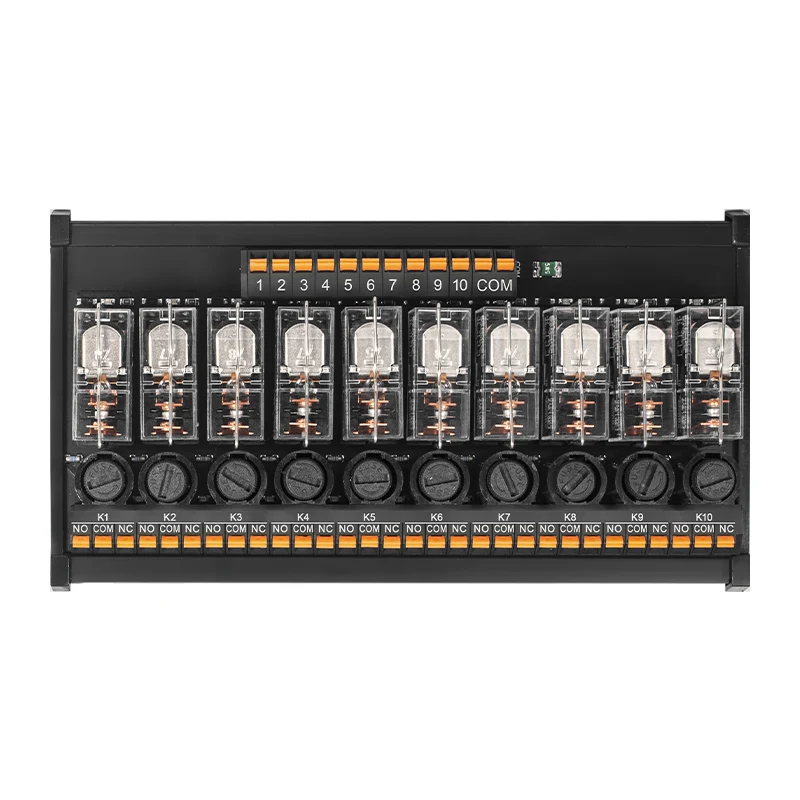

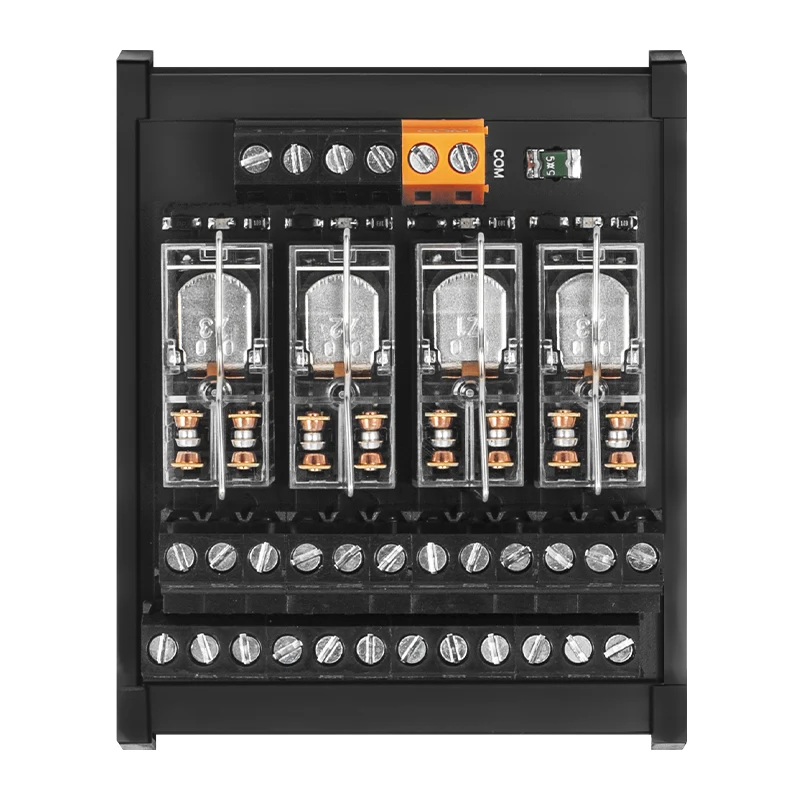

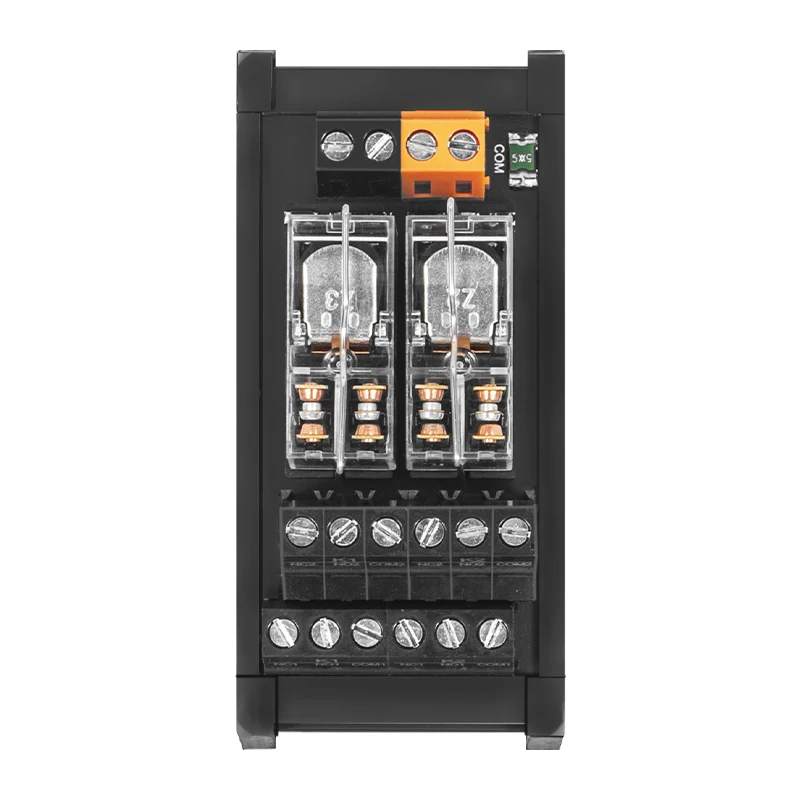

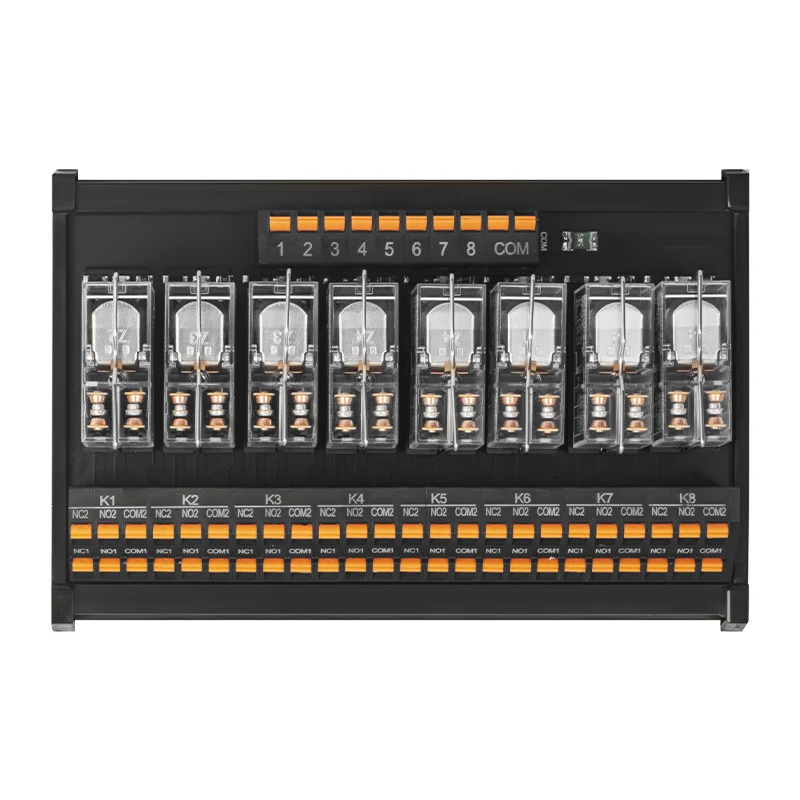

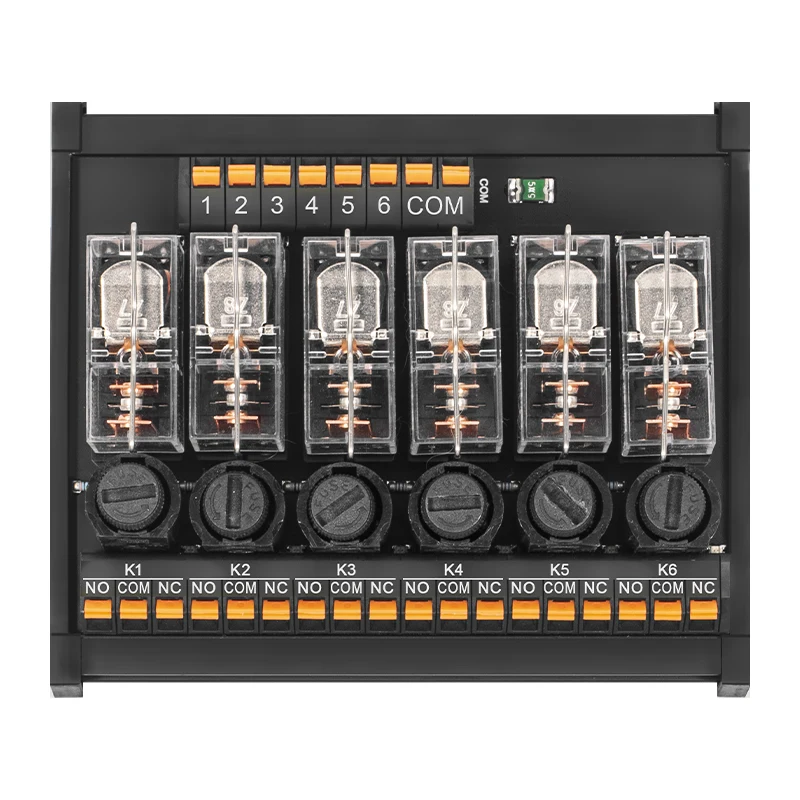

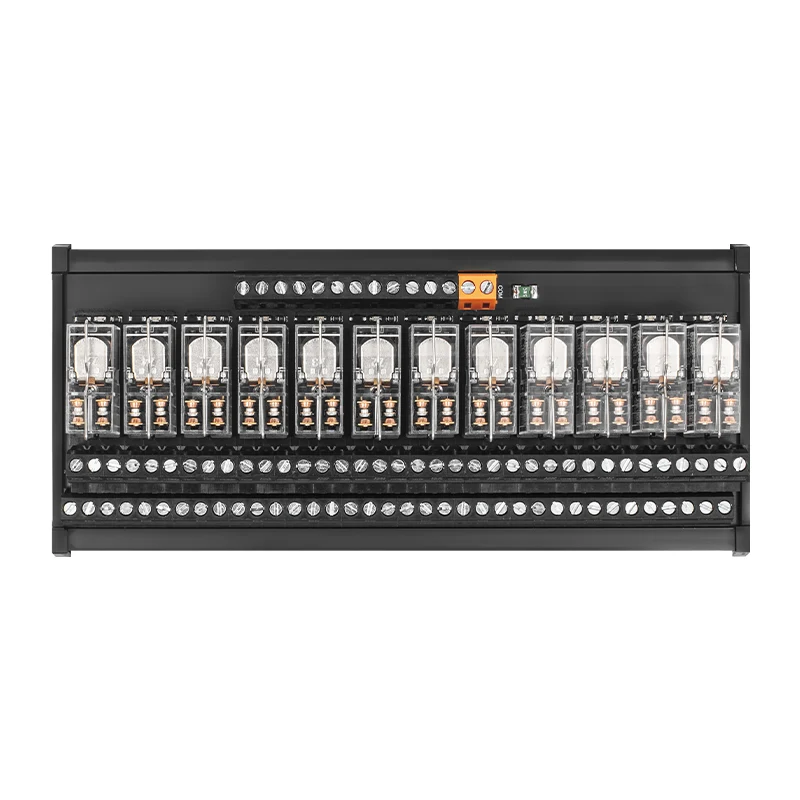

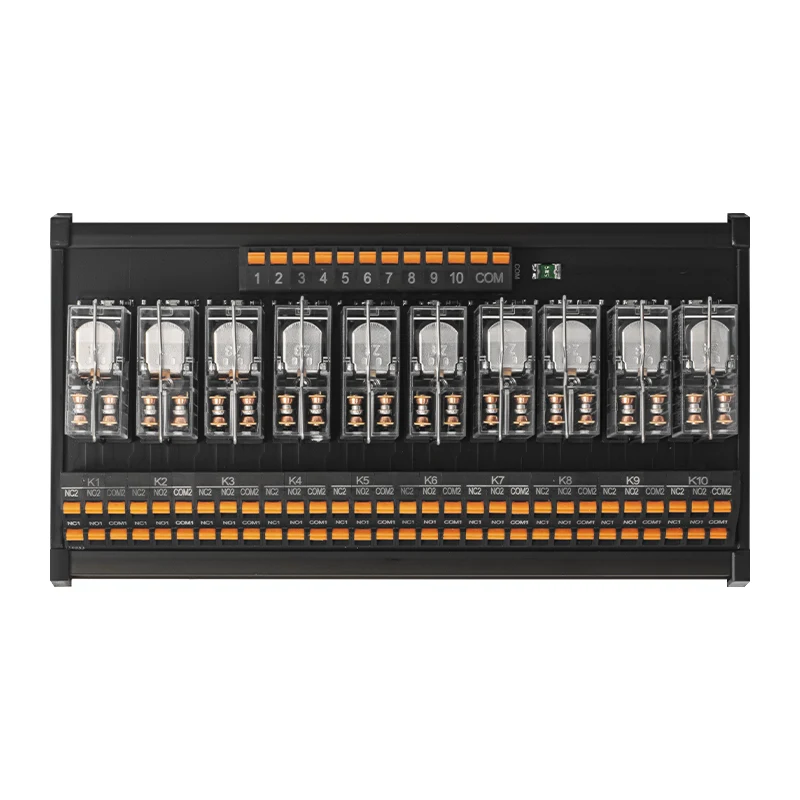

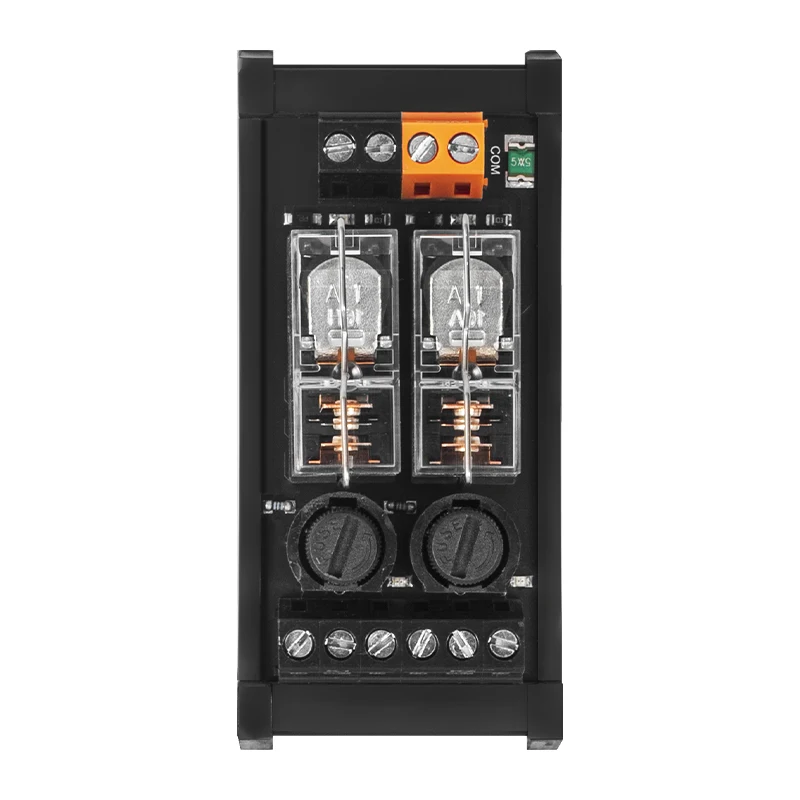

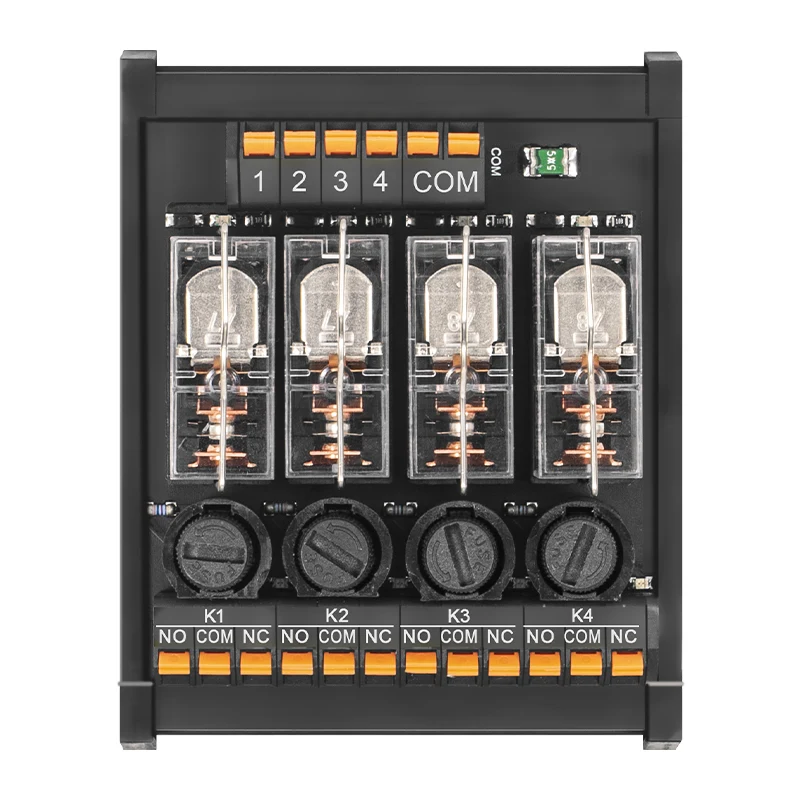

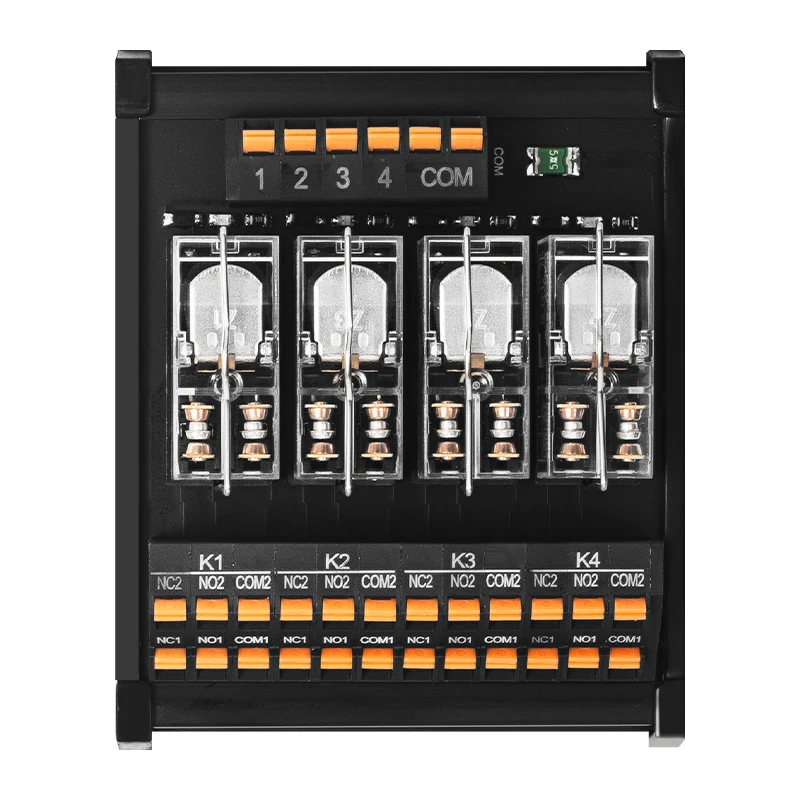

Select a thumbnail to enlarge. Individual photos show 24 VDC variants; choose the exact model and input supply when ordering.
TECHNICAL DATA / RT-G
Specifications & selection.
- Built with ENMG G2R relays, as confirmed by ENMG.
- 2, 4, 6, 8, 10, 12 and 16-channel selections.

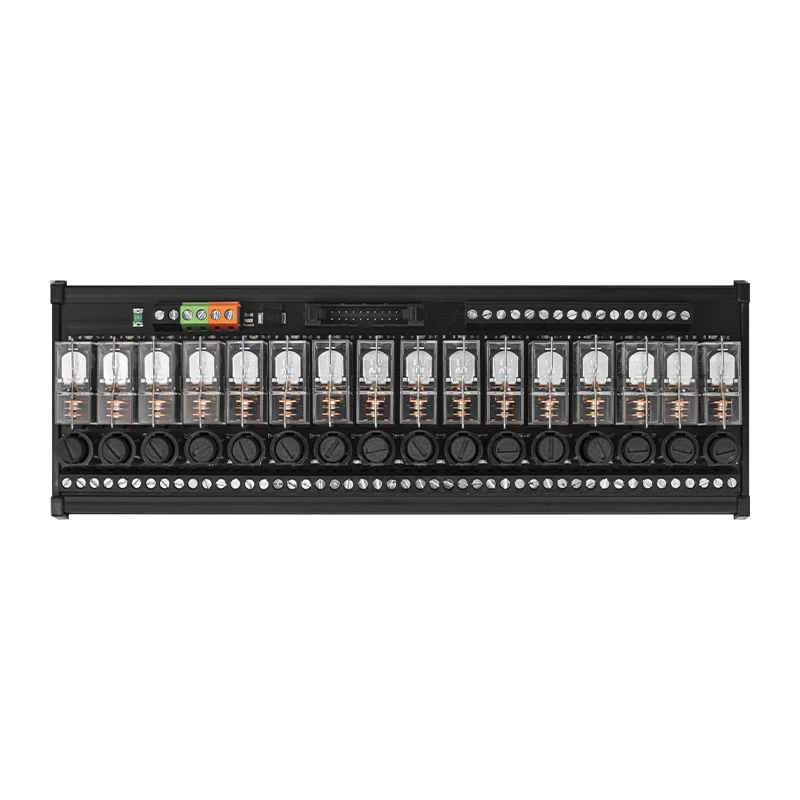

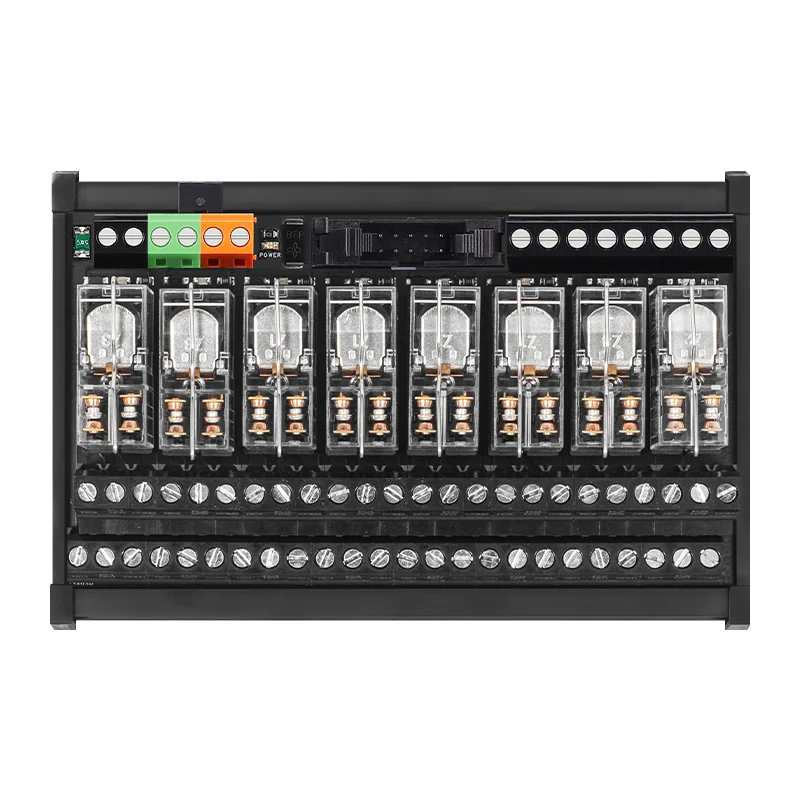

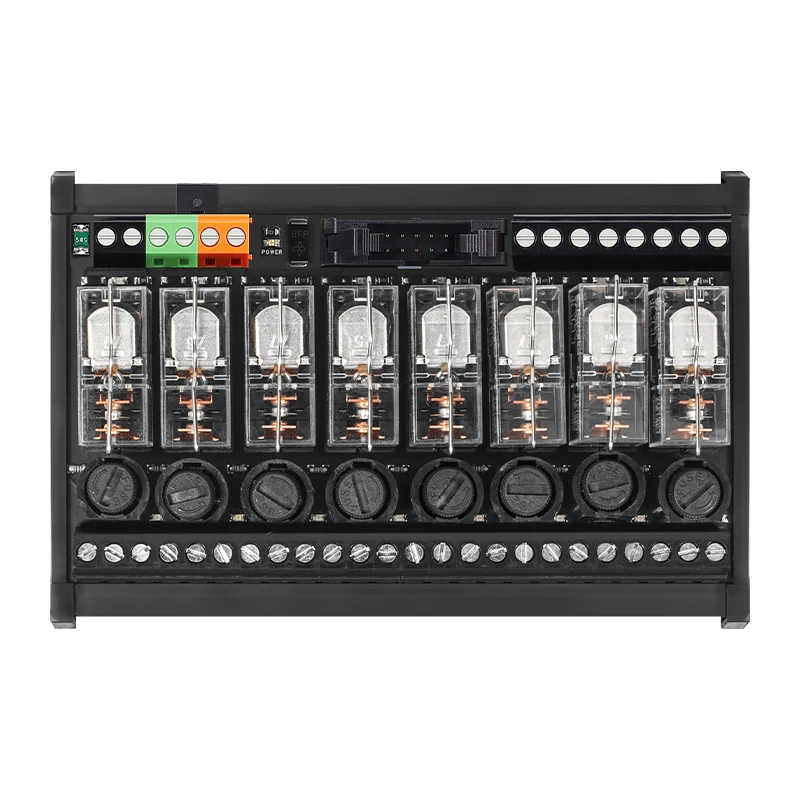

- Screw-terminal and spring-terminal versions; connector-equipped 8 and 16-channel variants.
- Photographed individual models are identified as 24 VDC versions.
| Channels | SPDT, screw, fused | SPDT, spring, fused | DPDT, screw | DPDT, spring |
|---|---|---|---|---|

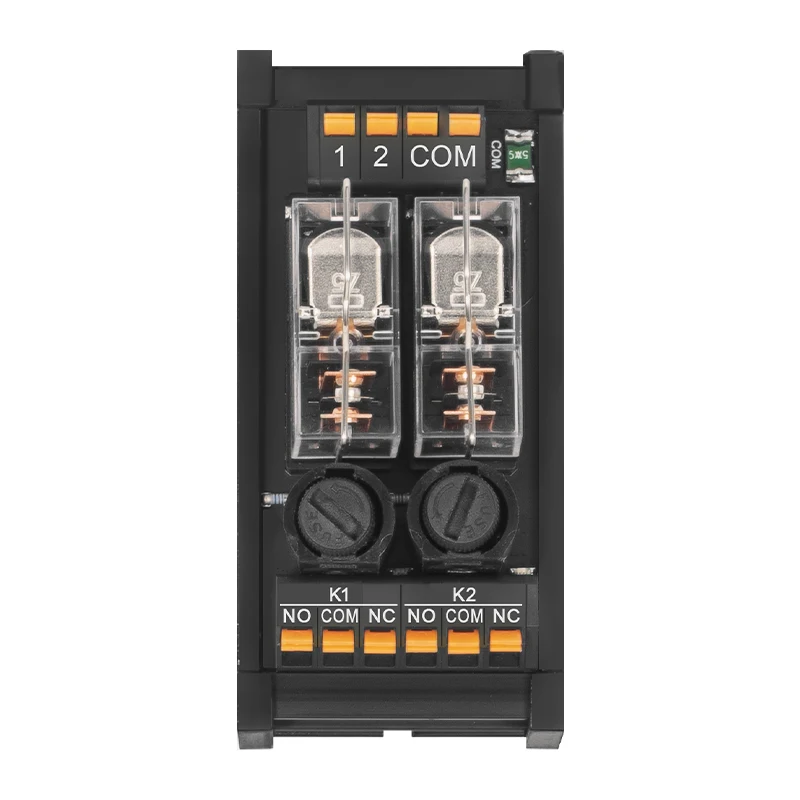

| 2 | RT-G02E-F | RT-G02EM-F | RT-G02D | RT-G02DM |

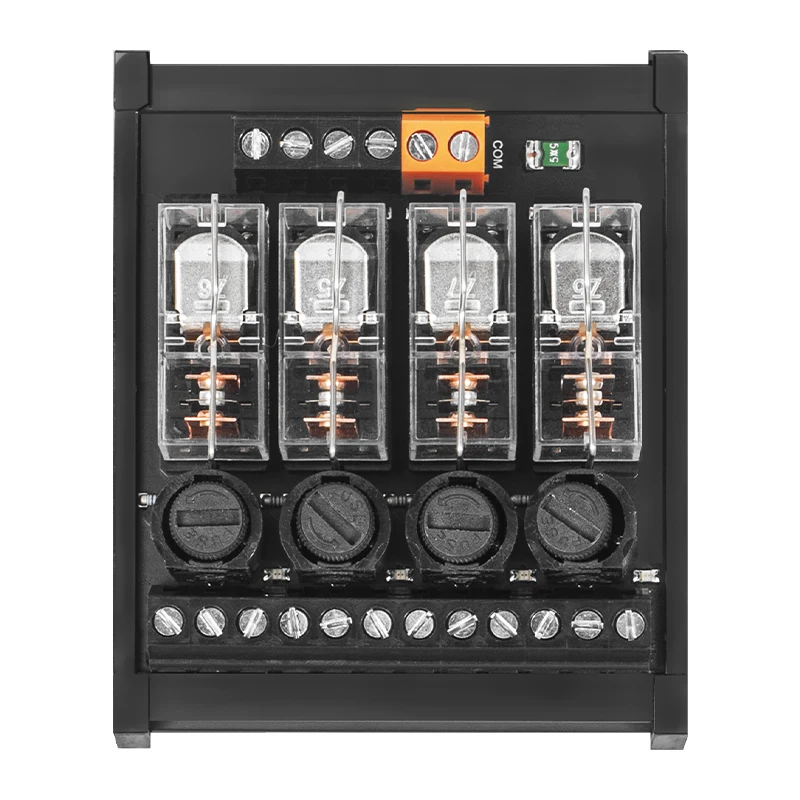

| 4 | RT-G04E-F | RT-G04EM-F | RT-G04D | RT-G04DM |
| 6 | RT-G06E-F | RT-G06EM-F | RT-G06D | RT-G06DM |

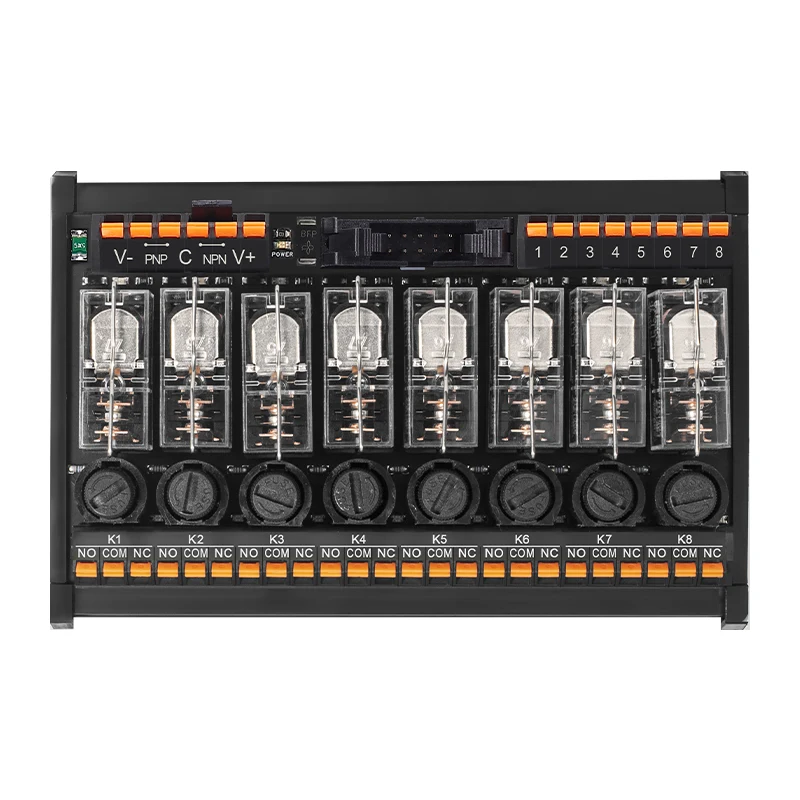

| 8 | RT-G08EC-F | RT-G08ECM-F | RT-G08DC | RT-G08DCM |

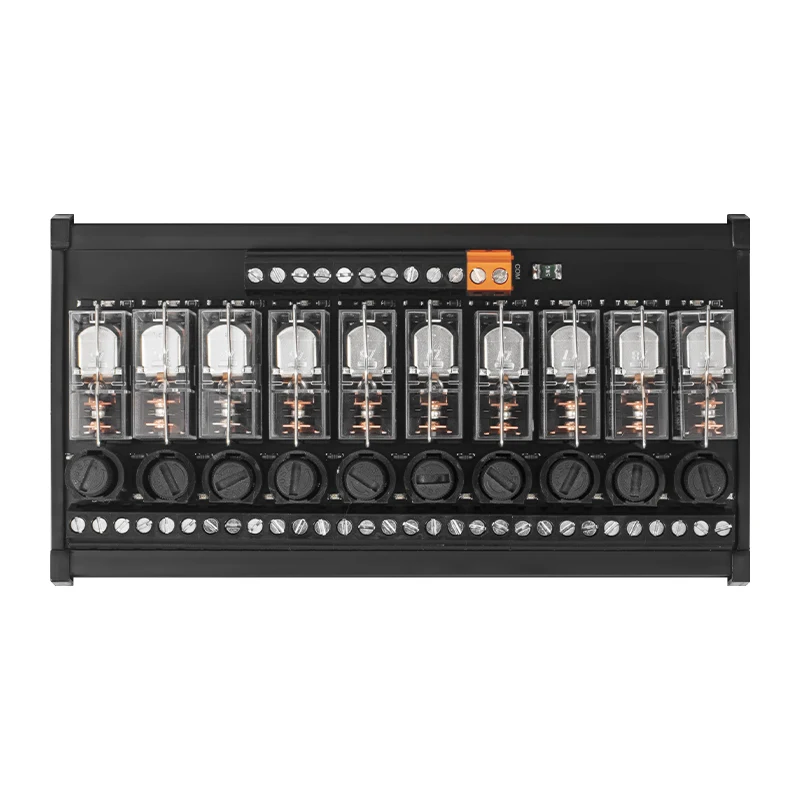

| 10 | RT-G10E-F | RT-G10EM-F | RT-G10D | RT-G10DM |

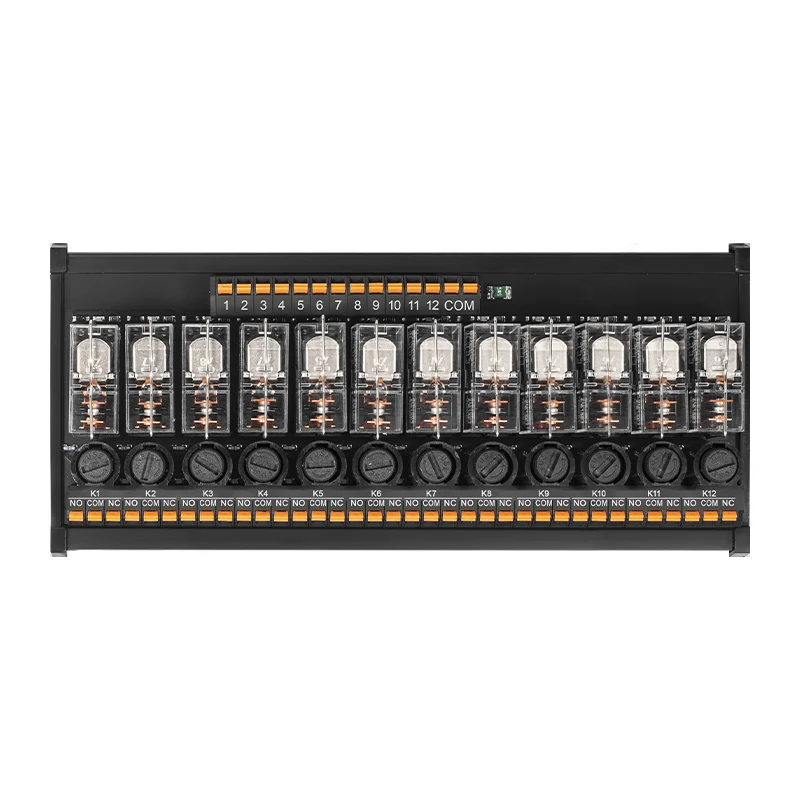

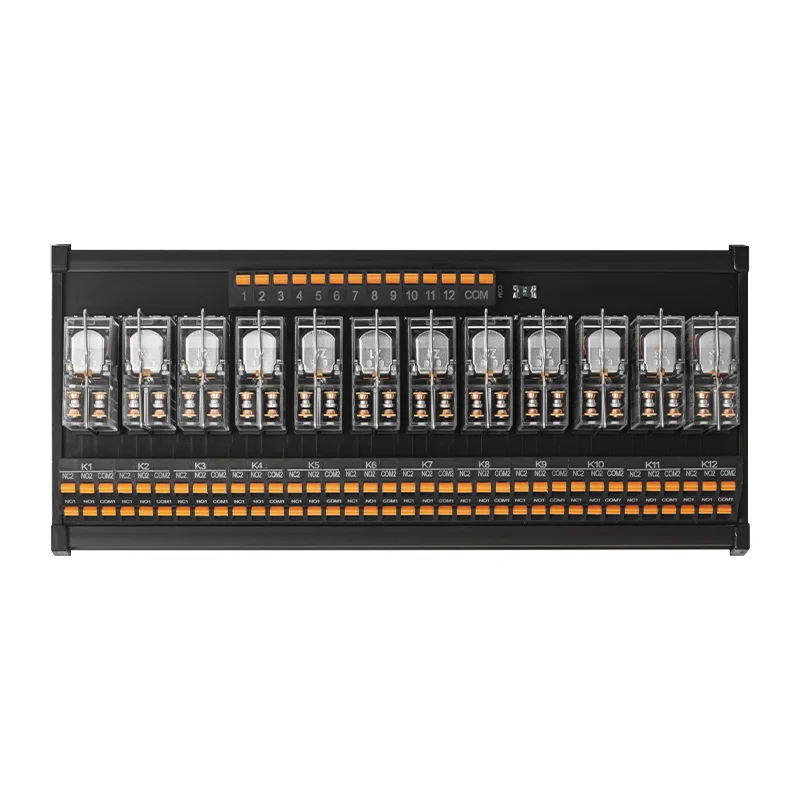

| 12 | RT-G12E-F | RT-G12EM-F | RT-G12D | RT-G12DM |

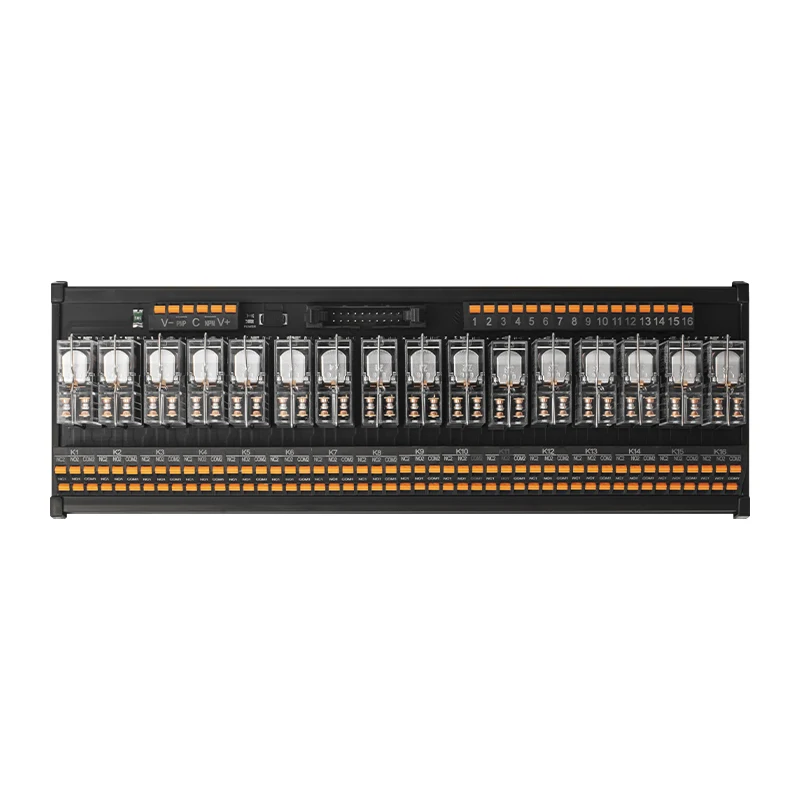

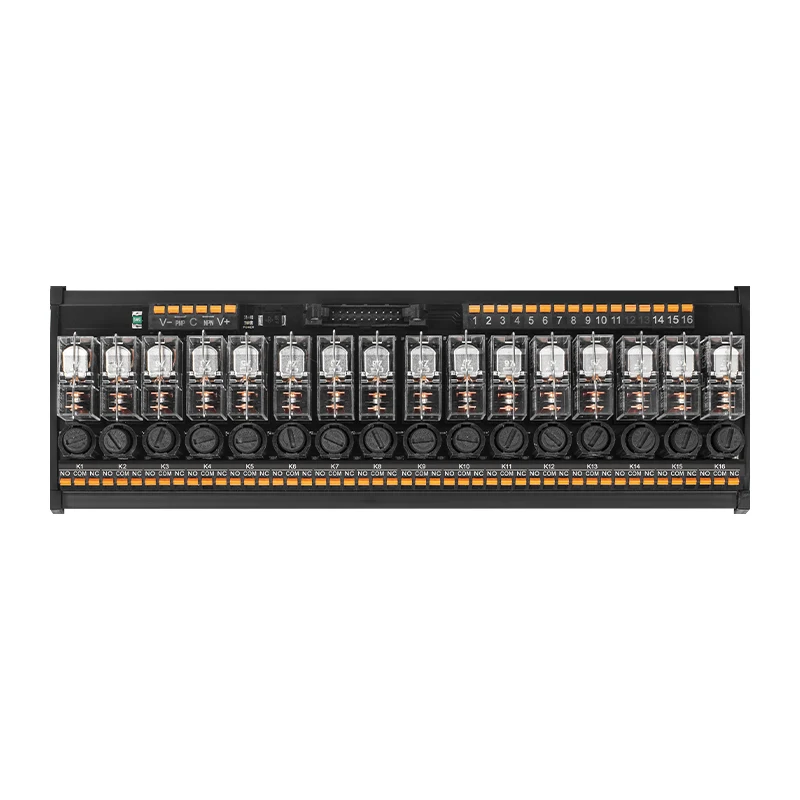

| 16 | RT-G16EC-F | RT-G16ECM-F | RT-G16DC | RT-G16DCM |
| Parameter | SPDT E-F family | DPDT D family |
|---|---|---|
| Contact form | 1 changeover (SPDT / 1C) | 2 changeover (DPDT / 2C) |
| Listed output rating | 16 A at 250 VAC / 30 VDC | 5 A at 250 VAC / 30 VDC |
| Outputs | Independent per channel | Independent per channel |
| Protection | Per-channel overcurrent / short-circuit protection listed in brochure; confirm fuse specification | No fuse protection specified for basic D variants |
| Control supply options | 5 / 12 / 24 VDC; 100–110 / 200–220 VAC, select exact version | 5 / 12 / 24 VDC; 100–110 / 200–220 VAC, select exact version |
| DC control interface | COM+ / COM−; NPN / PNP, verify selected circuit | COM+ / COM−; NPN / PNP, verify selected circuit |
Selection & installation notes
- Choose the exact control-supply version; the listed supply options do not imply a universal-input module. NPN / PNP selection applies to the appropriate DC control circuit.
- The brochure does not specify a utilization category or inductive-load derating for the listed output ratings. Confirm load type, switching duty, inrush and simultaneous-channel loading before selection.

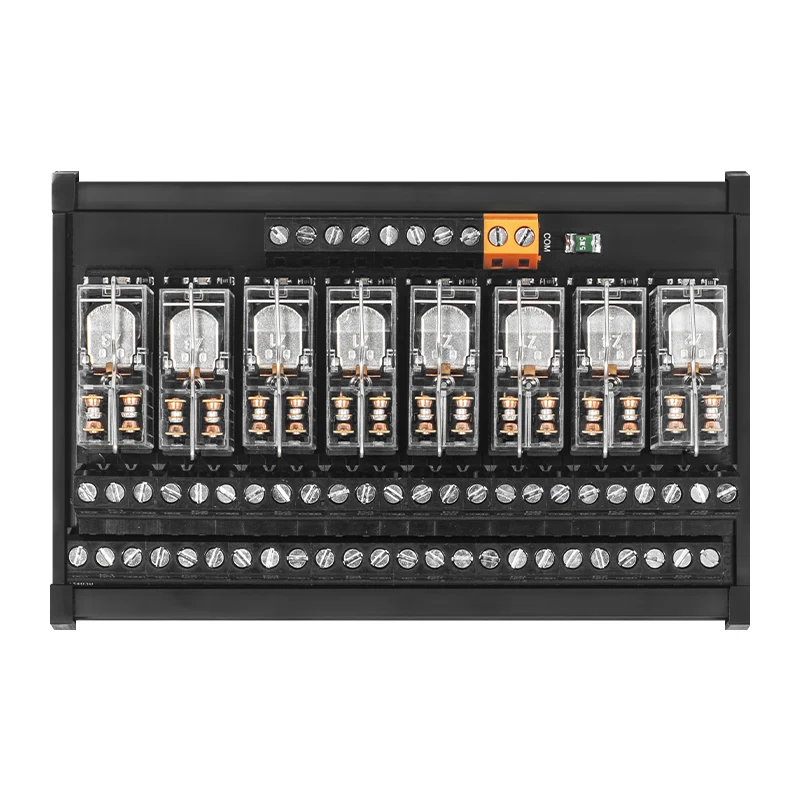

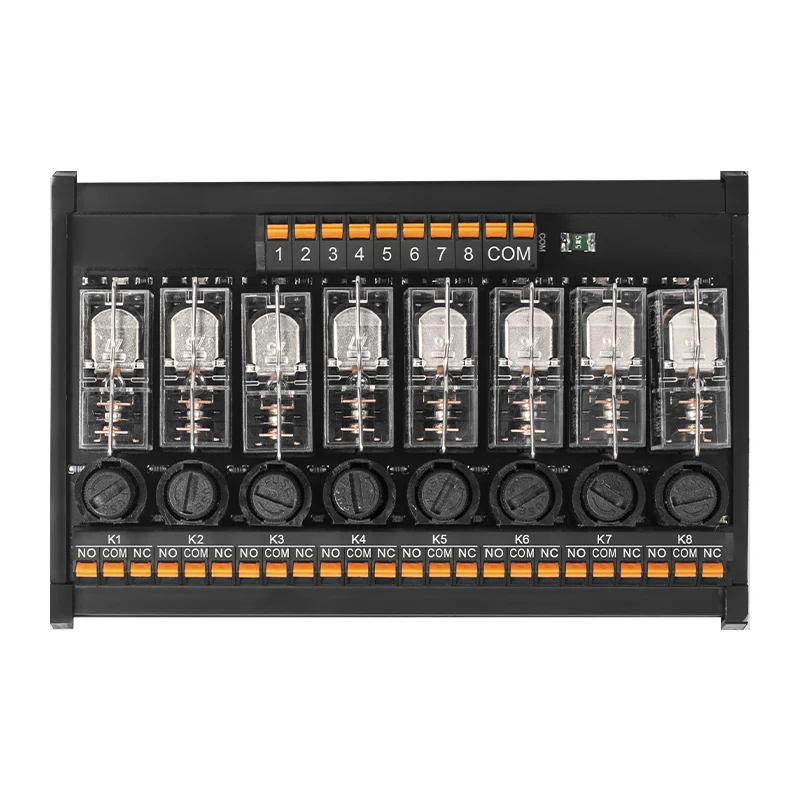

- The photo library also includes RT-G08D, RT-G08DM, RT-G08E-F and RT-G08EM-F. These non-connector 8-channel versions are not individually tabulated on brochure page 17; confirm the exact ordering code and wiring.

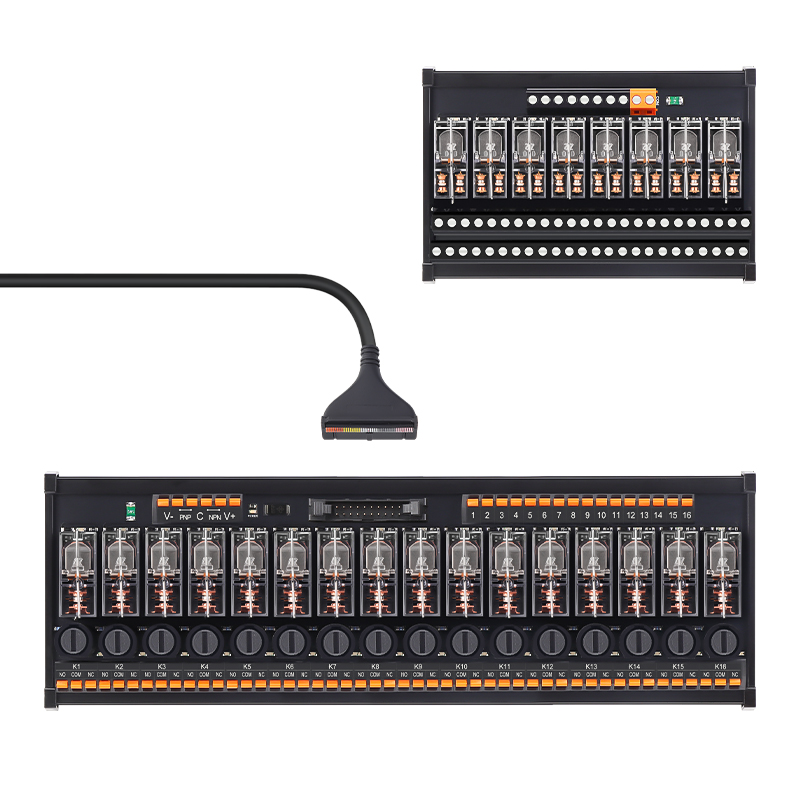

- The main image shows multiple assemblies and a cable for illustration. Confirm included accessories and cable pinout in the quotation.
- Request overall dimensions, mounting details, terminal wire sizes and the exact fuse rating for the selected assembly.
Based on the ENMG Wiring Terminals brochure YZ26I10 — page 17 ↗. Checked 2026-09-17. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG Wiring Terminals brochure YZ26I10 — RT-G selection on page 17.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
