ENMG / RELAY INTERFACE MODULES
RT-GL16DC
16-channel DPDT G2RL relay interface module

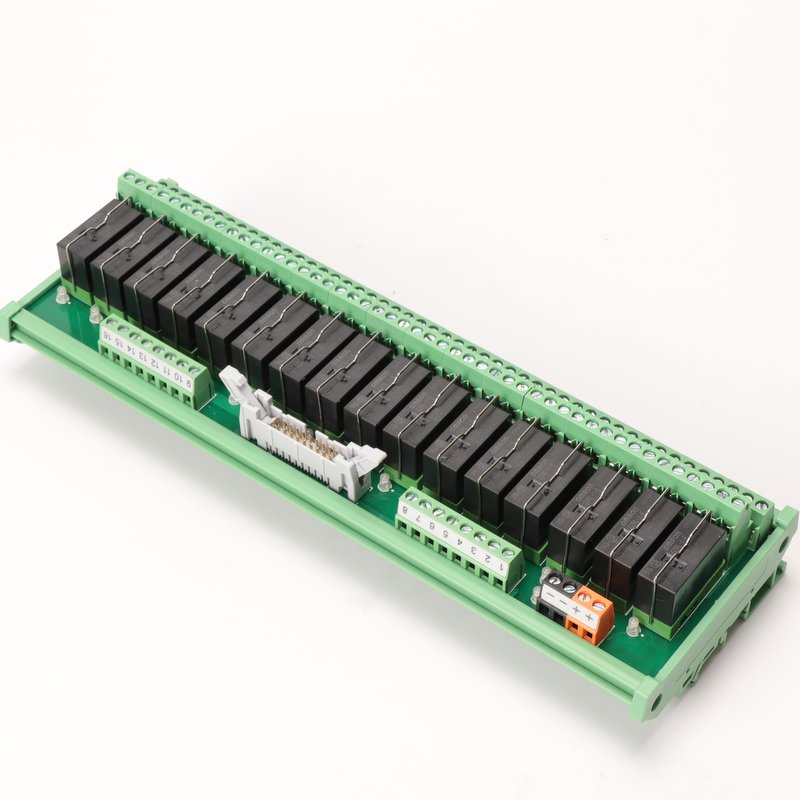

Basic 16-channel G2RL-2 plug-in relay module with two changeover contacts per channel, MIL input and screw output terminals.
Request a quote ↗TECHNICAL DATA / RT-GL16DC
Specifications & selection.
- G2RL-2 DPDT, 8 A relay class.
- MIL input connector with screw field terminals.
- NPN/PNP input and 35 mm DIN mounting.
| Parameter | Published specification |
|---|---|
| Channels / contacts | 16 / DPDT, two changeover contacts per channel |
| Relay | G2RL-2 |
| Relay contact class | 8 A at 250 VAC / 30 VDC; subject to assembly limits |
| Maximum relay switching voltage | 440 VAC / 300 VDC; not simultaneously at rated current |
| Input protection in family table | miniSMDC050F 500 mA resettable fuse; SMF36CA 36 V TVS; confirm supply variant |
| Output protection | Basic model; optional suppression/fusing requires a confirmed order code |
| 16-channel basic outline | 250 × 87 × 51 mm; ±1 mm |
| Parameter | Published value |
|---|---|
| Screw terminals | M2.5; 5.0 mm pitch; 10 A / 300 V |
| Wire / torque / stripping | 22–12 AWG / 0.4 N·m / 6–7 mm |
| 16-channel MIL connector | Nextron DC2-2.54-20PS |
| Mounting | 35 mm DIN rail |
| Ambient | −40 to +70 °C; no condensation or icing; 5–85% RH |
| Code | Meaning |
|---|---|
| E / EM / EC / ECM | SPDT screw / spring / MIL-to-screw / MIL-to-spring |
| -F / -V | Fused / varistor |
| -KA-X / -KD-X / -KT-X | RC with varistor / flyback diode / TVS; 108 mm base; confirm availability |
| D | G2RL-2 DPDT, 8 A relay class |
| Spring terminal limits for alternatives | 8 A / 300 V; 22–16 AWG; strip 8–9 mm |
Selection & installation notes
- Confirm exact input supply, connector pinout and load type before installation. Isolate supplies before service.
- The relay 8 A class is not a complete module current rating. Confirm common-conductor and simultaneous-channel thermal limits.
- Shared family tables include fused variants and multiple relay coil voltages. Do not assume output fuses or all coil options are standard on RT-GL16DC.
- Screw terminals: strip 6–7 mm and tighten to 0.4 N·m. Pull gently to check retention. Grip the MIL plug body when disconnecting.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG relays — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
