ENMG / POWER RELAY MODULES
RT-GL16EC-F

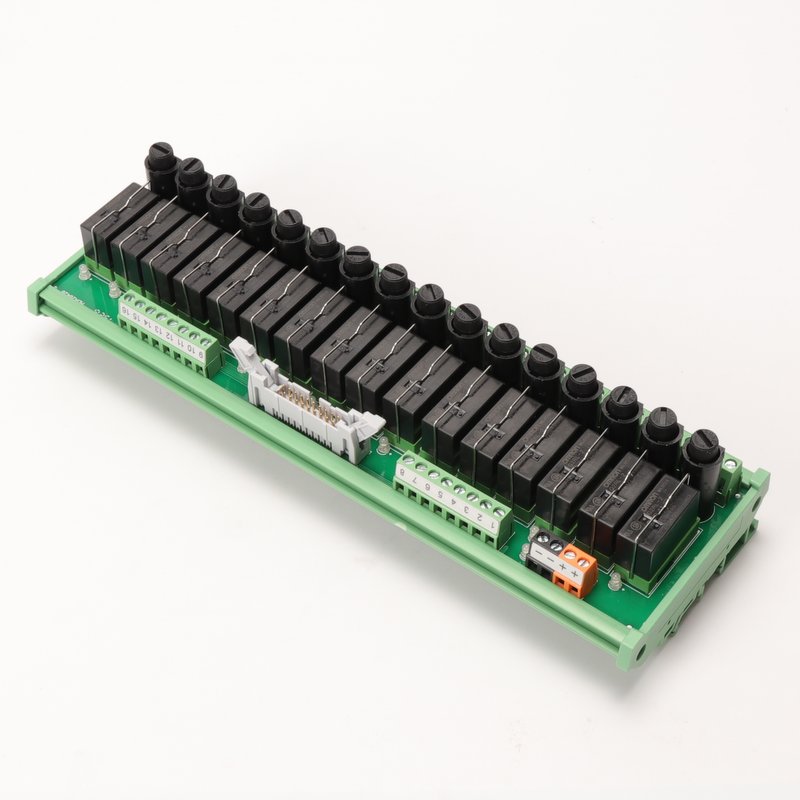

Fused 16-channel G2RL relay interface module
16-channel plug-in G2RL relay module with MIL input and screw output terminals for cabinet control interfaces.
Request a quote ↗TECHNICAL DATA / RT-GL16EC-F
Specifications & selection.
- G2RL-1-E SPDT, 16 A relay class.
- Individual fuse holders and fuse-status indication.
- NPN/PNP control arrangement with DIN-rail mounting.
| Parameter | Published specification |
|---|---|
| Channels / contact form | 16 / SPDT per channel |
| Relay | G2RL-1-E |
| Relay contact rating | 16 A at 250 VAC / 30 VDC; subject to module limits |
| Maximum relay switching voltage | 440 VAC / 300 VDC; not at rated current |
| Input example | RT-GL16EC-F 24V; confirm exact coil/module supply |
| Input protection | miniSMDC050F 500 mA; SMF36CA 36 V TVS |
| Output fuse | Ø5 × 20 mm gG RO54; source lists 5 A / 10 A at 250 V |
| 16-channel fused outline | 250 × 87 × 59 mm; ±1 mm |
| Parameter | Published value |
|---|---|
| Screw terminals | M2.5; 5.0 mm pitch; 10 A / 300 V |
| Wire / torque / stripping | 22–12 AWG / 0.4 N·m / 6–7 mm |
| 16-channel MIL connector | Nextron DC2-2.54-20PS |
| Mounting | 35 mm DIN rail |
| Ambient | −40 to +70 °C; no condensation or icing; 5–85% RH |
| Code | Meaning |
|---|---|
| E / EM / EC / ECM | SPDT screw / spring / MIL-to-screw / MIL-to-spring |
| -F / -V | Fused / varistor |
| -KA-X / -KD-X / -KT-X | RC with varistor / flyback diode / TVS; 108 mm base; confirm availability |
| D | G2RL-2 DPDT, 8 A relay class |
| Spring terminal limits for alternatives | 8 A / 300 V; 22–16 AWG; strip 8–9 mm |
Selection & installation notes
- Confirm the complete order code, input supply, connector pinout and load type before connection. Isolate all supplies before replacing relays or fuses.
- The relay current class is not the complete module continuous-current rating. Apply terminal, fuse, common-conductor and thermal limits, especially with multiple channels on.
- Replace a fuse only with the specified type, rating and breaking capacity. Verify protection coordination for the actual fault current.
- The 16 A relay class exceeds the 10 A screw-terminal and listed 5 A / 10 A fuse ratings. Obtain the complete module load rating and simultaneous-channel derating.
- The generic relay table combines several G2R/G2RL variants and coil voltages. Do not transfer all listed coil options or maxima to this exact module.
- The 20 A row uses RG-GL rather than RT-GL; that order code is not confirmed here.
- Nominal base board width is different from overall module width. Use the model-specific outline and ensure ventilation.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG relays — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
