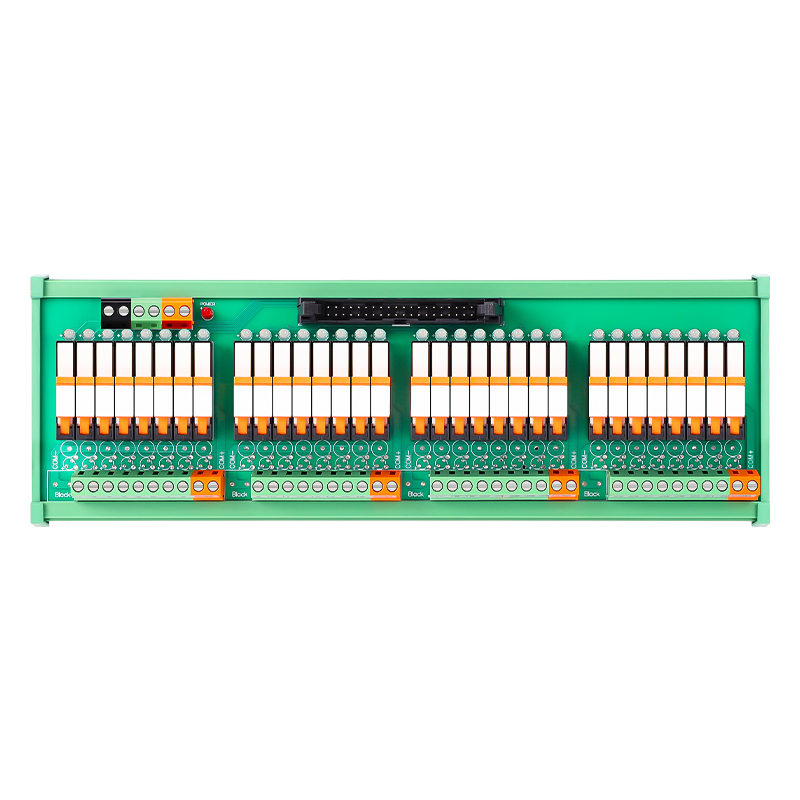

RT-HF41F
Slim plug-in relay modules with 4 to 32 channels
HF41F relay interfaces with one normally open contact per channel, input protection and status indication for PLC cabinet outputs.
Request a quote ↗TECHNICAL DATA / RT-HF41F
Specifications & selection.
- 4, 8, 16 and 32-channel variants.
- Screw or MIL input; 20-pin connector for 16 channels and 40-pin for 32.
- Replaceable slim relays and NPN/PNP input arrangements.
| Model | Channels / input | Outline | Mass |
|---|---|---|---|
| RT-HF41F24ZS-04S | 4 / screw; four-point shared COM | 42 × 87 × 60 mm | 90 g |
| RT-HF41F24ZS-08S | 8 / screw | 72 × 87 × 60 mm | 150 g |
| RT-HF41F24ZS-16S | 16 / screw | 132 × 87 × 60 mm | 230 g |
| RT-HF41F24ZS-16C | 16 / MIL | 132 × 87 × 60 mm | 230 g |
| RT-HF41F24ZS-32C | 32 / MIL | 252 × 87 × 60 mm | 450 g |
| RT-HF41F24ZS-32C-OD | 32 / customer-specific | 252 × 87 × 60 mm | 450 g |
| Parameter | Specification |
|---|---|
| Contacts / rated load | SPST-NO / 6 A at 250 VAC or 30 VDC |
| Maximum switching voltage | 400 VAC / 125 VDC |
| Maximum current / power | 6 A / 1500 VA or 180 W; separate limits |
| Coil voltage codes | 12 / 24 / 60 VDC; 5 VDC optional |
| Coil power | 170 mW |
| Coil-to-contact withstand | 4 kV; duration not specified |
| Contact resistance | ≤100 mΩ at 1 A / 6 VDC |
| Operate / release | ≤8 / ≤4 ms |
| Parameter | Specification |
|---|---|
| Mounting | 35 mm DIN or two M4 screws |
| Screw terminals | M2.5, 5.0 mm pitch; 10 A / 300 V |
| Wire / torque / stripping | 22–12 AWG / 0.4 N·m / 6–7 mm |
| MIL connector | Nextron DC2-2.54-20PS or DC2-2.54-40PS |
| Input protection | Resettable fuse and transient diode |
| Operation / storage | −30 to +80 °C / −30 to +100 °C |
| Humidity | 45–85% RH; no condensation or icing |
Selection & installation notes
- Maximum switching voltage, current and power are separate limits. Confirm shared-COM current and simultaneous-channel derating; do not multiply the 6 A relay rating by the channel count.
- The source uses both short and expanded order-code formats. Confirm the exact voltage and terminal order code before purchase.
- Optional output suppression must match AC/DC load voltage and energy. Isolate all supplies before releasing the relay latch or unplugging connectors.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG relays — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
