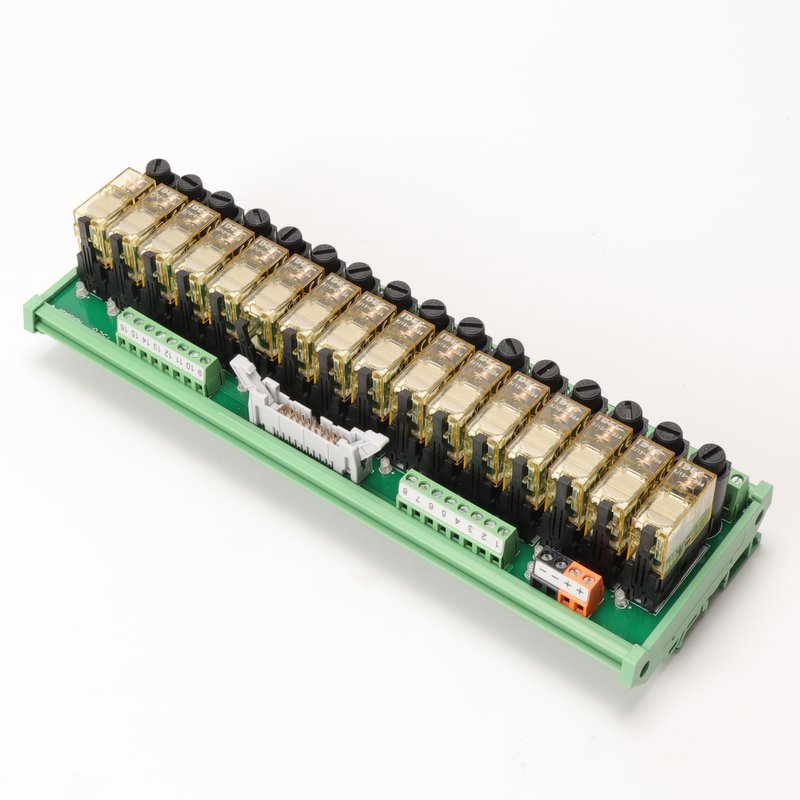

RT-K16CC-F
Fused RJ relay module with 16-channel MIL input
RJ-family plug-in relay module with MIL input, screw output terminals and individual output fuse holders.
Request a quote ↗TECHNICAL DATA / RT-K16CC-F
Specifications & selection.
- 16-channel SPDT configuration in the named model.
- RJ1S / RJ2S wide-pin relay family.
- Common-positive or common-negative control input.
| Parameter | RJ1S SPDT | RJ2S DPDT |
|---|---|---|
| Switching capacity | 12 A at 250 VAC / 30 VDC | 8 A at 250 VAC / 30 VDC |
| Rated load row | 10 A at 250 VAC / 30 VDC | 5 A at 250 VAC / 30 VDC |
| Contact material | Silver-nickel | Silver-nickel |
| Initial resistance | ≤50 mΩ | ≤50 mΩ |
| Operate / release | ≤15 / ≤10 ms | ≤15 / ≤10 ms |
| Coil power | Approximately 0.53 W DC / 0.9 VA AC | Approximately 0.53 W DC / 0.9 VA AC |
| Parameter | Published value |
|---|---|
| Screw terminals | M2.5; 5.0 mm pitch; 10 A / 300 V |
| Wire / torque / stripping | 22–12 AWG / 0.4 N·m / 6–7 mm |
| 16-channel MIL connector | Nextron DC2-2.54-20PS |
| Mounting | 35 mm DIN rail |
| Ambient | −40 to +70 °C; no condensation or icing; 5–85% RH |
| Item | Published value |
|---|---|
| Output fuse | Ø5 × 20 mm gG RO54, 10 A / 250 V per channel |
| Commoning limit | 10 A total when output COM terminals are internally joined |
| Input protection | Fuse standard; TVS optional in detailed section |
| 16-channel outline options | 252 or 260 × 88 × 60 mm, fused; ±1 mm |
| Mass | Not supplied |
| Code pattern | Configuration |
|---|---|
| RT-K02C through RT-K16C | SPDT basic; explicitly listed 2 / 4 / 6 / 8 / 10 / 12 / 16 channels |
| -V / -F | Overvoltage protection / fused output |
| RT-K02D through RT-K16D | DPDT basic |
| Additional C after contact code | MIL input / screw output |
Selection & installation notes
- Confirm the complete order code, input supply, connector pinout and load type before connection. Isolate all supplies before replacing relays or fuses.
- The relay current class is not the complete module continuous-current rating. Apply terminal, fuse, common-conductor and thermal limits, especially with multiple channels on.
- Replace a fuse only with the specified type, rating and breaking capacity. Verify protection coordination for the actual fault current.
- The headline 12 A conflicts with a 10 A rated-load row and 10 A terminal/fuse limits. Do not treat this as a verified 12 A continuous assembly.
- The source reverses COM+/COM− LED colors between sections. Use the terminal diagram, not LED color, to identify polarity.
- The relay coil table spans AC and DC versions; it does not establish input supply availability for every module. Specify the exact input voltage and confirm the 16-channel footprint.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
