ENMG / RELAY INTERFACE MODULES
RT-K-X / RT-ME-X

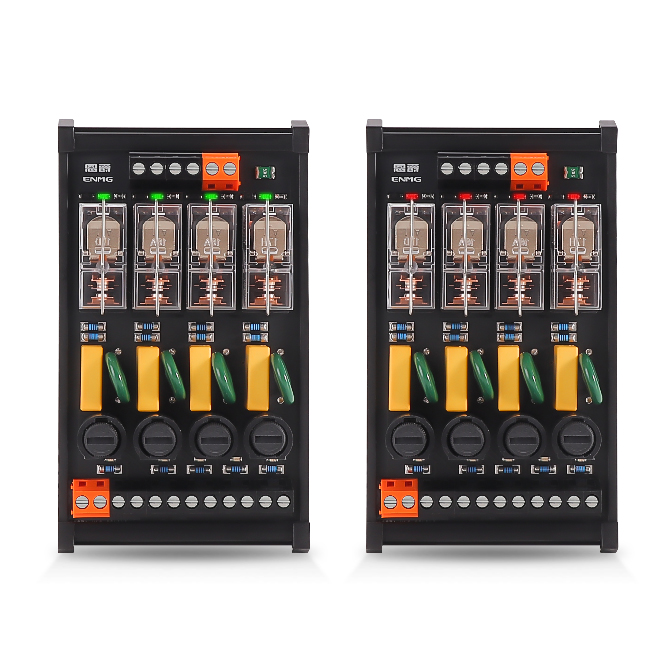

Power relay modules with RC load suppression
The catalogue entry titled RT-K-X supplies RT-ME-X upgrade selection data for four, eight and sixteen-channel relay modules with load fuses and RC suppression.
Request a quote ↗TECHNICAL DATA / RT-K-X / RT-ME-X
Specifications & selection.
- G2R-1-E relay class; alternative G2RL-1-E by specification.
- Each output below 5 A resistive; each four-output group below 10 A in source.
- KA, KD and KT suppression with screw or spring terminals.
| Channels | Suppression | Screw | Spring |
|---|---|---|---|
| 4 | KA | RT-M04E-KA-X | RT-M04EM-KA-X |
| 4 | KD | RT-M04E-KD-X | RT-M04EM-KD-X |
| 4 | KT | RT-M04E-KT-X | RT-M04EM-KT-X |
| 8 | KA | RT-M08E-KA-X | RT-M08EM-KA-X |
| 8 | KD | RT-M08E-KD-X | RT-M08EM-KD-X |
| 8 | KT | RT-M08E-KT-X | RT-M08EM-KT-X |
| 16 | KA | RT-M16E-KA-X | RT-M16EM-KA-X |
| 16 | KD | RT-M16E-KD-X | RT-M16EM-KD-X |
| 16 | KT | RT-M16E-KT-X | RT-M16EM-KT-X |
| Parameter | Value |
|---|---|
| Control supply | 5 / 12 / 24 VDC; exact variant required |
| Relay contact class | 1 CO, 16 A at 250 VAC / 30 VDC; module limits are lower |
| Complete-module load limits | Per output <5 A; per four-output group <10 A, resistive |
| Input fuse | 4/8 channels: miniSMDC050F 500 mA; 16: Ø5 × 20 mm 2 A gG |
| Output fuse | Ø5 × 20 mm 5 A / 250 V gG |
| Coil suppression | SMF36CA 36 V TVS |
| RC network | 50 Ω / 0.5 W and 0.1 μF / 310 VAC |
| KA / KD / KT devices | 14D471 varistor / BY255GP diode / 1.5KE36CA TVS; optional 68CA |
| Ambient | −40 to +70 °C; 5–85% RH, non-condensing |
| Parameter | Screw | Spring |
|---|---|---|
| Component rating | 10 A / 300 V | 8 A / 300 V |
| Wire | 22–12 AWG | 22–16 AWG |
| Strip / torque | 6–7 mm / 0.4 N·m | 8–9 mm / no screw |
| Pitch | 5 mm, M2.5 | 5 mm |
| Current -X L × W × H | 4:70; 8:130; 16:248 × 124 × 60 mm | Same original outline |
| Legacy outline | 4:72; 8:132 × 87 × 60 mm | Verify exact variant |
Selection & installation notes
- The catalogue title says RT-K-X, while the actual official selection chart uses RT-ME-X. Order using a confirmed full RT-M code from the chart; no RT-K-X-to-RT-M substitution is assumed.
- The prose gives a 125 V KT limit despite specifying a 1.5KE36CA suppressor, and KD mentions 125 V despite the relay’s 30 VDC resistive rating. Obtain a load-specific approved voltage; do not use either 125 V statement as the module rating.
- 108 mm is board width, not overall width; the current original drawing shows 124 mm. Dimensions are L × W × H with ±1 mm source tolerance.
- RC suppression across NO contacts causes off-state leakage and load voltage. Provide isolation for service and verify compatibility with small electronic loads.
- Confirm load energy, suppression polarity, fuse coordination and common wiring. Input NPN/PNP compatibility does not remove output polarity requirements.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG relays — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
