RT-M16E-F
Fused 16-channel power relay module
Plug-in power relay module with output fuses, status indication and selectable field-connection arrangements.
Request a quote ↗TECHNICAL DATA / RT-M16E-F
Specifications & selection.
- 16 channels in the named model.
- G2R-1-E SPDT 16 A relay class in the selection chart.
- NPN/PNP input and 35 mm DIN installation.
| Model | Input / output |
|---|---|
| RT-M16E-F | Screw / screw |
| RT-M16EM-F | Spring / spring |
| RT-M16EC-F | MIL / screw |
| RT-M16ECM-F | MIL / spring |
| Code | Meaning |
|---|---|
| M / ML | G2R / G2RL relay family |
| E | SPDT, 16 A relay class |
| S | SPDT, 10 A relay class |
| D | DPDT; 5 A in naming graphic, 8 A in selection graphic |
| F / V | Fuse / varistor |
| KA / KD / KT | RC + varistor / flyback diode / bidirectional TVS |
| X | 108 mm base board |
| Input voltage options in naming image | 5 / 12 / 24 VDC |
Selection & installation notes
- Confirm the complete order code, input supply, connector pinout and load type before connection. Isolate all supplies before replacing relays or fuses.
- The relay current class is not the complete module continuous-current rating. Apply terminal, fuse, common-conductor and thermal limits, especially with multiple channels on.
- Replace a fuse only with the specified type, rating and breaking capacity. Verify protection coordination for the actual fault current.

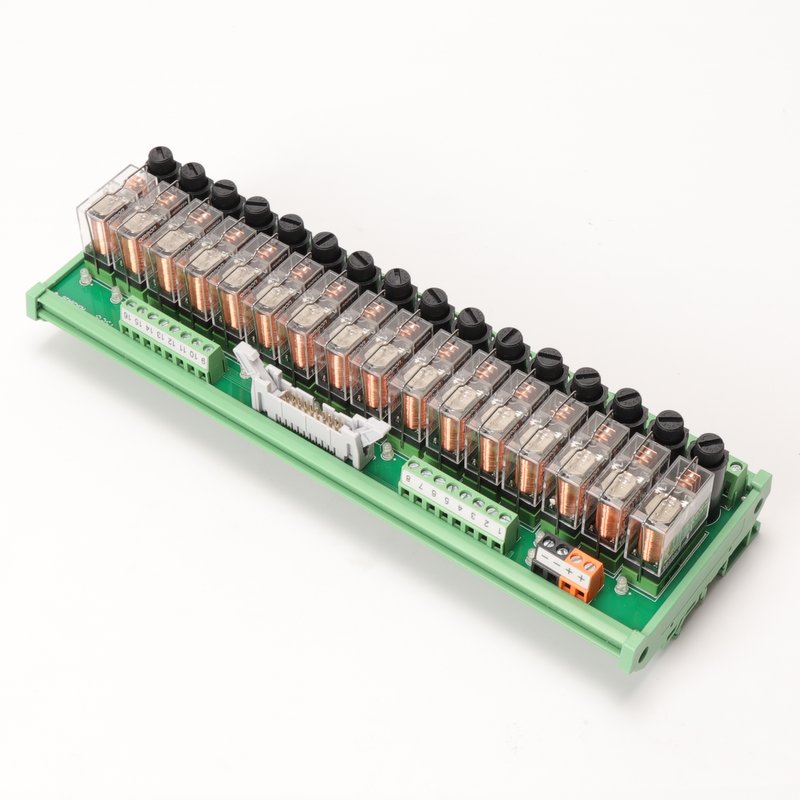

- The photographed module has a MIL connector, while the named RT-M16E-F has no C suffix. It illustrates the MIL variant; confirm the terminal arrangement in the order.
- The page does not supply complete module current, fuse rating, dimensions, wire range or ambient limits. Do not import those values from another RT family.
- DPDT ratings conflict between the images and prose. This page centers on the E SPDT variant; confirm any D variant separately.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG relays — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
