ENMG / RELAY INTERFACE MODULES
RT-MD
DPDT plug-in power relay modules
RT-M family interfaces with two changeover contacts per channel, replaceable G2R relays and selectable field terminals.
Request a quote ↗TECHNICAL DATA / RT-MD
Specifications & selection.
- DPDT: two normally open and two normally closed contacts per channel.
- 2, 4, 6, 8, 10, 12 and 16-channel codes in the family naming chart.
- NPN/PNP input and 35 mm DIN-rail installation described on the official page.
| Model pattern | Connection |
|---|---|
| RT-M**D | Screw input and output |
| RT-M**DM | Spring input and output |
| RT-M**DC | MIL input / screw output |
| RT-M**DCM | MIL input / spring output |
| Item | Source information |
|---|---|
| Relay family | G2R-2 in selection chart |
| Contact current | 5 A in title and naming chart; selection chart says 8 A — unresolved |
| Input voltage codes | 5 / 12 / 24 VDC; confirm availability |
| Protection | Basic D versions listed; protection options require confirmation |
Selection & installation notes
- Confirm the full order code, channel count, input voltage and wiring diagram before ordering. Isolate all supplies before installation or relay replacement.
- The official page does not provide verified module dimensions, terminal capacity, wiring torque or ambient limits. Request the exact assembly drawing and datasheet.
- Relay contact current classes do not establish the complete module current rating; check common-conductor limits and simultaneous-channel derating.
- The 5 A / 8 A source conflict is unresolved. Do not select a load current from the higher figure; obtain the exact relay and assembly ratings.

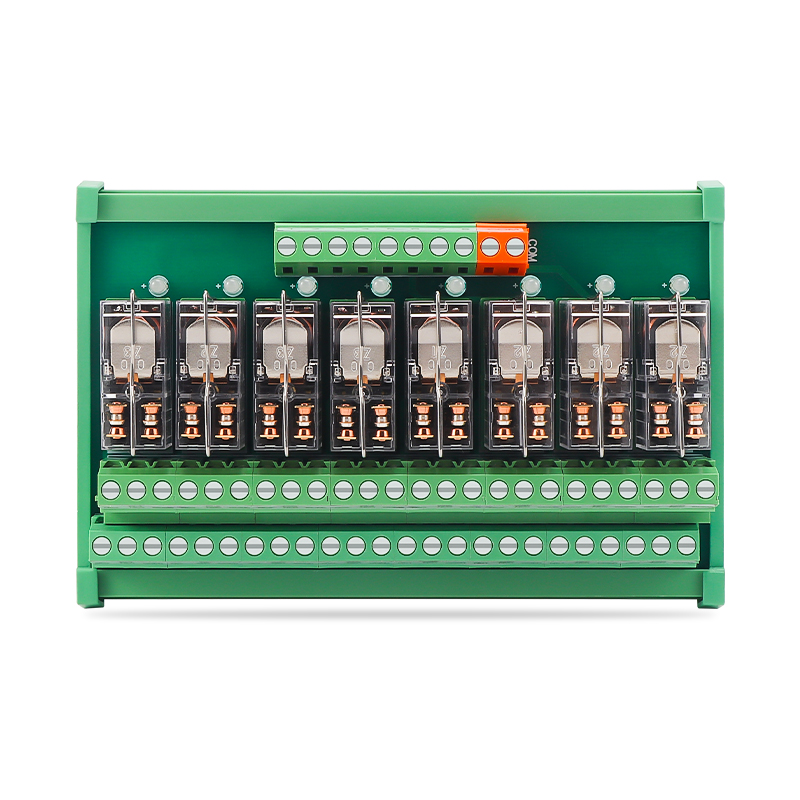

- The photo shows an eight-channel spring-terminal configuration and is a family illustration.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG relays — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
