ENMG / RELAY INTERFACES
RT-ME-K

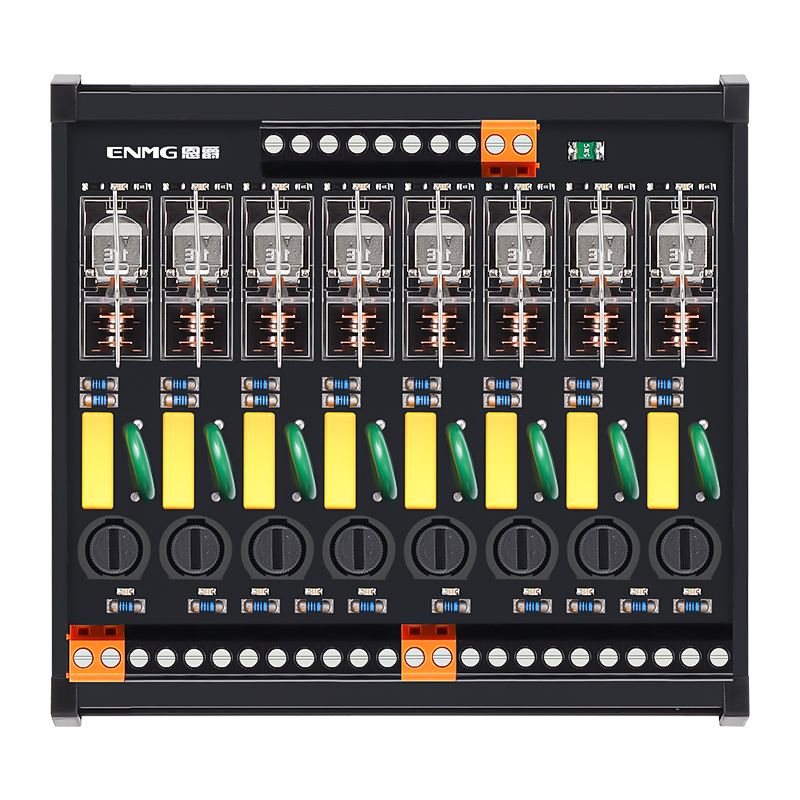

Power relay modules with RC and load suppression
DIN-rail relay assemblies for interfacing solenoids, valves and other inductive loads, with SPDT power relays and application-specific suppression circuits.
Request a quote ↗TECHNICAL DATA / RT-ME-K
Specifications & selection.
- 4, 8 and 16-channel replacement models in the current selection chart.
- Screw and spring-terminal replacement options.
- Non-polarized NPN/PNP input and replaceable relays described in the linked legacy technical sheet.
| Channels | Legacy screw model | Replacement screw model | Replacement spring model | Suppression device |
|---|---|---|---|---|
| 4 | RT-M04E-KD | RT-M04E-KD-X | RT-M04EM-KD-X | BY255GP flyback diode |
| 4 | RT-M04E-KT | RT-M04E-KT-X | RT-M04EM-KT-X | 1.5KE36CA bidirectional TVS |
| 4 | RT-M04E-KA | RT-M04E-KA-X | RT-M04EM-KA-X | 14D471 varistor |
| 8 | RT-M08E-KD | RT-M08E-KD-X | RT-M08EM-KD-X | BY255GP flyback diode |
| 8 | RT-M08E-KT | RT-M08E-KT-X | RT-M08EM-KT-X | 1.5KE36CA bidirectional TVS |
| 8 | RT-M08E-KA | RT-M08E-KA-X | RT-M08EM-KA-X | 14D471 varistor |
| 16 | Not listed | RT-M16E-KD-X | RT-M16EM-KD-X | BY255GP flyback diode |
| 16 | Not listed | RT-M16E-KT-X | RT-M16EM-KT-X | 1.5KE36CA bidirectional TVS |
| 16 | Not listed | RT-M16E-KA-X | RT-M16EM-KA-X | 14D471 varistor |
| Parameter | Published value |
|---|---|
| Relay | G2R-1-E; SPDT, 16 A relay class — not a 16 A assembly rating |
| Input options | 5 / 12 / 24 VDC; select coil voltage |
| KD load voltage | Below 125 VDC |
| KT load voltage | Below 36 VDC / VAC |
| KA load voltage | Below 250 VAC |
| 4-channel outline / mass | 72 × 87 × 60 mm / 170 g |
| 8-channel outline / mass | 132 × 87 × 60 mm / 350 g |
| Input protection | miniSMDC050F resettable fuse, 500 mA; SMF36CA 36 V TVS |
| RC circuit | 120 Ω / 0.25 W + 0.01 μF / 630 V |
| Legacy KA / KD / KT | 10D471 varistor / BY255GP diode / 1.5KE36CA TVS (68CA optional) |
| Output fuse | Ø5 × 20 mm, 10 A / 250 V; sheet specifies 8-channel only |
| Legacy screw terminals | M2.5, 5.0 mm pitch; 10 A / 300 V |
| Legacy wiring | 22–12 AWG; 0.4 N·m; strip 6–7 mm |
| Mounting | 35 mm DIN rail |
| Ambient | −40 to +70 °C, no condensation or icing; 5–85% RH |
Selection & installation notes
- The 16 A figure describes the relay contact class. The legacy sheet specifies 10 A terminals and an 8-channel 10 A fuse; confirm the complete assembly load rating and derating.
- Legacy dimensions, wiring and protection-component values are not confirmed for current -X replacements. The current chart lists 14D471 while the legacy sheet lists 10D471. Request the exact assembly specification.
- In the legacy design, suppression is connected to normally open contacts; normally closed operation does not receive that protection.
- Select suppression to suit AC/DC voltage and load energy; default components do not suit every inductive load.
- The source gives inconsistent NPN/PNP versus LED-color mapping. Verify terminal markings and the exact wiring diagram. Isolate supplies before service.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG relays — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
