ENMG / RELAY INTERFACE MODULES
RT-P / RT-E
Compact plug-in relay interface modules
PA-N and APAN relay interfaces spanning basic, fused advanced and barrier-terminal arrangements for cabinet control wiring.
Request a quote ↗TECHNICAL DATA / RT-P / RT-E
Specifications & selection.
- 4 to 32 channels depending on configuration.
- 5, 12 or 24 VDC coils and NPN/PNP input options.
- Advanced -L / -X versions have per-channel 5 A / 250 V slow-blow fuses.
| Model | Output arrangement | Outline | Mass |
|---|---|---|---|
| RT-P04S | 4 independent | Drawing required | 67 g |
| RT-P06S | 6; 3 / COM | 65 × 54 × 33 mm | 78 g |
| RT-P08S | 8; 4 / COM | Drawing required | 90 g |
| RT-P10S | 10; 5 / COM | 80 × 54 × 33 mm | 110 g |
| RT-P16S | 16; 4 / COM | 110 × 54 × 33 mm | 162 g |
| RT-P08C-1 | 8; MIL; 4 / COM | 65 × 54 × 33 mm | 83 g |
| RT-P16C | 16; MIL; 8 / COM | 110 × 54 × 33 mm | 148 g |
| RT-P16C-1 | 16; alternate MIL orientation | 110 × 54 × 33 mm | 151 g |
| Model | Channels | Outline |
|---|---|---|
| RT-P04M-L / RT-P04S-L | 4 | 38 × 87 × 50 mm |
| RT-P06M-L / RT-P06S-L | 6 | 48 × 87 × 50 mm |
| RT-P08M-L / RT-P08S-L | 8 | 60 × 87 × 50 mm |
| RT-P10M-L / RT-P10S-L | 10 | 72 × 87 × 50 mm |
| RT-P12M-L / RT-P12S-L | 12 | 84 × 87 × 50 mm |
| RT-P16M-L / RT-P16S-L | 16 | 110 × 87 × 50 mm |
| RT-P32M-L / RT-P32S-L | 32 | 220 × 87 × 50 mm |
| RT-P16AS-L | 16 independent | 110 × 87 × 50 mm |
| RT-P32CM-X / RT-P32CS-X | 32 MIL input | 135 × 120 × 52 mm |
| Models | Configuration |
|---|---|
| RT-P04M / 06M / 08M / 10M | Basic spring terminals |
| RT-P08CM-1 | 8-channel MIL input / spring output |
| RT-P04S-K / RT-P04S-E | 4 independent barrier-terminal channels |
| RT-P16NC-K / RT-P32NC-K | 16 / 32, NPN MIL input, barrier output; four / COM |
| Parameter | Published value |
|---|---|
| Relay / contacts | P: PA-N; E: APAN / SPST-NO |
| Rated resistive load | 5 A at 250 VAC / 30 VDC; verify complete module limits |
| Initial resistance | Maximum 30 mΩ |
| Coil / timing | 110 mW per channel; operate 10 ms, release 5 ms |
| Mechanical / electrical life | Over 20 million / 100,000 operations; conditions not supplied |
| Input protection | miniSMDC050F 500 mA; SMF36CA 36 V TVS |
| Screw cage terminal | M2.5, 5.0 mm; 10 A / 300 V; 22–12 AWG; 0.4 N·m; strip 6–7 mm |
| Spring terminal | 5.0 mm; 10 A / 300 V; 22–12 AWG; strip 6–7 mm |
| Family ambient | −40 to +70 °C; 5–85% RH; no condensation or icing |
| Withstand / enclosure | 2500 VAC, 1 minute, test points not specified / IP20 |
Selection & installation notes

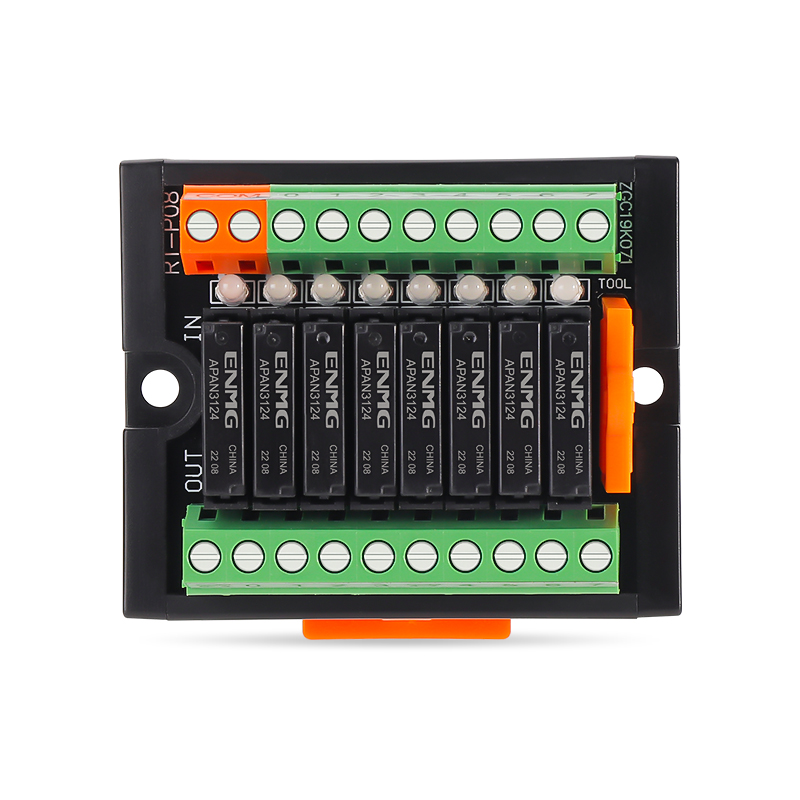

- The photograph shows APAN relays and illustrates an RT-E equivalent. Confirm P versus E, contact grouping and exact terminals.
- The generic barrier-terminal torque of 1.2 N·m conflicts with 0.3–0.5 N·m on the dedicated RT-P04S-K page. Do not apply the generic value to -K without exact instructions; ambient values also differ.
- The 5 A contact rating does not establish shared-COM capacity or simultaneous-channel rating. Match bridge conductors and output protection to actual loads.
- Basic models support DIN or surface screws; advanced models use 35 mm DIN. Board width is not overall width.
- Isolate input and load supplies before replacing relays or fuses; use the exact specified fuse type. Confirm the full input voltage and polarity order code.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG relays — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
