ENMG / SOLID-STATE INTERFACES
RT-PMN

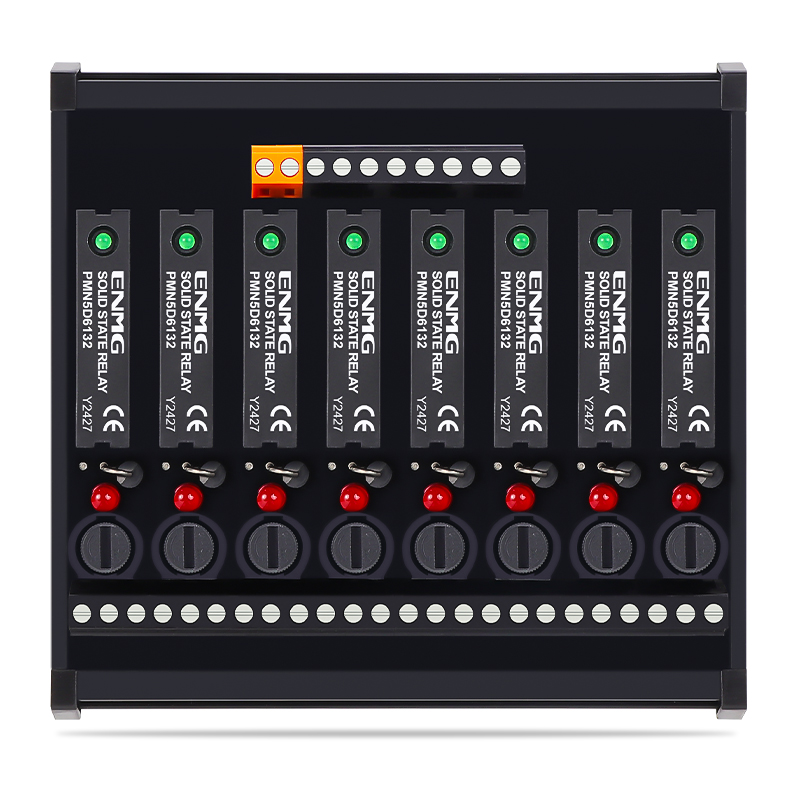

Fused solid-state relay interface modules
Optically isolated multi-channel interfaces with independent load circuits, semiconductor-protection fuses and status indication.
Request a quote ↗TECHNICAL DATA / RT-PMN
Specifications & selection.
- 2, 4, 6, 8, 10, 12 and 16-channel selections.
- AC, DC and AC/DC relay options with 5–24 VDC control.
- Screw, spring and MIL input options.
| Channels | Screw configuration | Spring configuration |
|---|---|---|
| 2 | RT-PMN10K6132-02S-FX | RT-PMN10K6132-02M-FX |
| 4 | RT-PMN10K6132-04S-FX | RT-PMN10K6132-04M-FX |
| 6 | RT-PMN10K6132-06S-FX | RT-PMN10K6132-06M-FX |
| 8 | RT-PMN10K6132-08S-FX | RT-PMN10K6132-08M-FX |
| 10 | RT-PMN10K6132-10S-FX | RT-PMN10K6132-10M-FX |
| 12 (6 × 2) | RT-PMN10K6132-12S-FX | RT-PMN10K6132-12M-FX |
| 16 (8 × 2) | RT-PMN10K6132-16S-FX | RT-PMN10K6132-16M-FX |
| 16 / MIL input | RT-PMN10K6132-16C-FX | RT-PMN10K6132-16CM-FX |
| Channels | Screw configuration | Spring configuration |
|---|---|---|
| 2 | RT-PMN5D6132-02S-FX | RT-PMN5D6132-02M-FX |
| 4 | RT-PMN5D6132-04S-FX | RT-PMN5D6132-04M-FX |
| 6 | RT-PMN5D6132-06S-FX | RT-PMN5D6132-06M-FX |
| 8 | RT-PMN5D6132-08S-FX | RT-PMN5D6132-08M-FX |
| 10 | RT-PMN5D6132-10S-FX | RT-PMN5D6132-10M-FX |
| 12 (6 × 2) | RT-PMN5D6132-12S-FX | RT-PMN5D6132-12M-FX |
| 16 (8 × 2) | RT-PMN5D6132-16S-FX | RT-PMN5D6132-16M-FX |
| 16 / MIL input | RT-PMN5D6132-16C-FX | RT-PMN5D6132-16CM-FX |
| Channels | Screw configuration | Spring configuration |
|---|---|---|
| 2 | RT-PMN5A2032-02S-FX | RT-PMN5A2032-02M-FX |
| 4 | RT-PMN5A2032-04S-FX | RT-PMN5A2032-04M-FX |
| 6 | RT-PMN5A2032-06S-FX | RT-PMN5A2032-06M-FX |
| 8 | RT-PMN5A2032-08S-FX | RT-PMN5A2032-08M-FX |
| 10 | RT-PMN5A2032-10S-FX | RT-PMN5A2032-10M-FX |
| 12 (6 × 2) | RT-PMN5A2032-12S-FX | RT-PMN5A2032-12M-FX |
| 16 (8 × 2) | RT-PMN5A2032-16S-FX | RT-PMN5A2032-16M-FX |
| 16 / MIL input | RT-PMN5A2032-16C-FX | RT-PMN5A2032-16CM-FX |
| Parameter | PMN5A | PMN5D | PMN10K |
|---|---|---|---|
| Control input | 5–24 VDC | 5–24 VDC | 5–24 VDC |
| Input common | Common positive / negative, NPN/PNP | Common positive / negative | Common positive / negative |
| Relay output class | 5 A / 220 VAC, zero cross | 5 A / 60 VDC | 10 A / 60 VAC/DC |
| Specified fast fuse | aR RS54, 2 A / 250 V | aR RS54, 2 A / 250 V | aR RS54, 5 A / 250 V |
| Output | Independently wired circuits | Independently wired circuits | Independently wired circuits |
| Item | Specification |
|---|---|
| S / M / C | Screw / spring / MIL input connector; CM variant listed in selection table |
| F | Semiconductor-protection fuse |
| Base board width | Default: 72 mm; X: 108 mm |
| Working indication | Green for conducting circuit |
| Fault indication | Fuse open or load open indication |
| Mounting | 35 mm DIN rail or screw fixing, depending on base |
| Outline / mass | Full L × W × H and mass not provided; board width is not overall width |
Selection & installation notes
- Relay current classes exceed the listed fuse ratings. Do not promise 5 A or 10 A continuous module operation without confirming the complete assembly current and fuse coordination.
- Select AC, DC or AC/DC output explicitly. Do not drive a DC load with the AC-only version.
- Replace fuses only with the specified semiconductor-protection type and breaking capacity; never bypass them. Confirm their suitability for the actual AC/DC fault circuit.
- Derate for simultaneous outputs, inrush, cabinet temperature and ventilation. The source does not give a module-wide thermal current limit.
- Request wire size, strip length, torque, full outline and operating-temperature limits for the exact assembly. Isolate power before wiring or servicing.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG relays — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
