ENMG / RELAY INTERFACE MODULES
RT-RXG

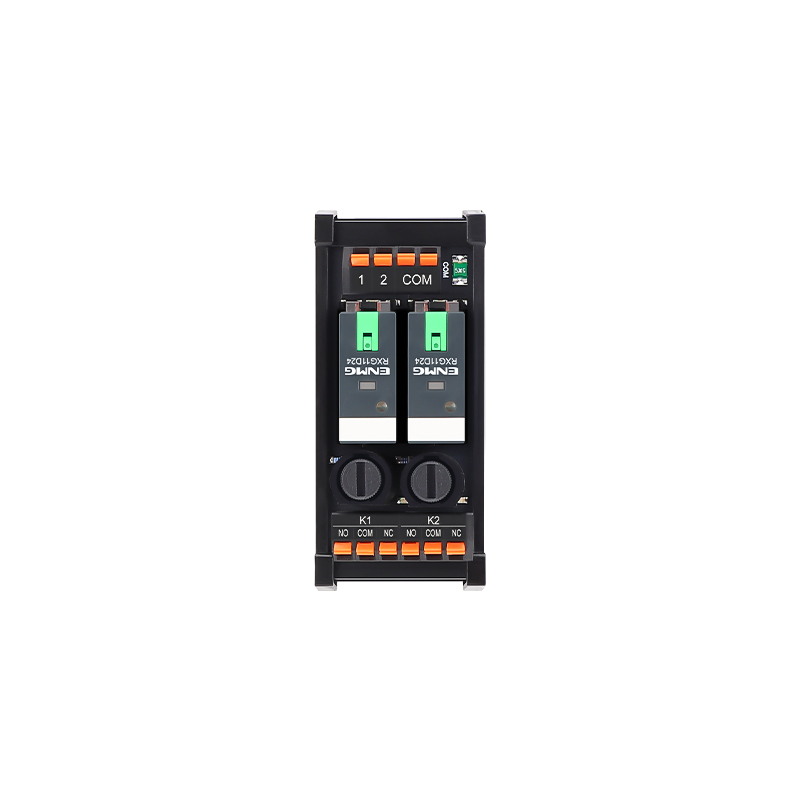

Relay interface modules with test levers and output protection
Multi-channel RXG relay assemblies for PLC and control-cabinet wiring, with manual relay testing, selectable terminal styles and load-protection options.
Request a quote ↗TECHNICAL DATA / RT-RXG
Specifications & selection.
- 2–16 channels with 1 CO 12 A or 2 CO 8 A relay classes.
- 24 VDC and 220 VAC standard coil selections.
- Fused, varistor and compound suppression options.
| Channels | RXG relay code | Relay contact class | Screw model | Spring model |
|---|---|---|---|---|
| 2 | 11D24 | 12 A / 1 CO | RT-RXG11D24-02S-F | RT-RXG11D24-02M-F |
| 4 | 11D24 | 12 A / 1 CO | RT-RXG11D24-04S-F | RT-RXG11D24-04M-F |
| 6 | 11D24 | 12 A / 1 CO | RT-RXG11D24-06S-F | RT-RXG11D24-06M-F |
| 8 | 11D24 | 12 A / 1 CO | RT-RXG11D24-08CS-F | RT-RXG11D24-08CM-F |
| 10 | 11D24 | 12 A / 1 CO | RT-RXG11D24-10S-F | RT-RXG11D24-10M-F |
| 12 | 11D24 | 12 A / 1 CO | RT-RXG11D24-12S-F | RT-RXG11D24-12M-F |
| 16 | 11D24 | 12 A / 1 CO | RT-RXG11D24-16CS-F | RT-RXG11D24-16CM-F |
| 2 | 11A22 | 12 A / 1 CO | RT-RXG11A22-02S-F | RT-RXG11A22-02M-F |
| 4 | 11A22 | 12 A / 1 CO | RT-RXG11A22-04S-F | RT-RXG11A22-04M-F |
| 6 | 11A22 | 12 A / 1 CO | RT-RXG11A22-06S-F | RT-RXG11A22-06M-F |
| 8 | 11A22 | 12 A / 1 CO | RT-RXG11A22-08S-F | RT-RXG11A22-08M-F |
| 10 | 11A22 | 12 A / 1 CO | RT-RXG11A22-10S-F | RT-RXG11A22-10M-F |
| 12 | 11A22 | 12 A / 1 CO | RT-RXG11A22-12S-F | RT-RXG11A22-12M-F |
| 16 | 11A22 | 12 A / 1 CO | RT-RXG11A22-16S-F | RT-RXG11A22-16M-F |
| 2 | 21D24 | 8 A / 2 CO | RT-RXG21D24-02S | RT-RXG21D24-02M |
| 4 | 21D24 | 8 A / 2 CO | RT-RXG21D24-04S | RT-RXG21D24-04M |
| 6 | 21D24 | 8 A / 2 CO | RT-RXG21D24-06S | RT-RXG21D24-06M |
| 8 | 21D24 | 8 A / 2 CO | RT-RXG21D24-08CS | RT-RXG21D24-08CM |
| 10 | 21D24 | 8 A / 2 CO | RT-RXG21D24-10S | RT-RXG21D24-10M |
| 12 | 21D24 | 8 A / 2 CO | RT-RXG21D24-12S | RT-RXG21D24-12M |
| 16 | 21D24 | 8 A / 2 CO | RT-RXG21D24-16CS | RT-RXG21D24-16CM |
| 2 | 21A22 | 8 A / 2 CO | RT-RXG21A22-02S | RT-RXG21A22-02M |
| 4 | 21A22 | 8 A / 2 CO | RT-RXG21A22-04S | RT-RXG21A22-04M |
| 6 | 21A22 | 8 A / 2 CO | RT-RXG21A22-06S | RT-RXG21A22-06M |
| 8 | 21A22 | 8 A / 2 CO | RT-RXG21A22-08S | RT-RXG21A22-08M |
| 10 | 21A22 | 8 A / 2 CO | RT-RXG21A22-10S | RT-RXG21A22-10M |
| 12 | 21A22 | 8 A / 2 CO | RT-RXG21A22-12S | RT-RXG21A22-12M |
| 16 | 21A22 | 8 A / 2 CO | RT-RXG21A22-16S | RT-RXG21A22-16M |
| Configuration | Channels | L × W × H (mm) |
|---|---|---|
| Basic / fused | 2 | 40 × 87 × 68 |
| Basic / fused | 4 | 70 × 87 × 68 |
| Basic / fused | 6 | 100 × 87 × 68 |
| Basic / fused | 8 | 130 × 87 × 68 |
| Basic / fused | 10 | 160 × 87 × 68 |
| Basic / fused | 12 | 190 × 87 × 68 |
| Basic / fused | 16 | 250 × 87 × 68 |
| Compound arc suppression | 4 | 70 × 124 × 69 |
| Compound arc suppression | 8 | 130 × 124 × 69 |
| Compound arc suppression | 16 | 248 × 124 × 69 |
| Parameter | Value |
|---|---|
| Relay rating voltage | 250 VAC / 30 VDC |
| Coil consumption per channel | Approximately 0.53 W DC / 0.9 VA AC |
| Initial contact resistance | ≤50 mΩ |
| Operate / release | ≤15 / ≤10 ms |
| Input | NPN/PNP dual-use variants; verify exact common and supply |
| Input protection | Resettable fuse and coil transient suppression; component values not specified |
| Output options | V: varistor; F: fuse; KA: RC + varistor + fuse; KD: RC + diode + fuse; KT: RC + TVS + fuse |
| Mounting | 35 mm DIN rail |
| Ambient | −40 to +70 °C; 5–85% RH; no condensation or icing |
Selection & installation notes
- CS/CM MIL input combinations are listed for 8/16-channel DC models. Do not substitute a DC MIL input assembly for a 220 VAC model.
- 1 CO standard models have -F protection; 2 CO standard models do not. Confirm fuse value, terminal ratings, common-path capacity and complete-module derating before load sizing.
- The 72/108 mm board-width naming values are not overall dimensions. Use the configuration-specific 87/124 mm assembly outlines above and confirm the production drawing; image tolerance is ±0.5 mm.
- Match suppression to the load voltage, polarity and energy. The source does not establish a universal threefold life improvement or a load-independent current rating.
- Manual test levers can force output without a PLC command. Make the controlled equipment safe, restore the lever after testing, and isolate supplies before replacing relays or fuses.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG relays — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
