ENMG / RELAY INTERFACE MODULES
RT-SA

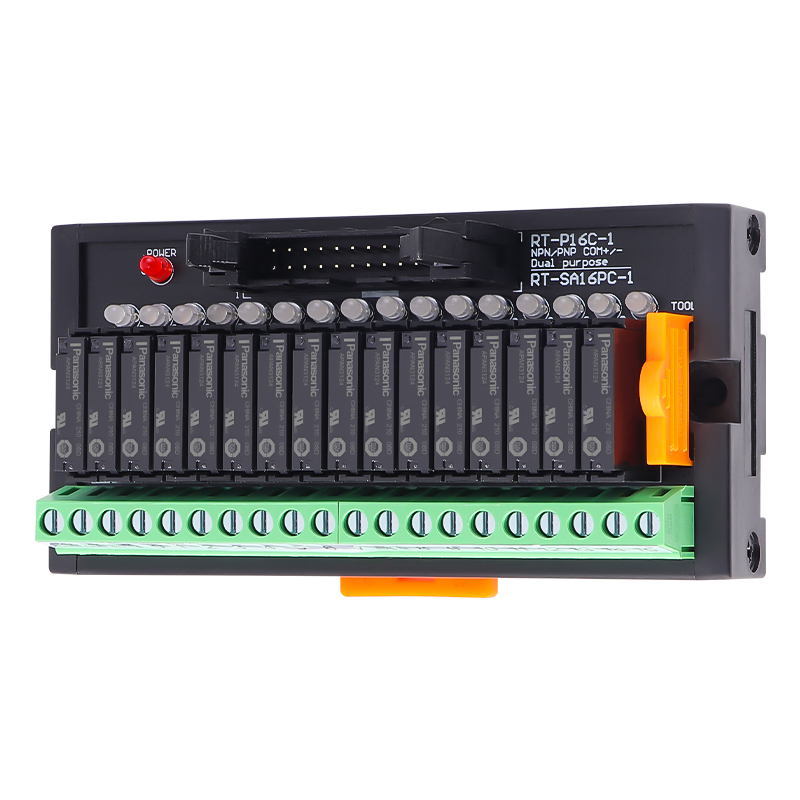

Compact bidirectional solid-state relay modules
Plug-in semiconductor interfaces with grouped or independent outputs, multiple terminal layouts and channel status indication.
Request a quote ↗TECHNICAL DATA / RT-SA
Specifications & selection.
- 4, 6, 8, 10, 16 and 32-channel selections.
- 4–30 VDC input range in the product table.
- Input resettable fuse and transient suppression; extraction tool supplied.
| Model | Channels / output | Input / output terminals | Outline L × W × H, mm |
|---|---|---|---|
| RT-SA04S-E (gray) | 4 independent | Barrier / barrier | 67 × 33 × 32 |
| RT-SA04S-K (gray) | 4 independent | Barrier / barrier | 67 × 33 × 38 |
| RT-SA04NS | 4 independent | Cage / cage | 67 × 33 × 38 |
| RT-SA06NS | 6; 3 / COM | NPN cage / cage | 65 × 54 × 33 |
| RT-SA08NS | 8; 4 / COM | NPN cage / cage | 80 × 54 × 33 |
| RT-SA10NS | 10; 5 / COM | NPN cage / cage | 80 × 54 × 33 |
| RT-SA16NS | 16; 4 / COM | NPN cage / cage | 110 × 54 × 33 |
| RT-SA16NC | 16; 8 / COM | NPN MIL20 / cage | 90 × 70 × 40 |
| RT-SA16NC-K (gray) | 16; 8 / COM | NPN MIL20 / barrier | 90 × 70 × 40 |
| RT-SA32NC-K (gray) | 32; 8 / COM | NPN MIL40 / barrier | 175 × 70 × 40 |
| RT-SA08PC-1 | 8; 4 / COM | PNP MIL10 / cage | 65 × 54 × 33 |
| RT-SA16PS-1 | 16; 8 / COM | PNP cage / cage | 110 × 54 × 33 |
| RT-SA16PC-1 | 16; 8 / COM | PNP MIL20 / cage | 110 × 54 × 33 |
| Parameter | Value |
|---|---|
| Standard output | 2.7 A / 60 VAC/DC in source; AC peak-versus-RMS definition must be confirmed |
| Custom maxima mentioned | 3.6 A or up to 400 V; not a combined rating |
| Input polarity | NPN / PNP / dual versions; confirm exact model |
| Barrier / cage terminal | M3 at 7.62 mm / M2.5 at 5 mm |
| Mounting | 35 mm DIN or screws |
| Wire / torque / environment / mass | Exact model-specific specification required |
Selection & installation notes
- The naming example calls an N-coded model dual-input and independent-output, but the table lists NPN and eight-per-COM. Use the ordered model wiring diagram to resolve this conflict.
- Confirm whether the 60 V AC figure is peak or RMS and obtain the exact semiconductor datasheet. Do not use optional 3.6 A and 400 V maxima together.
- Grouped outputs share COM limits; request total-current and thermal derating. A 2.7 A per-channel class is not a simultaneous full-load guarantee.
- The source intro gives 65.5 mm for six channels while its table gives 65 mm. Confirm the production drawing. Isolate supplies before using the relay extraction tool.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG relays — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
