RT-SSL

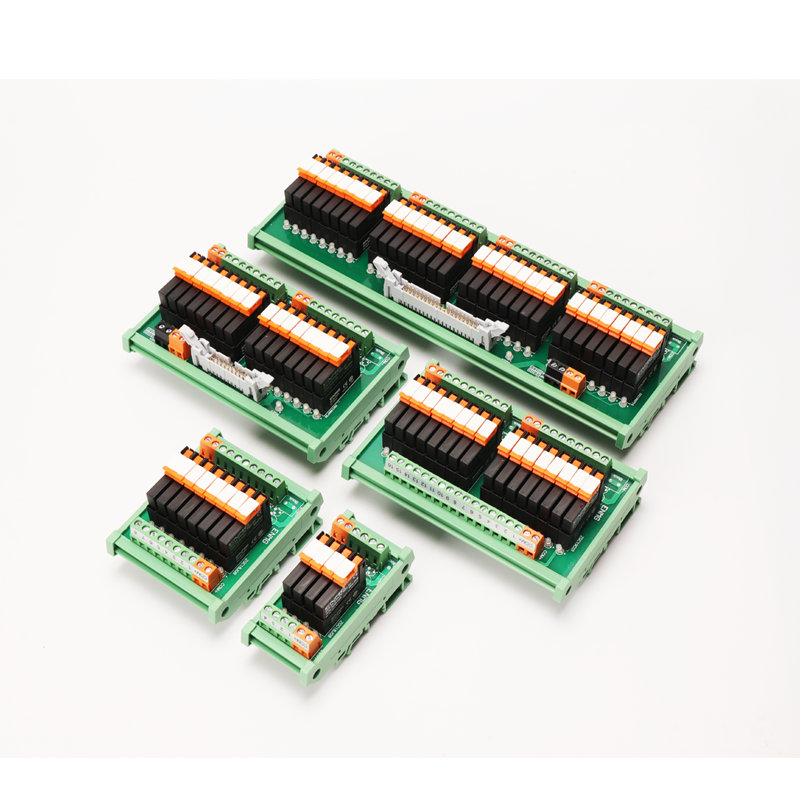

Multi-channel solid-state relay interface modules
DIN-rail solid-state interfaces with channel indication and screw-terminal or MIL input options.
Request a quote ↗TECHNICAL DATA / RT-SSL
Specifications & selection.
- 4, 8, 16 and 32-channel ordering options.
- AC zero-cross / random and DC 2 A / 6 A families.
- Load suppression depends on AC or DC variant.
| Model | Nominal channels | Input connection |
|---|---|---|
| RT-SSL2A2032-04NS | 4 | Screw |
| RT-SSL2A2032-08NS | 8 | Screw |
| RT-SSL2A2032-16NS | 16 | Screw |
| RT-SSL2A2032-16NC | 16 | MIL input |
| RT-SSL2A2032-32NC | 32 | MIL input |
| RT-SSL2A2132-04NS | 4 | Screw |
| RT-SSL2A2132-08NS | 8 | Screw |
| RT-SSL2A2132-16NS | 16 | Screw |
| RT-SSL2A2132-16NC | 16 | MIL input |
| RT-SSL2A2132-32NC | 32 | MIL input |
| RT-SSL2D6132-04NS | 4 | Screw |
| RT-SSL2D6132-08NS | 8 | Screw |
| RT-SSL2D6132-16NS | 16 | Screw |
| RT-SSL2D6132-16NC | 16 | MIL input |
| RT-SSL2D6132-32NC | 32 | MIL input |
| RT-SSL6D6132-04NS | 4 | Screw |
| RT-SSL6D6132-08NS | 8 | Screw |
| RT-SSL6D6132-16NS | 16 | Screw |
| RT-SSL6D6132-16NC | 16 | MIL input |
| RT-SSL6D6132-32NC | 32 | MIL input |
| Parameter | Published specification |
|---|---|
| Input | 5–24 VDC; approximately ≤10 mA per input |
| Polarity | N: common positive, NPN; P: common negative, PNP; confirm order code |
| AC output | 220–240 VAC, maximum 2 A |
| DC output | 2 A or 6 A; selection chart says 24 VDC, text says 5–60 VDC |
| Output grouping | Chart: each group of 8 shares COM; DC uses COM+ |
| Isolation | ≥2500 Vrms; duration not stated |
| Typical ON voltage | AC ≤1.5 Vrms; DC ≤0.3 V |
| OFF leakage | AC ≤5 mA; DC ≤0.1 mA |
| Suppression | AC RC snubber; DC flyback diode |
| Environment | −40 to +70 °C; 5–85% RH; no condensation or icing |
| Mounting / protection | 35 mm DIN rail / IP20 |
Selection & installation notes
- The chart shows commoned output groups, despite the text calling outputs independent. Obtain the exact wiring diagram and group-current limit.
- The DC 32NC chart row prints 10 channels; verify channel count and MIL pinout before ordering. The DC voltage range is also inconsistent.
- The DC text incorrectly uses zero-cross terminology; no DC zero-cross function is claimed here.
- Confirm assembly current, thermal derating, wire range, torque and dimensions. Indicators do not prove safe isolation.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG relays — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
