ENMG / RELAY SOCKETS
RXGZE1S35M / RXGZE1S48M
Cage-screw DIN sockets for RJ and RXG relays
Plug-in relay sockets with separated coil and contact wiring and a provision for optional protection modules.
Request a quote ↗TECHNICAL DATA / RXGZE1S35M / RXGZE1S48M
Specifications & selection.
- 5-pin and 8-pin variants for RJ / RXG interface relays.
- 35 mm DIN-rail installation.
- Indicator / surge-suppression modules available by coil voltage.
| Socket | Pins | Socket rating | Relay compatibility |
|---|---|---|---|
| RXGZE1S35M | 5 | 12 A / 300 VAC | RJ1S / RXG11; GK family |
| RXGZE1S48M | 8 | 8 A / 300 VAC | RJ2S / RXG21 |
| Module | Published coil supply range |
|---|---|
| RZM033VL | 5–24 VDC |
| RZM480VL | 110–220 VAC |
| Family | Spring socket | Barrier socket | PCB socket |
|---|---|---|---|
| RJ1S / RXG11 | RG05P | SJ1S-05B / SJ1S-05E | SJ1S-61 |
| RJ2S / RXG21 | RG08P | SJ2S-05B / SJ2S-05E | SJ2S-61 |
Selection & installation notes
- Socket and relay ratings must both suit the circuit. Confirm wire range, strip length, tightening torque, environmental limits and full outline; these values are not specified for these models on the page.
- Isolate supplies before wiring or replacing a relay. Engage the 35 mm DIN clip, tighten terminals to the product marking and tug-check conductors.
- Keep A1/A2 coil wiring separate from contacts. Select optional RZM modules for the actual coil voltage and polarity; DC and AC modules are not interchangeable.
- Ensure any commoning busbar and its feed conductor can carry the combined current.
- The prose selection table lists GK against both sockets, while the detailed image and dedicated cross-reference list GK only for the 5-pin RXGZE1S35M. Do not assume GK fits the 8-pin socket.

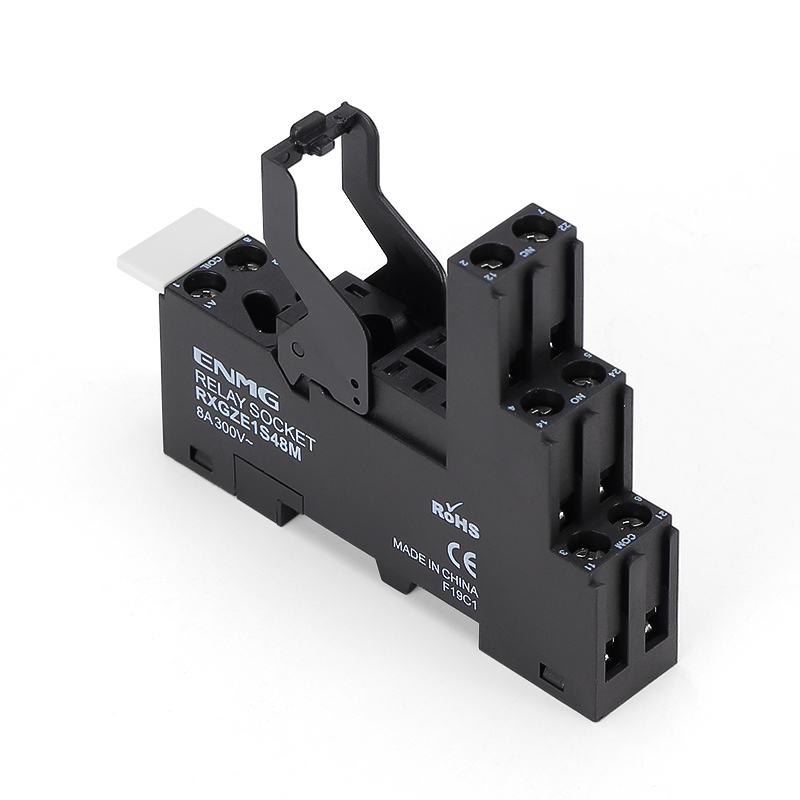

- Current/voltage figures are socket ratings from the selection image. The allowed assembly load also depends on the relay and wiring; the 48M photograph confirms 8 A / 300 VAC.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG relays — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
