ENMG / RELAY SOCKETS
RLZE2M108M / RXZE2M114M
Cage-clamp screw-terminal relay sockets
DIN-rail relay sockets with screw-clamp connections and an interface for optional indication and surge-suppression modules.
Request a quote ↗TECHNICAL DATA / RLZE2M108M / RXZE2M114M
Specifications & selection.
- Wide-pin 8-pin and fine-pin 14-pin socket families.
- Plug-in relay replacement with wiring retained.
- Optional RZM coil indication and suppression accessories.
| Model | Pins | Chart rating | Chart relay compatibility |
|---|---|---|---|
| RLZE2M108M | 8 | 10 A / 300 VAC | LY2; GL15D / SL15D |
| RXZE2M114M | 14 | 7 A / 300 VAC | MY4; solid-state compatibility not specified |
| RXZE2M108M (also in chart) | 8 | 7 A / 300 VAC | MY2; GM / SM |
| Parameter | Published specification |
|---|---|
| Terminal construction | Cage-clamp screw terminals |
| Mounting | 35 mm DIN rail |
| Module interface | ZE, accepts compatible RZM accessories |
| RZM033VL | 5–24 VDC coil indication / suppression module |
| RZM480VL | 110–220 VAC coil indication / suppression module |

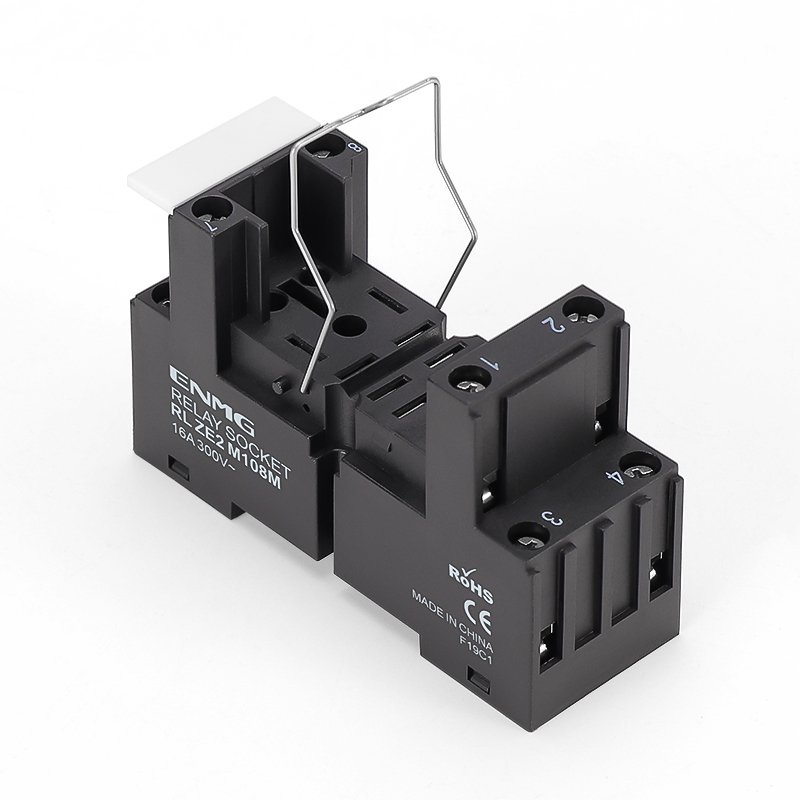

| RLZE representative photograph | Label reads 16 A / 300 V; differs from 10 A chart rating |
| Dimensions / mass | Not supplied for these models |
| Wire range / torque / environment | Not numerically specified; obtain socket datasheet |
Selection & installation notes
- The page text groups RXM2/RXM4 and GMY2/GMY4 under the 14-pin socket, whereas the image separates 8-pin MY2 and 14-pin MY4. Verify pin layout and relay compatibility; pin count alone is insufficient.
- The RLZE photograph and chart give different current ratings. Confirm the socket rating and use the lowest applicable verified rating for relay, socket, wiring and accessories.
- The text describes separated terminals while the image calls the cage-clamp arrangement mixed. Follow the actual numbering and wiring diagram.
- Match AC/DC suppression modules to coil voltage and polarity. Isolate supplies, tighten to the marked torque and engage the retaining clip before service.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG relays — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
