ENMG / ENCLOSURE FILTERS & FILTER FANS
SF8801 / SF8803

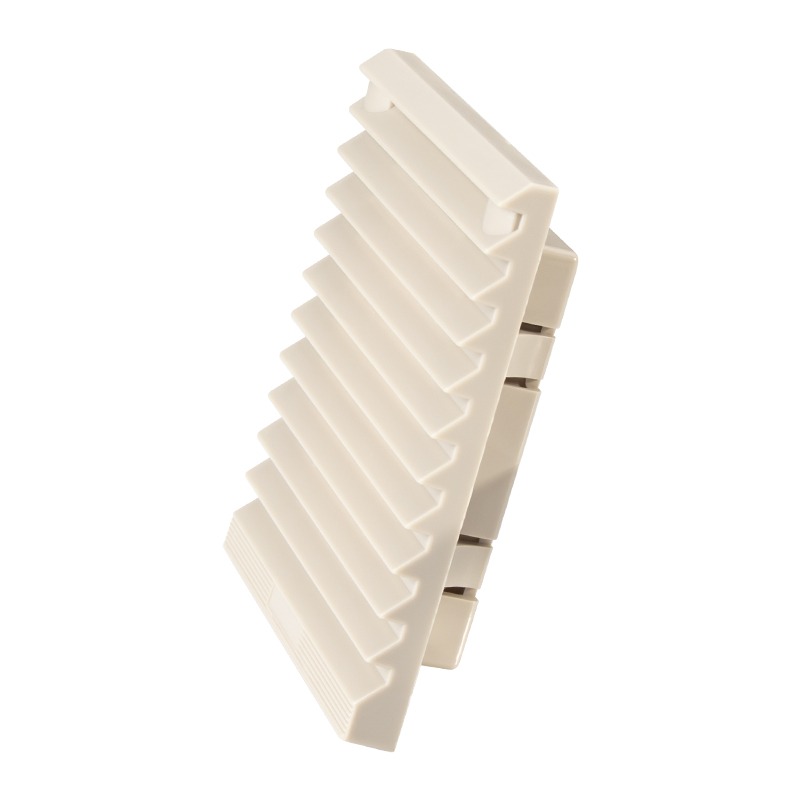

Enclosure filter screens and filter fan assemblies
Filter screens and fan assemblies for enclosure ventilation. Choose a passive SF8801 or SF8803 filter screen, a C-series AC fan assembly, or an EC-series AC/DC fan assembly.
Request a quote ↗Email insteadPRODUCT PHOTOS

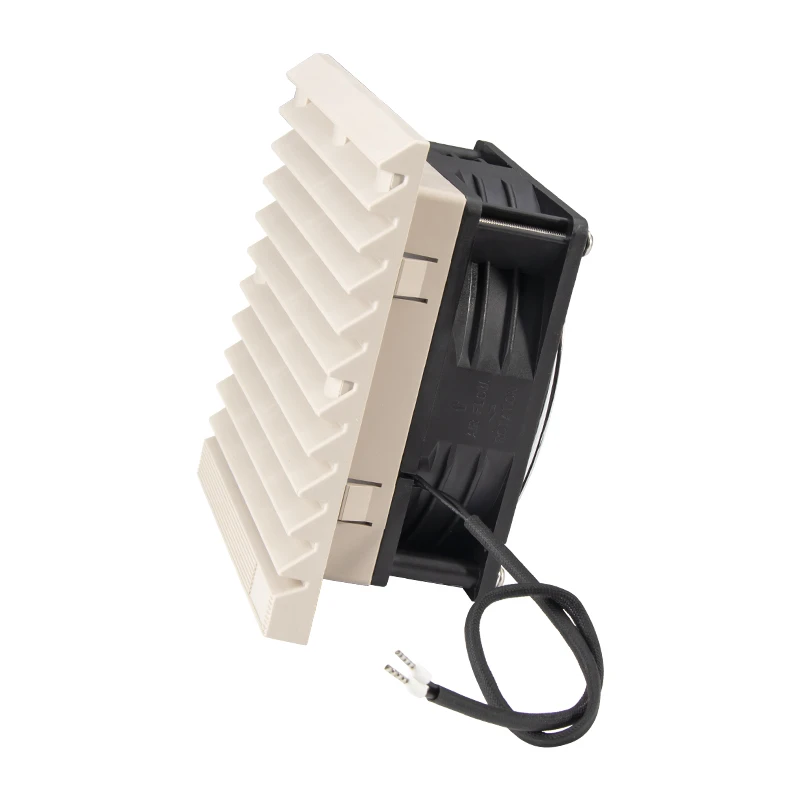

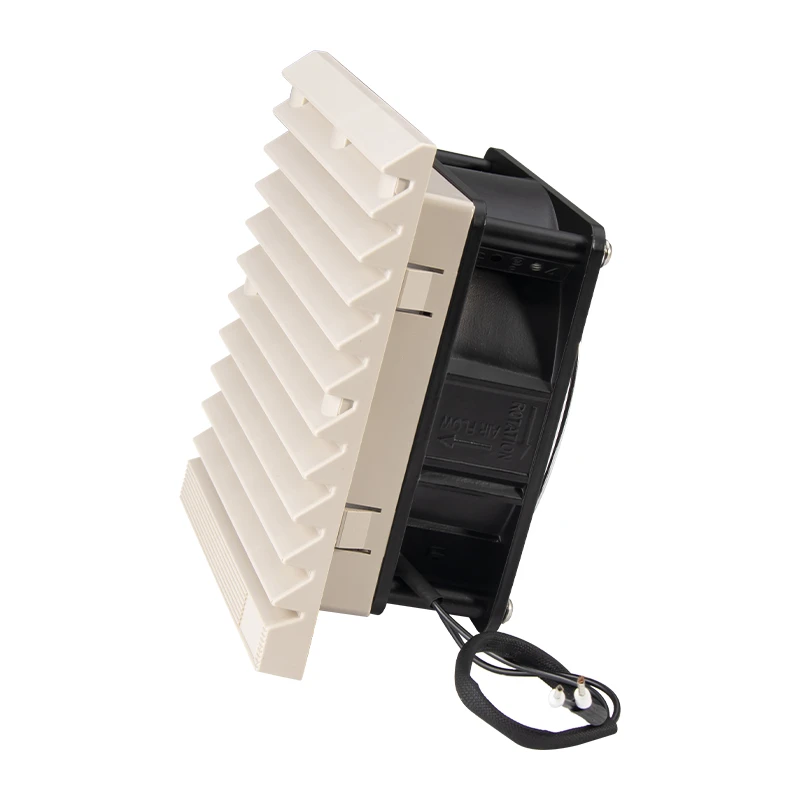

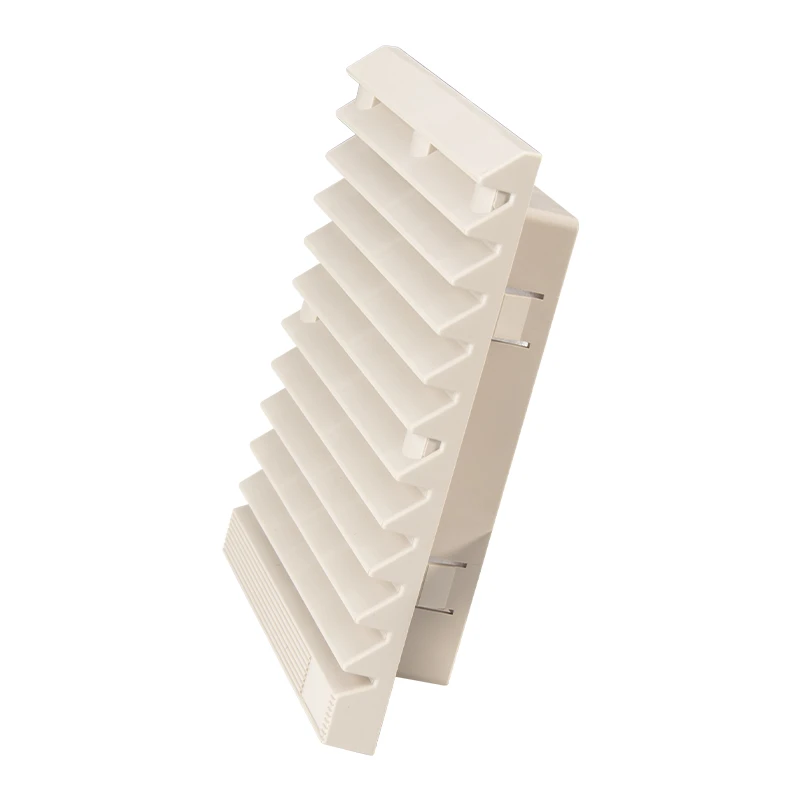

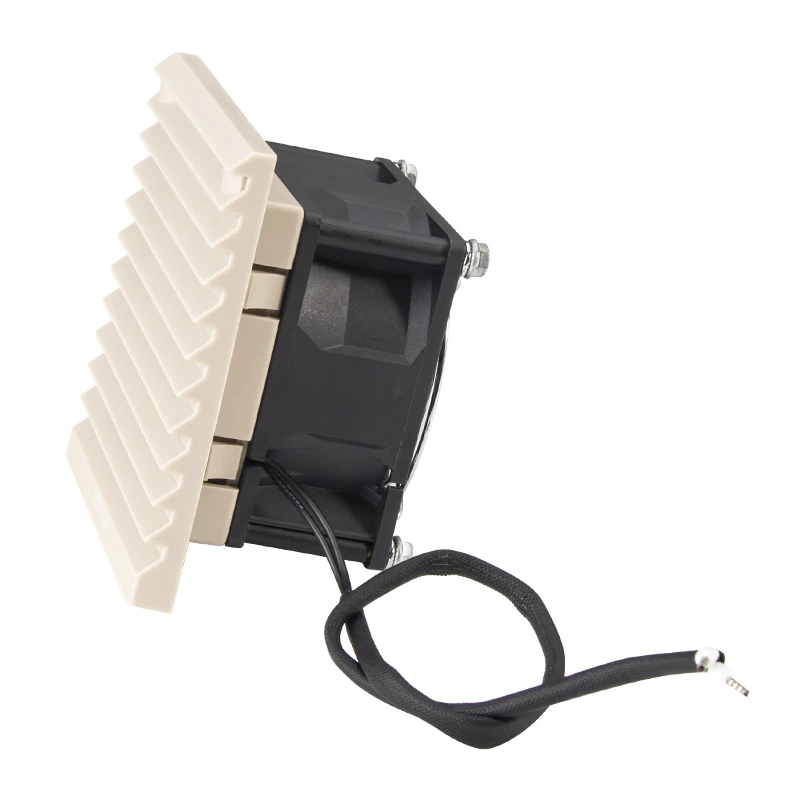

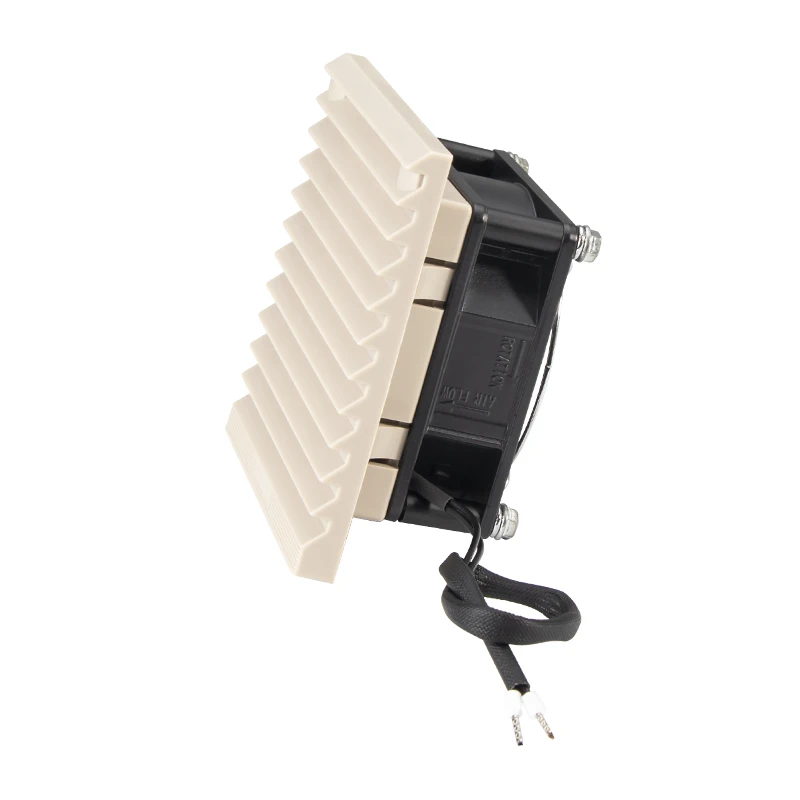

SF8801 / SF8803 gallery
Select a thumbnail to enlarge. Confirm the exact model and configuration when ordering.
TECHNICAL DATA / SF8801 / SF8803
Specifications & selection.
- Six selection options covering filter screens and fan assemblies.
- C-series assemblies: 220–240 VAC, 50–60 Hz.
- EC-series assemblies: 110–240 VAC/DC; listed airflow up to 140 CFM.
| Model | Configuration | Power | Supply | Speed | Listed airflow |
|---|---|---|---|---|---|
| SF8801 | Filter screen | — | — | — | — |
| SF8803 | Filter screen | — | — | — | — |
| SF8801C | Filter + axial fan | 17 W | 220–240 VAC, 50–60 Hz | 2500 rpm | 30 CFM |
| SF8803C | Filter + axial fan | 23 W | 220–240 VAC, 50–60 Hz | 2500 rpm | 35 CFM |
| SF8801C-EC | Filter + EC fan | 6 W | 110–240 VAC/DC | 4000 rpm | 50 CFM |
| SF8803C-EC | Filter + EC fan | 15 W | 110–240 VAC/DC | 4000 rpm | 140 CFM |
Selection & installation notes
- Listed airflow is the brochure value; the brochure does not specify pressure or test conditions. Confirm installed airflow for the intended enclosure.
- Request the exact cut-out dimensions, mounting depth, filter grade and enclosure protection rating before installation.
- Confirm airflow direction, wiring, service clearance and the replacement filter specification for the selected assembly.
Based on the ENMG Cabinet Environment Systems brochure YZ26I10 — page 31 ↗. Checked 2026-09-17. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG Cabinet Environment Systems brochure YZ26I10 — page 31
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
