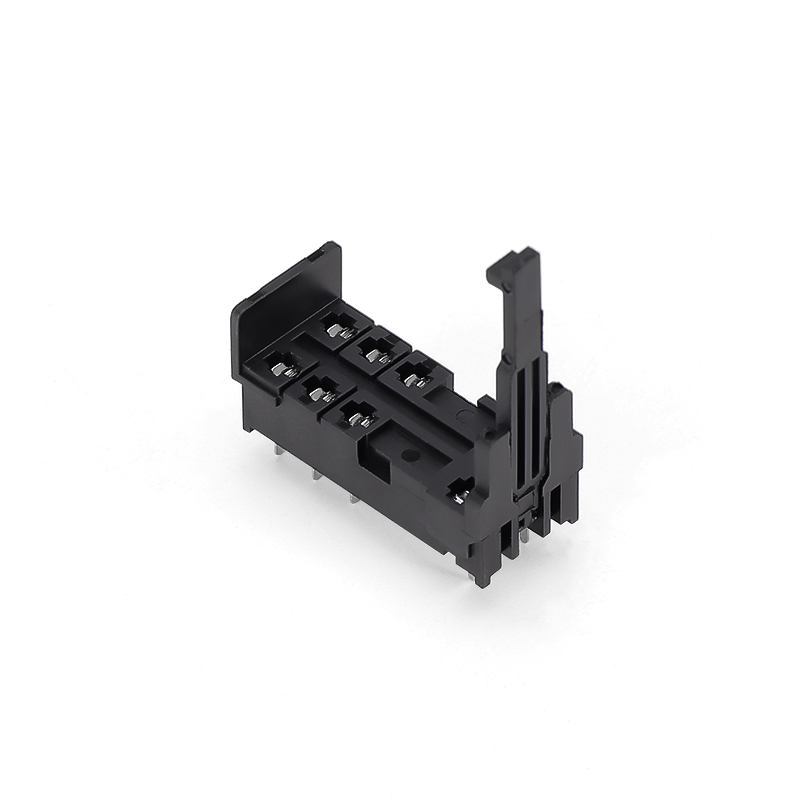

ENMG / RELAY SOCKETS
SJ1S-61 / SJ2S-61
PCB sockets for slim interface relays
Through-hole PCB relay sockets that allow plug-in relay replacement without desoldering the socket.
Request a quote ↗TECHNICAL DATA / SJ1S-61 / SJ2S-61
Specifications & selection.
- 5-pin and 8-pin socket variants.
- Black wide-pin construction in the official selection chart.
- PCB mounting code 61; plug-in relay retention.
| Socket | Pins | Electromechanical relay | Solid-state relay |
|---|---|---|---|
| SJ1S-61 | 5 | RJ1S / RXG11 | GK5D / GK5A / GK12D |
| SJ2S-61 | 8 | RJ2S / RXG21 | Not listed in the selection image |
| Family | Spring DIN socket | Cage-screw DIN socket | Barrier DIN socket |
|---|---|---|---|
| RJ1S / RXG11 | RG05P | RXGZE1S35M | SJ1S-05B / SJ1S-05E |
| RJ2S / RXG21 | RG08P | RXGZE1S48M | SJ2S-05B / SJ2S-05E |
Selection & installation notes
- Page prose calls the relay families SJ1S / SJ2S while the selection image uses RJ1S / RJ2S. The table above follows the image; verify the complete relay model and pinout.
- The page does not provide independent socket current, voltage, outline, mass or soldering limits. Relay ratings do not establish the socket rating; obtain socket specifications.
- Check the PCB footprint, fully seat and solder pins, and inspect for bridges. Confirm solder temperature/time with the manufacturer. Isolate circuits before replacing relays.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG relays — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
