ENMG / SOLID-STATE RELAYS
SOB

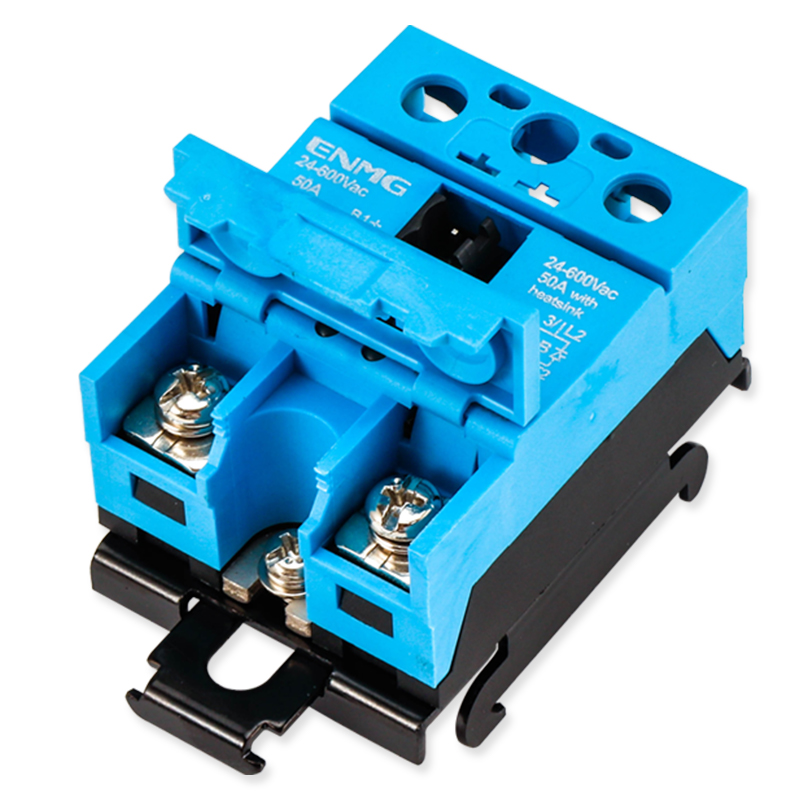

Two-phase blue-housing solid-state relays
Dual AC power switches with separate channel controls for enclosure and equipment power switching.
Request a quote ↗TECHNICAL DATA / SOB
Specifications & selection.
- SOB963660, SOB965660 and SOB967660 selections.
- 24–600 VAC outputs; 10–30 VDC control.
- Zero-cross switching and heatsink mounting.
| Model | Output voltage | Per-channel current class | Control input | Approximate L × W × H |
|---|---|---|---|---|
| SOB963660 | 24–600 VAC | 35 A | 10–30 VDC | 45 × 58.5 × 27 mm |
| SOB965660 | 24–600 VAC | 50 A | 10–30 VDC | 45 × 58.5 × 27 mm |
| SOB967660 | 24–600 VAC | 75 A | 10–30 VDC | 45 × 58.5 × 27 mm |
| Marking | Meaning |
|---|---|
| A1+ / A2− | Channel A DC control |
| B1+ / B2− | Channel B DC control |
| 1/L1 – 2/T1 | Channel A AC path |
| 3/L2 – 4/T2 | Channel B AC path |
| Rating | 35 A per path at 24–600 VAC, with heatsink |
| Parameter | Published reference |
|---|---|
| Minimum load | 50 mA |
| Typical ON drop | ≤1.6 V at rated current |
| Control current / OFF voltage | <13 mA / <1 VDC |
| Insulation resistance | ≥100 MΩ at 500 VDC |
| Withstand | ≥2500 VAC, 1 minute: input-output and circuits-case |
| Temperature | −20 to +80 °C at heatsink surface; not an ambient rating |
| Storage / humidity / altitude | −40 to +125 °C / ≤95% RH non-condensing / ≤2000 m |
| Protection | IP20 with cover |
| Mass / exact mounting drawing | Not supplied |
Selection & installation notes
- The source includes SO8 and SO9 single-phase specifications alongside SOB. Their 690 V options, I²t values, terminal sizes and current classes are not transferred to the two-phase product.
- Its naming rules are explicitly inferred and contain conflicting protection codes; use the listed complete SOB codes and confirm input/output suppression with the actual datasheet.
- The table describes input transient suppression and no output protection. Confirm exact protection and coordinated semiconductor fuses before use.
- The source provides approximate dimensions and shared design data. Confirm mounting, connector, torque, surge capability and thermal derating for the actual two-channel unit.
- Two-phase switching does not isolate every conductor of a three-phase supply. Provide suitable upstream isolation and disconnect power before servicing.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
