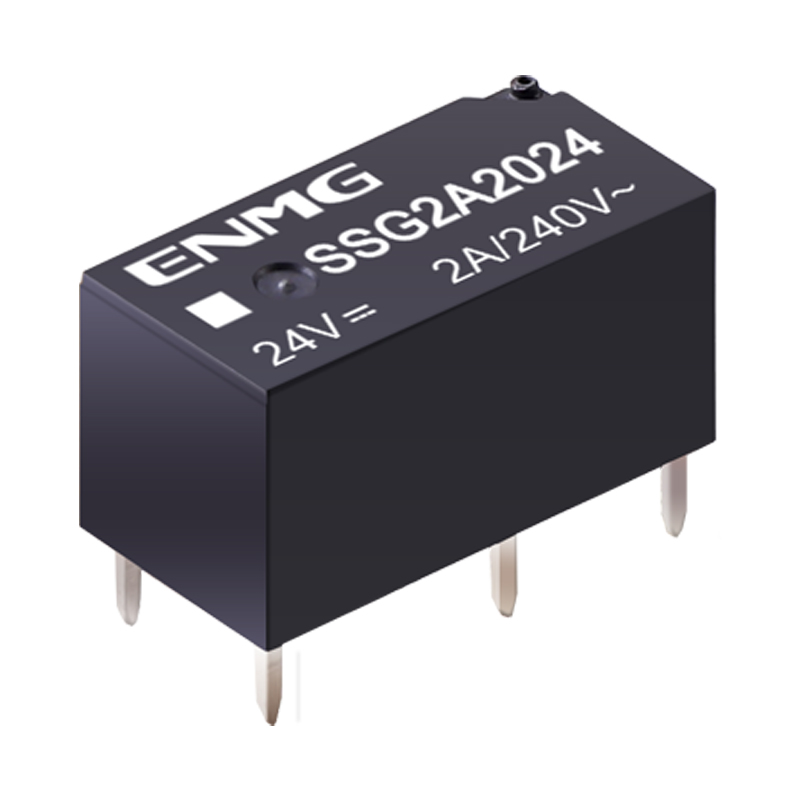

Miniature PCB solid-state relays
Potted through-hole relays with optical isolation and AC or DC semiconductor outputs for compact control PCBs.
Request a quote ↗TECHNICAL DATA / SSG
Specifications & selection.
- AC TRIAC outputs with RC suppression; DC basic and low-resistance versions.
- 5, 12 or 24 VDC input selections.
- Zero-cross and random-trigger AC variants.
| Output | 5 VDC input | 12 VDC input | 24 VDC input |
|---|---|---|---|
| AC 2 A, zero cross | SSG2A2005 | SSG2A2012 | SSG2A2024 |
| AC 2 A, random | SSG2A2105 | SSG2A2112 | SSG2A2124 |
| DC 2 A, basic | SSG2D6105 | SSG2D6112 | SSG2D6124 |
| DC 6 A, low resistance | SSG6D6105 | SSG6D6112 | SSG6D6124 |
| Nominal input | Operating range | Approximate impedance |
|---|---|---|
| 5 VDC | 4–6 VDC | 0.5 kΩ |
| 12 VDC | 9.2–14.4 VDC | 1.5 kΩ |
| 24 VDC | 19.2–28.8 VDC | 3.3 kΩ |
| Parameter | SSG2A20 / 21 | SSG2D61 | SSG6D61 |
|---|---|---|---|
| Maximum current | 2 A | 2 A | 6 A |
| Load voltage | 75–264 VAC, 45–65 Hz | 5–60 VDC | 5–60 VDC |
| Non-repetitive surge | 30 A; duration not given | 16 A; duration not given | 80 A; duration not given |
| Peak withstand voltage | 600 V peak | 60 V peak | 60 V peak |
| ON-state drop | ≤1.2 V at 2 A | ≤1.3 V at 2 A | ≤0.1 V at 6 A |
| OFF leakage | ≤3 mA at 240 VAC | ≤1 mA at 60 VDC | ≤1 mA at 60 VDC |
| Minimum load | 20 mA | 0.02 mA | 0.02 mA |
| Operate / release time in source | Zero cross: ≤half supply cycle + 1 ms; random: ≤1 ms — AC turn-off depends on current zero | ≤1 ms | ≤1 ms |
| Parameter | Specification |
|---|---|
| Input-output dielectric withstand | 2500 VAC, 50/60 Hz, 1 minute |
| Input-output insulation resistance | ≥1000 MΩ at 500 VDC |
| Vibration / shock | 10–55 Hz, 0.75 mm double amplitude / 1000 m/s² |
| Operation | −30 to +80 °C, no condensation or icing |
| Storage | Text: −30 to +100 °C; image omits minus sign — confirm |
| Humidity / reference | 45–85% RH / 25 °C unless stated otherwise |
| Body L × W × H | 20.3 × 10.2 × 10.60 mm, illustrated |
| Lead length / section | 4 mm / 0.80 × 0.50 mm, illustrated |
| Pitch annotations | 10.16 and 7.62 mm; confirm full footprint |
| Mass | Approximately 20 g stated |
Selection & installation notes
- Select the exact AC/DC type and input range; do not interchange AC and DC load versions.
- A random-trigger TRIAC cannot be assumed to interrupt AC current immediately. Confirm turn-off timing under the actual load.
- Surge ratings lack waveform and duration and must not be used as continuous or repetitive current limits. Derate for thermal conditions and inrush.
- OFF-state leakage remains present; isolate the load supply for maintenance.
- The page mentions explosion-protection applications without certification evidence. No hazardous-location suitability is established. Request the soldering process and footprint before PCB release.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG relays — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
