VU1-C
Type 2 AC distribution surge protectors
Pluggable Type 2 AC surge protective devices in the ENMG C series, with multiple pole arrangements and optional remote signalling.
Request a quote ↗TECHNICAL DATA / VU1-C
Specifications & selection.
- Type 2 / Class II designation in the official selection chart.
- 2P, 2PN, 3P, 3PN and 4P order-code columns.
- Green OK / red replace status indication shown on the representative product.
| Capacity label in chart | 2P | 2PN | 3P | 3PN | 4P |
|---|---|---|---|---|---|
| 20 kA | VU1-20-C2P T2 | VU1-20-C2PN T2 | VU1-20-C3P T2 | VU1-20-C3PN T2 | VU1-20-C4P T2 |
| 40 kA | VU1-40-C2P T2 | VU1-40-C2PN T2 | VU1-40-C3P T2 | VU1-40-C3PN T2 | VU1-40-C4P T2 |
| 60 kA | VU1-60-C2P T2 | VU1-60-C2PN T2 | VU1-60-C3P T2 | VU1-60-C3PN T2 | VU1-60-C4P T2 |
| 80 kA | VU1-80-C2P T2 | VU1-80-C2PN T2 | VU1-80-C3P T2 | VU1-80-C3PN T2 | VU1-80-C4P T2 |
| 100 kA | VU1-100-C2P T2 | VU1-100-C2PN T2 | VU1-100-C3P T2 | VU1-100-C3PN T2 | VU1-100-C4P T2 |
| 120 kA | VU1-120-C2P T2 | VU1-120-C2PN T2 | VU1-120-C3P T2 | VU1-120-C3PN T2 | VU1-120-C4P T2 |
| Item | Source information |
|---|---|
| C / S | C: Chaopin series on this page; S: separate Shangpin series |
| Remote signalling | F: with remote signalling; omitted: without |
| 2P / 3P / 3PN / 4P naming guide | Single-phase TN / three-phase four-wire TN-C / three-phase four-wire TT with GDT / three-phase five-wire TN-S |
| Single-phase TT naming | Guide uses 1PN; ordering table uses 2PN — confirm exact configuration |
| 20 capacity code | Ordering chart says 20 kA; naming guide says 25 kA — confirm |

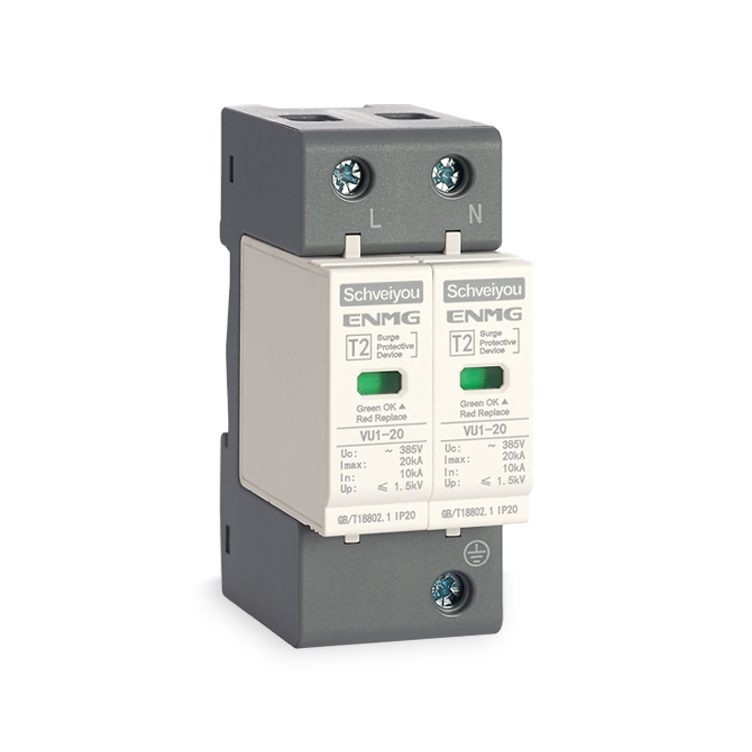

| Representative VU1-20 photograph only | Uc: 385 VAC; Imax: 20 kA; In: 10 kA; Up: ≤1.5 kV; IP20 |
| Protection indication | Green: OK; red: replace |
Selection & installation notes
- The capacity column does not identify In, Imax or the test waveform. Do not infer a tested surge rating solely from the model number.
- The photographed VU1-20 ratings illustrate one unit and do not apply to all pole counts or capacity variants. Confirm the exact order-code datasheet.
- Confirm system earthing, continuous operating voltage Uc, protection level Up, discharge waveform, backup protection and short-circuit coordination before selection.
- The source does not provide verified dimensions, wire range, torque, environmental ratings or certification documents for each C-series model. Request these with the quotation.
- The generic naming graphic includes T1 and DC options, while this page is for AC T2 products. Do not assume a T2 unit is suitable for a T1 or DC application.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG electrical accessories — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
