ENMG / SURGE PROTECTION
VU1-DC / PV40
DC and photovoltaic surge protective devices
DC surge protective devices with 2-pole and 3-pole options, visual condition indicators and optional remote signalling. The official selection chart includes low-voltage DC and photovoltaic variants.
Request a quote ↗TECHNICAL DATA / VU1-DC / PV40
Specifications & selection.
- 40 kA class shown across the official selection table.
- F variants provide remote signalling; corresponding non-F variants omit it.

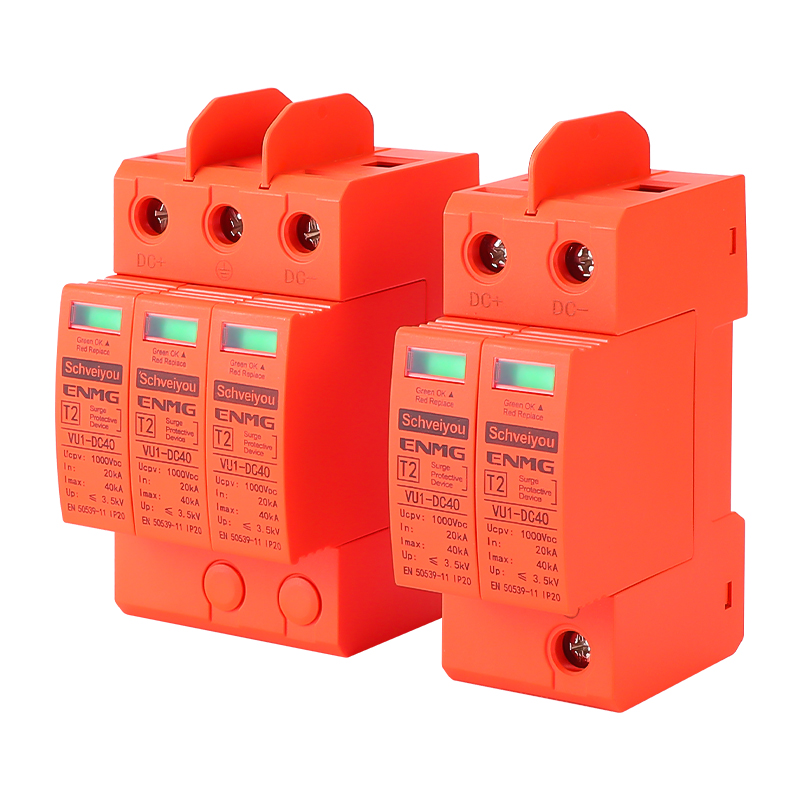

- Official 1000 V product photos show removable modules and green/red condition windows.
| Voltage | 2P without remote signal | 2P with remote signal | 3P without remote signal | 3P with remote signal |
|---|---|---|---|---|
| 24 VDC | VU1-DC40-2P 24V | VU1-DC40-2PF 24V | Not listed | Not listed |
| 110 VDC | VU1-DC40-2P 110V | VU1-DC40-2PF 110V | Not listed | Not listed |
| 220 VDC | VU1-DC40-2P 220V | VU1-DC40-2PF 220V | Not listed | Not listed |
| 1000 VDC | VU1-PV40-2P 1000V | VU1-PV40-2PF 1000V | VU1-PV40-3P 1000V | VU1-PV40-3PF 1000V |
| 1500 VDC | VU1-PV40-2P 1500V | VU1-PV40-2PF 1500V | VU1-PV40-3P 1500V | VU1-PV40-3PF 1500V |
| Parameter | Observed marking |
|---|---|
| Device class | T2 |
| Maximum continuous operating voltage, Uc / Ucpv | 1000 VDC |
| Nominal discharge current, In | 20 kA |
| Maximum discharge current, Imax | 40 kA |
| Voltage protection level, Up | ≤3.5 kV |
| Ingress protection marking | IP20 |
| Condition indication | Green: OK; red: replace |
Selection & installation notes
- The page title and photographed 1000 V units use VU1-DC40; the selection chart uses VU1-PV40 for 1000/1500 V versions. Confirm the complete current part number and label before ordering.
- The detailed label values above apply only to the pictured 1000 V units. They must not be extended to other voltage variants. Surge waveform, protection coordination and certification documents are not established by these photographs.
- Select voltage, pole arrangement and protective-earth connection to suit the actual DC/PV system. Confirm maximum system voltage, prospective fault current, backup protection and wiring requirements using the exact datasheet.
- The source does not specify remote-contact ratings, wire size, terminal torque, outline dimensions or operating temperature. Request these before installation.
- Service with the circuit isolated. Replace modules displaying the red condition indication according to the manufacturer’s instructions.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
