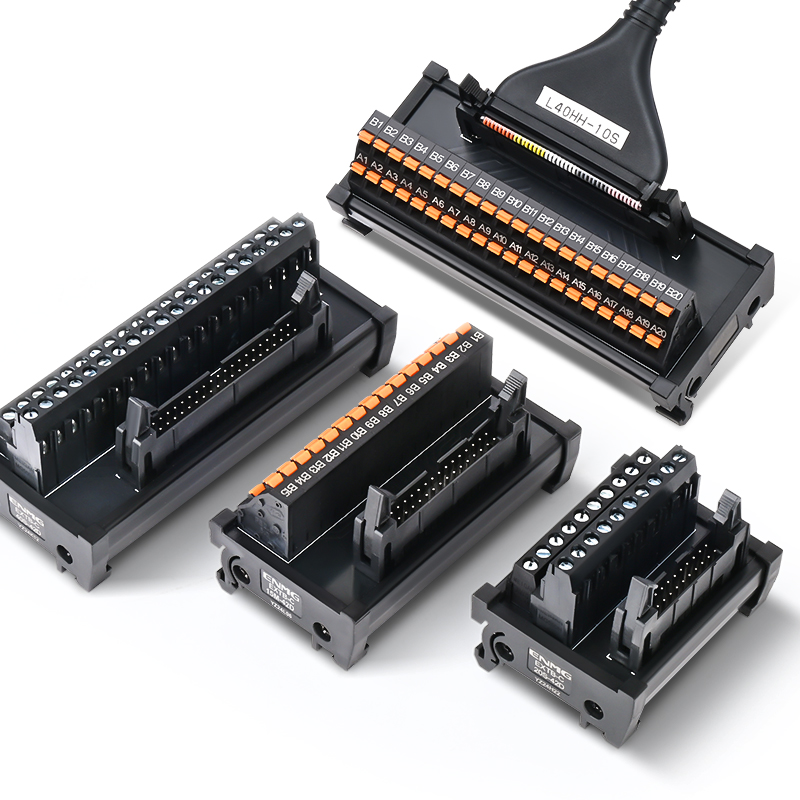

EXTB-MIL
MIL connector interface terminals
MIL connector-to-terminal interface boards for PLC, servo-drive and industrial I/O wiring, with cage screw or spring terminals.
Request a quote ↗TECHNICAL DATA / EXTB-MIL
Specifications & selection.
- MIL connector variants from 10 to 64 points.
- S: cage screw terminals; M: screwless spring terminals.
- The listed 42D versions mount on 35 mm DIN rail.
| Points | Cage screw model | Spring model | Connector |
|---|---|---|---|
| 10 | EXTB-C10S-42D | EXTB-C10M-42D | HIF3BA-10PA-2.54DSA |
| 14 | EXTB-C14S-42D | EXTB-C14M-42D | HIF3BA-14PA-2.54DSA |
| 16 | EXTB-C16S-42D | EXTB-C16M-42D | HIF3BA-16PA-2.54DSA |
| 20 | EXTB-C20S-42D | EXTB-C20M-42D | HIF3BA-20PA-2.54DSA |
| 26 | EXTB-C26S-42D | EXTB-C26M-42D | HIF3BA-26PA-2.54DSA |
| 30 | EXTB-C30S-42D | EXTB-C30M-42D | HIF3BA-30PA-2.54DSA |
| 34 | EXTB-C34S-42D | EXTB-C34M-42D | HIF3BA-34PA-2.54DSA |
| 40 | EXTB-C40S-42D | EXTB-C40M-42D | HIF3BA-40PA-2.54DSA |
| 50 | EXTB-C50S-42D | EXTB-C50M-42D | HIF3BA-50PA-2.54DSA |
| 60 | EXTB-C60S-42D | EXTB-C60M-42D | HIF3BA-60PA-2.54DSA |
| 64 | EXTB-C64S-42D | EXTB-C64M-42D | HIF3BA-64PA-2.54DSA |
| Points | L × W × H (mm) | Approx. mass |
|---|---|---|
| 10 | 42 × 48.5 × 48 | 45 g |
| 14 | 47 × 48.5 × 48 | 55 g |
| 16 | 52 × 48.5 × 48 | 60 g |
| 20 | 62 × 48.5 × 48 | 72 g |
| 26 | 78 × 48.5 × 48 | 90 g |
| 30 | 87 × 48.5 × 48 | 100 g |
| 34 | 98 × 48.5 × 48 | 110 g |
| 40 | 112 × 48.5 × 48 | 130 g |
| 50 | 137 × 48.5 × 48 | 160 g |
| 60 | 164 × 48.5 × 48 | 185 g |
| 64 | 172 × 48.5 × 48 | 195 g |
| Code | Meaning |
|---|---|
| C | MIL connector |
| S / M | Cage screw / spring terminals |
| 42D | 42 mm board base, DIN rail mounting |
| 42S | 42 mm board base, screw mounting; confirm available variants |
| L | 72 mm board base, DIN rail mounting; confirm available variants |
Selection & installation notes
- Verify controller pinout, connector keying, pin 1 orientation and cable compatibility before wiring.
- The source provides no current/voltage or wire-size rating for these MIL variants. Confirm connector and terminal ratings for the application.
- D-sub, VGA, FCN360 and SCSI versions appear in the broader EXTB family; the model and dimension tables here cover the MIL/C connector variants only.
- Confirm the full part number and mounting option before ordering; the code guide does not guarantee every combination is available.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
