ENMG / RELAY INTERFACE MODULES
RT-G41F
G41F slim relay interface modules
Multi-channel G41F relay interfaces with 4, 8, 16 or 32 normally open outputs.
Request a quote ↗Email insteadPRODUCT PHOTOS
RT-G41F gallery
Select a thumbnail to enlarge. Confirm the exact model and supplied accessories when ordering.
COMPONENTS & ASSEMBLIES
G41F Relay — Component Details
Photos show relay-family options. Confirm the relay model and coil voltage specified for your module. Relay contact forms and the contacts exposed at module terminals are not necessarily the same.
TECHNICAL DATA / RT-G41F
Specifications & selection.
- Multi-channel G41F relay interfaces with 4, 8, 16 or 32 normally open outputs.
| Ordering pattern | Channels | Common grouping |
|---|---|---|
| RT-G41F**ZS-04S | 4 | 4 circuits / common |
| RT-G41F**ZS-08S | 8 | 8 circuits / common |
| RT-G41F**ZS-16S | 16 | 8 circuits / common |
| RT-G41F**ZS-16C | 16 | 8 circuits / common |
| RT-G41F**ZS-32C | 32 | 8 circuits / common |
| Parameter | Specification |
|---|---|
| Control supplies | 5 / 12 / 24 / 60 VDC, select exact version |
| Input polarity | COM+ / COM−, NPN / PNP |
| Output contacts | 1 normally open per channel |
| Listed output rating | 6 A at 250 VAC / 30 VDC; confirm load type and simultaneous loading |
Selection & installation notes
- Replace ** with the specified relay/control-supply code; it is an ordering placeholder.
- The brochure does not give aggregate common-terminal capacity. Confirm the common current limit before sizing simultaneous loads.

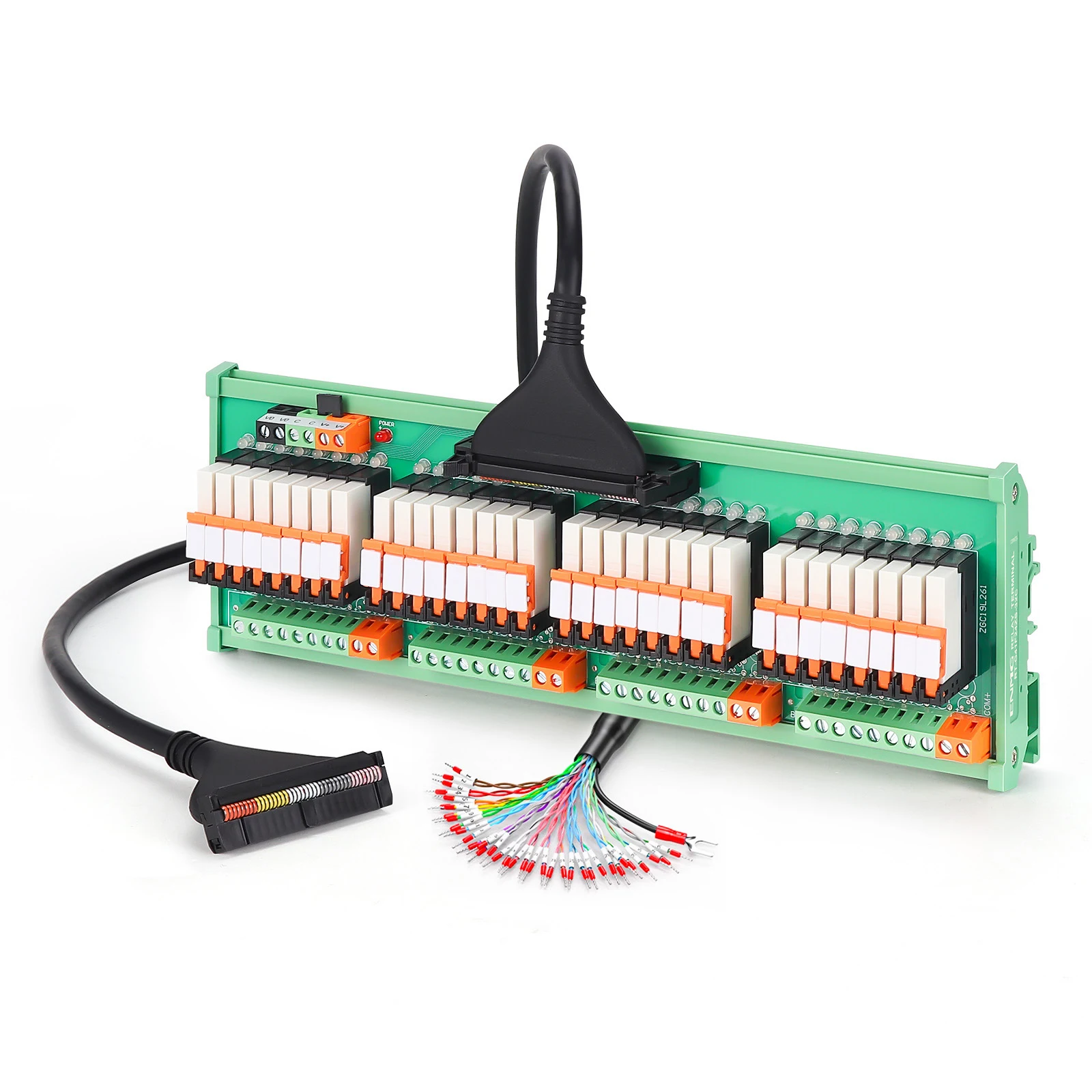

- The cable in the photograph illustrates connectivity; confirm cable inclusion and pinout.
Based on the ENMG Wiring Terminals brochure YZ26I10 — page 35 ↗. Checked 2026-09-17. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
English product-family brochure YZ26I10. See page 35 for this series.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
