ENMG / ELECTROMECHANICAL RELAYS
G41F

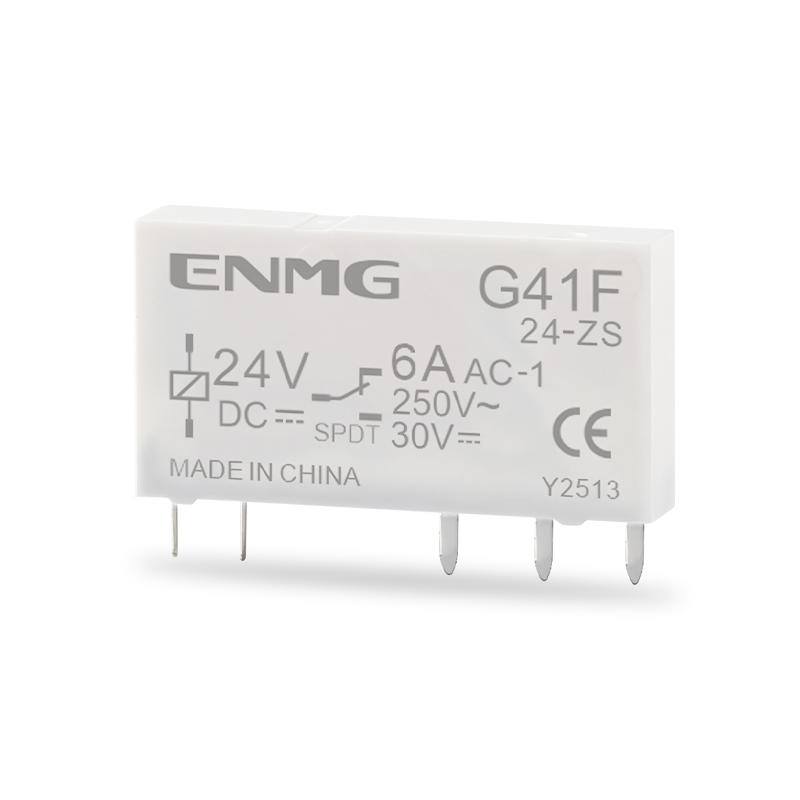

Slim miniature PCB relays
A 5 mm-wide miniature relay family for compact control interfaces, with normally open or changeover contacts and dedicated socket options.
Request a quote ↗TECHNICAL DATA / G41F
Specifications & selection.
- 6 A contact class at 250 VAC / 30 VDC.
- 28 × 5 × 15 mm body; approximately 5 g.
- DC coils from 5 to 60 V; sealed or flux-proof variants.
| Model | Coil | Contacts |
|---|---|---|
| G41F-5-ZS | 5 VDC | 1 changeover; sealed |
| G41F-12-ZS | 12 VDC | 1 changeover; sealed |
| G41F-24-ZS | 24 VDC | 1 changeover; sealed |
| G41F-60-ZS | 60 VDC | 1 changeover; sealed |
| Rated VDC | Resistance Ω | Tolerance |
|---|---|---|
| 5 | 147 | ±10% |
| 6 | 212 | ±10% |
| 9 | 476 | ±10% |
| 12 | 848 | ±10% |
| 18 | 1906 | ±15% |
| 24 | 3390 | ±15% |
| 48 | 10600 | ±15% |
| 60 | 16600 | ±15% |
| Parameter | Specification |
|---|---|
| Contact form | H: 1 NO; Z: 1 CO |
| Contact material | AgNi default; T: AgSnO2; G: gold-plated |
| Maximum switching limits | 400 VAC / 125 VDC; 1500 VA / 180 W |
| Coil power | 170 mW at 5–24 V; 210 mW at 48 / 60 V |
| Operate / release thresholds | ≤75% / ≥5% rated DC voltage |
| Operate / release time | ≤8 / ≤4 ms |
| Initial contact resistance | Gold ≤30 mΩ; non-gold ≤100 mΩ; at 1 A / 6 V |
| Mechanical life | 10 million operations |
| Electrical life at 85 °C | H AgNi: ≥60,000; Z NO: ≥30,000; Z NC: ≥10,000; resistive load, 1 s ON / 9 s OFF |
| Insulation / withstand | 1000 MΩ at 500 VDC; coil–contact 4000 VAC and open contact 1000 VAC, 1 minute |
| Impulse withstand | 6 kV, 1.2/50 μs |
| Ambient | −40 to +85 °C; 5–85% RH; no condensation |
| Body / mass | 28 × 5 × 15 mm / approximately 5 g |
Selection & installation notes
- Maximum voltage, current and switching power are separate limits. Obtain a load-specific rating for inductive loads.
- The 150% coil-voltage figure is an initial 23 °C maximum, not a continuous high-temperature operating allowance.
- Socket input voltage differs from bare relay coil voltage. Confirm the exact matched RSLDRG / M / S / P 024 or 230 assembly; different coil voltages are not interchangeable.
- Vertical pins are standard; code 8 is horizontal. Confirm PCB footprint, sealed/flux-proof option and suppression polarity before assembly.
Based on the official Chinese product page and selection charts ↗. Checked 2026-09-15. Confirm the current specification for the exact model when ordering.
TECHNICAL RESOURCES
Plan your integration.
ENMG relays — English product-family brochure.
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
