12 VDC
HETA-101TS-075
- Listed cooling capacity
- 75 W
- Listed power consumption
- 102 W
ENMG / ENCLOSURE AIR CONDITIONERS
HETA-TS
Thermoelectric enclosure coolers with hot-side fan protection
Compare seven air-to-air thermoelectric coolers for enclosure temperature management. HETA-TS uses a through-wall configuration with stainless-steel protection around the external hot-side fan. Its fan arrangement differs from TP, which encloses both fans.
Request a quote ↗Email insteadHETA-TS
Explore seven HETA-TS models
Select a model by DC supply and required cooling duty. The capacities below are brochure values; actual performance depends on the operating temperatures and system installation.
24 VDC
HETA-151TS-106
- Listed cooling capacity
- 106 W
- Listed power consumption
- 144 W
24 VDC
HETA-102TS-150
- Listed cooling capacity
- 150 W
- Listed power consumption
- 204 W
48 VDC
HETA-152TS-212
- Listed cooling capacity
- 212 W
- Listed power consumption
- 288 W
48 VDC
HETA-153TS-300
- Listed cooling capacity
- 300 W
- Listed power consumption
- 408 W
48 VDC
HETA-154TS-424
- Listed cooling capacity
- 424 W
- Listed power consumption
- 576 W
48 VDC
HETA-156TS-600
- Listed cooling capacity
- 600 W
- Listed power consumption
- 816 W
PRODUCT PHOTOS

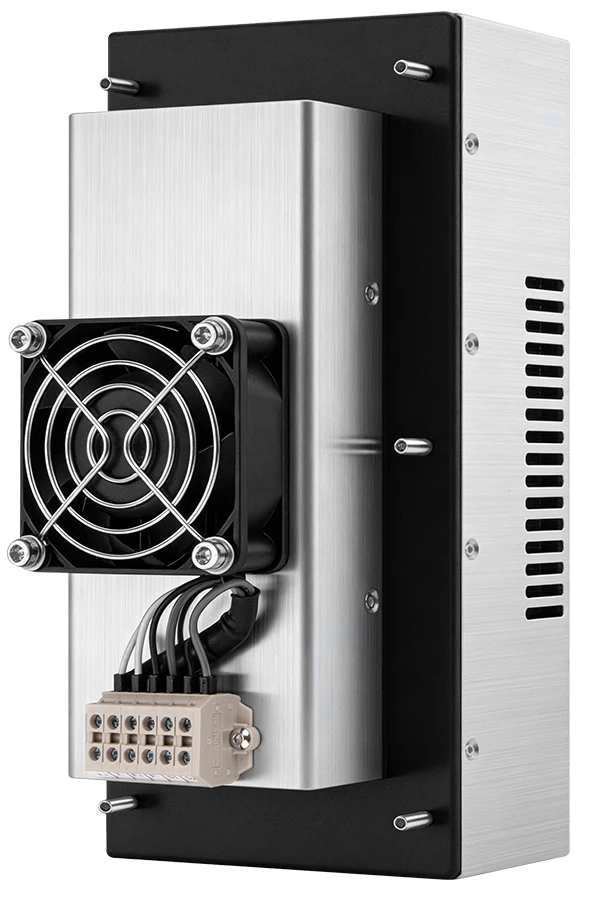

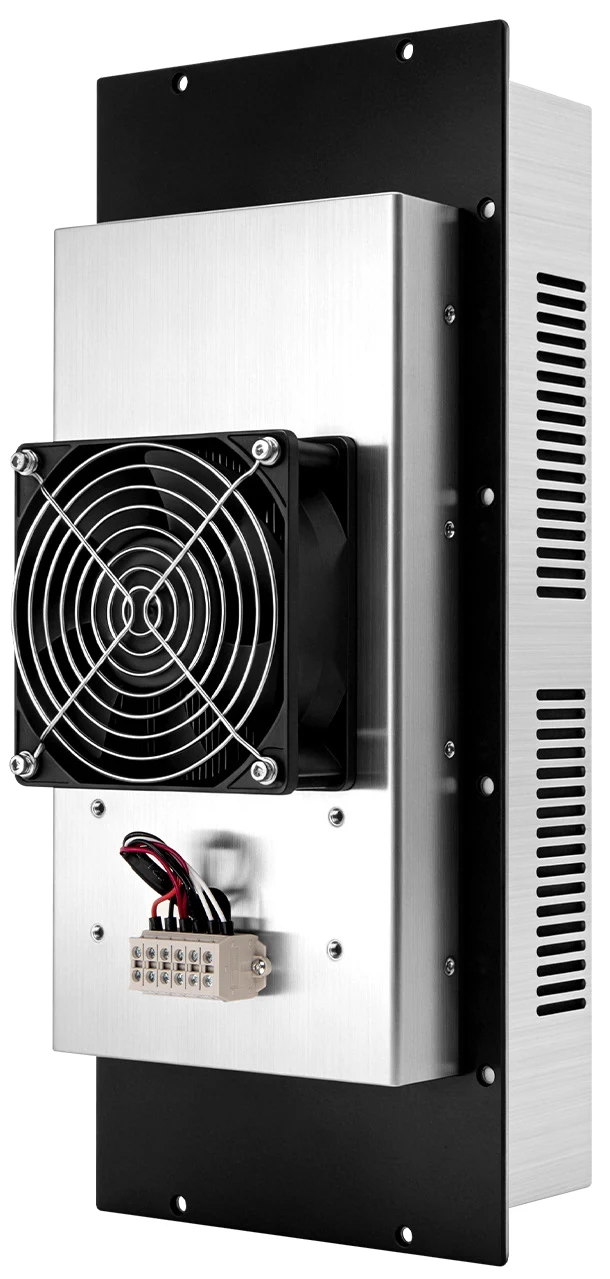

HETA-TS gallery
Select a thumbnail to enlarge. Confirm the exact model and supplied accessories when ordering.
TECHNICAL DATA / HETA-TS
Specifications & selection.
- Compare seven air-to-air thermoelectric coolers for enclosure temperature management. HETA-TS uses a through-wall configuration with enhanced protection for the external fan.
| Model | Listed cooling capacity | Listed power consumption | Rated DC supply | Rated current |
|---|---|---|---|---|
| HETA-101TS-075 | 75 W | 102 W | 12 VDC | 8.5 A |
| HETA-151TS-106 | 106 W | 144 W | 24 VDC | 6 A |
| HETA-102TS-150 | 150 W | 204 W | 24 VDC | 8.5 A |
| HETA-152TS-212 | 212 W | 288 W | 48 VDC | 6 A |
| HETA-153TS-300 | 300 W | 408 W | 48 VDC | 8.5 A |
| HETA-154TS-424 | 424 W | 576 W | 48 VDC | 12 A |
| HETA-156TS-600 | 600 W | 816 W | 48 VDC | 17 A |
Selection & installation notes
- Cooling capacities are brochure values; test temperatures and temperature difference are not specified on this selection page. Request performance at the actual operating conditions.
- Confirm the model-specific mounting cutout, wiring and scope of supply.
- Request the model-specific outline, mounting cutout and wiring information for your cabinet design.
Source: ENMG Cabinet Environment Systems product selection brochure, YZ26I20, page 23. View source document ↗
TECHNICAL RESOURCES
Plan your integration.
English product-family brochure YZ26I20 — HETA-TS on page 23
This is a product-family brochure. Request a model-specific datasheet and installation drawing with your inquiry.
Selection conditions
The listed cooling capacity and electrical input are different quantities. Confirm performance at your maximum ambient temperature and target enclosure temperature before selection.
Check the model-specific conditions before comparing cooling capacity.
Installation planning
Plan the cabinet opening
Obtain the outline, mounting cutout and wiring drawing for the exact model. Check available space on both sides of the enclosure before installation.
Keep the heat path clear
Follow the approved installation instructions for airflow and hot-side heat rejection. Confirm orientation and clearance for the cabinet layout.
Specify the complete assembly
Match the DC supply and controller to the selected cooler and application. Confirm wiring, accessories and the scope of supply in the quotation.
Application questions
Is cooling capacity the same as power consumption?
No. Cooling capacity describes heat removed from the enclosure; power consumption is electrical input. Select with both values and confirm performance at the actual operating temperatures.
What does TS mean?
TS identifies the HETA through-wall configuration with stainless-steel protection around the external hot-side fan. TS and TP differ in the fan positions relative to their protective covers; TP places both fans inside the covers. The configuration name does not by itself specify an IP rating or an overtemperature trip and reset function.
Are a power supply and temperature controller included?
The scope of supply is confirmed in the quotation. Specify the cooler, power supply and controller requirements separately when requesting a complete assembly.
What information is needed to select a model?
Provide the maximum ambient temperature, target enclosure temperature, estimated heat load, available DC supply and cabinet dimensions. Include the quantity and any space or installation constraints.
Can an ETC80 controller be used with this cooler?
The ETC80 family may be considered as an optional controller. Confirm the exact controller variant, voltage, output capability, wiring and supply scope for the selected cooler. A family reference does not establish compatibility or inclusion.
Source documents & versions
ENMG Cabinet Environment Systems product selection brochure · YZ26I20
Page 23 — HETA-TS selection table
